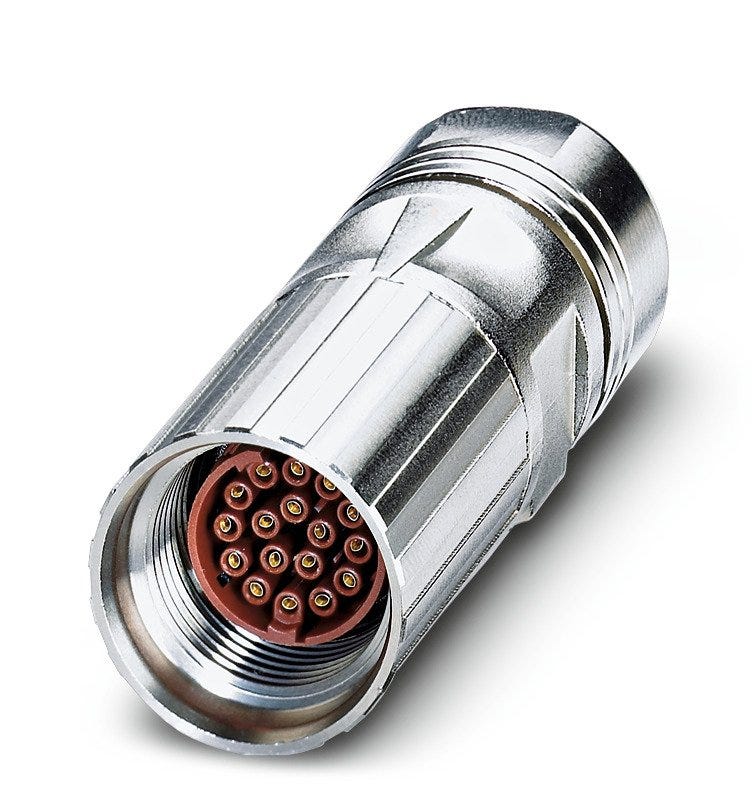

EPIC® SIGNAL M17 D6 8 M 3,5-11 (5)

Name: EPIC® SIGNAL M17 D6 8 M 3,5-11 (5)
Brand: LAPP
SKU: 44423102
Price: 1357984 VND
Availability: OutOfStock

Cable connector; M 17 signal; M 17; Pin; Number of contacts: 8; For cross-section (min./max.): 0.06mm² - 1mm²; Clamping range (min./max.): 3.5mm - 11mm

LAPPSKU: 44423102Article No.#: 44423102

EPIC® SIGNAL M17 D6 8 M 3,5-11 (5)

Cable connector; M 17 signal; M 17; Pin; Number of contacts: 8; For cross-section (min./max.): 0.06mm² - 1mm²; Clamping range (min./max.): 3.5mm - 11mm

EPIC® SIGNAL M17 D6 8 M 3,5-11 (5)

1.357.984₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

sensor/ ac, EMC protection

Applications

Feedback / signal cables

Technical Attributes

General Information

Brand	EPIC®
Contacts included
Product type	Cable connector
Scope of delivery	Order contacts separately
Delivery Unit	5.000
Weight	0.035 kg

Electrical Characteristics

Rated current	8 A according to IEC
Over voltage category	III
Rated impulse voltage	1.5 kV AC rms / DC according to IEC 61984
Rated voltage	74 V DC according to IEC, 48 V AC rms according to IEC

Product Design

Min. cable clamping range	3.5
Total length	45.55
Design connector housing	Straight
Connector format	M 17 signal
EMC screening
Stripping length of the sheathing	20
Colour	black
Housing colour	silver
Connectable conductor cross section min. (AWG)	28 AWG
Insert material, short form	PA
Max. connectable conductor cross-section AWG	18 AWG
Min. connectable conductor cross-section (mm2)	0.06
Number of contacts	8
Connector diameter	19
Housing coating	Nickel-plated
With protective conductor
Max. connectable conductor cross-section (mm2)	1
Housing coating, short form	Ni
Coded
Contact variant	Pin
Screen contact type	Terminal connection
Connector type	Plug
Conductor connection type	Crimp termination
Insert material	Polyamide
Housing base material	Zinc alloy
With thread
Housing base material, short form	Zn
Locking type	Turning Lock
Screen contact
Number of signal contacts	8
Max. cable clamping range	11
Sealing material, short form	FKM
Sealing material	Fluorinated rubber

Product Characteristics

Corrosion-resistant
Operating temperature min.	-40
Operating temperature max.	+125
Min. number of insertion cycles	100
Impact-resistant
Pollution degree	3
Vibration protection
IP protection class plugged in	IP 67
Halogenfree

Certifications and Standards

UR recognized
cUR recognized
CSA certified
Product standard according to IEC	IEC 61984
CE marked
VDE certified
EAC certification number	Отказное письмо № 39
EAC-certified	Not required

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

operation instruction - de-DE (PDF)

trcu declaration of conformity - ru-RU (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

All articles from EPIC® SIGNAL M17 D6

Article number	Connector type	Number of contacts	Max. connectable conductor cross-section AWG	Connectable conductor cross section min. (AWG)	Max. connectable conductor cross-section (mm2)	Min. connectable conductor cross-section (mm2)	Max. cable clamping range	Min. cable clamping range	Delivery Unit
44423100	Socket	8	18 AWG	28 AWG	1	0.06	3.5	3.5	5.000
44423101	Socket	17	20 AWG	28 AWG	0.5	0.06	11	11	5.000
44423102	Plug	8	18 AWG	28 AWG	1	0.06	11	3.5	5.000
44423103	Plug	17	20 AWG	28 AWG	0.5	0.06	11	3.5	5.000
