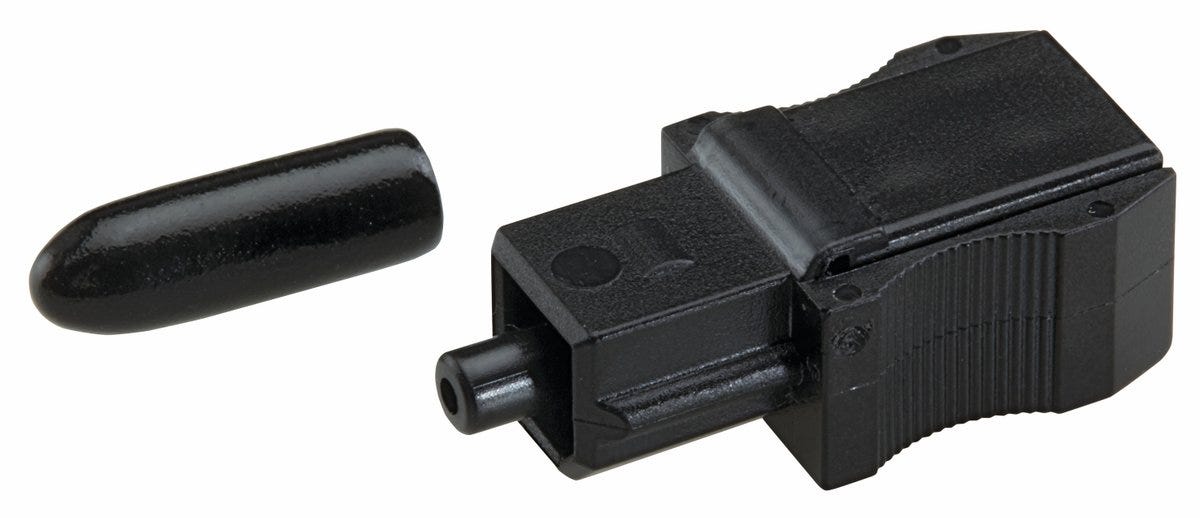

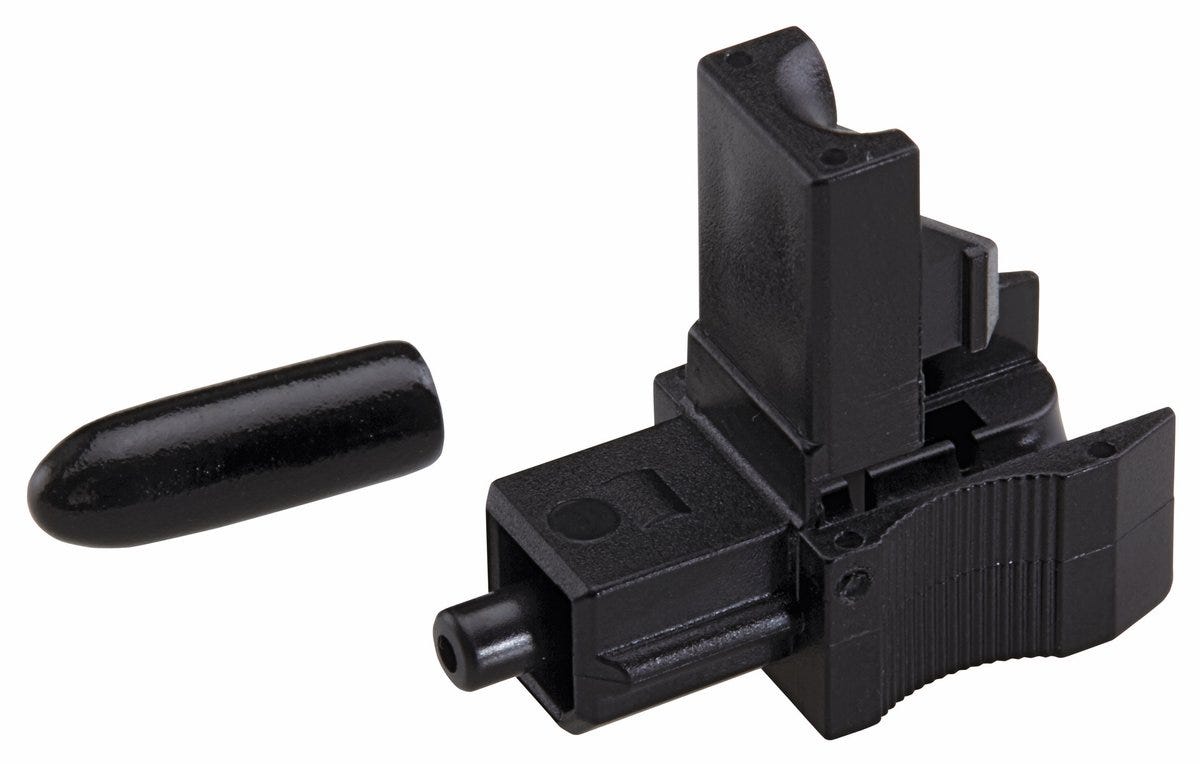

POF CONNECTOR F05 SIMPLEX /50PC

Name: POF CONNECTOR F05 SIMPLEX /50PC
Brand: LAPP
SKU: 29150098
Price: 79522 VND
Availability: OutOfStock

Fibre optic connector; F05; Plug; Straight; Simplex; Suitable fibre width: 1000; clip on; Clamping range (min./max.): 2.2 - 2.2 mm

LAPPSKU: 29150098Article No.#: 29150098

Fibre optic connector; F05; Plug; Straight; Simplex; Suitable fibre width: 1000; clip on; Clamping range (min./max.): 2.2 - 2.2 mm

79.522₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

Easy to assemble

Applications

Digital audio, Factory automation, Office Automation (Smart House)

Technical Attributes

General Information

Electrical Characteristics

Product Design

Assembly type	Field configurable
Connector housing angle	180
Total length	21.3
Design connector housing	Straight
Strain relief due to	Clamp lever
For max. cable outer diameter	2.2
Connector type	Plug
Type of plug connection	F05
Dust protection cap colour	black
Polishing process	with polishing wheel
Direct mounting possible
Bend protection boot
Stripping length of the sheathing	7
Connector colour	black
Overall width	10
Housing base material	Polyphenylene ether
Dust protection cap
Housing base material, short form	PPE
Variant of connector	Simplex
Total height	6.5
Suitable type of optical fibre	Multi-mode fibre
Ferrule material, short form	PPE
Ferrule material	Polyphenylene ether
Suitable fibre width	1000
For min. cable outer diameter	2.2
Ferrule diameter	2.5

Product Characteristics

Certifications and Standards

EAC certification number	Отказное письмо № 481
EAC-certified	Not required

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
