EPIC® POWER LS1 A6 3+PE+4 K TWIST

Name: EPIC® POWER LS1 A6 3+PE+4 K TWIST
Brand: LAPP
SKU: 24441292
Price: 1621012 VND
Availability: OutOfStock

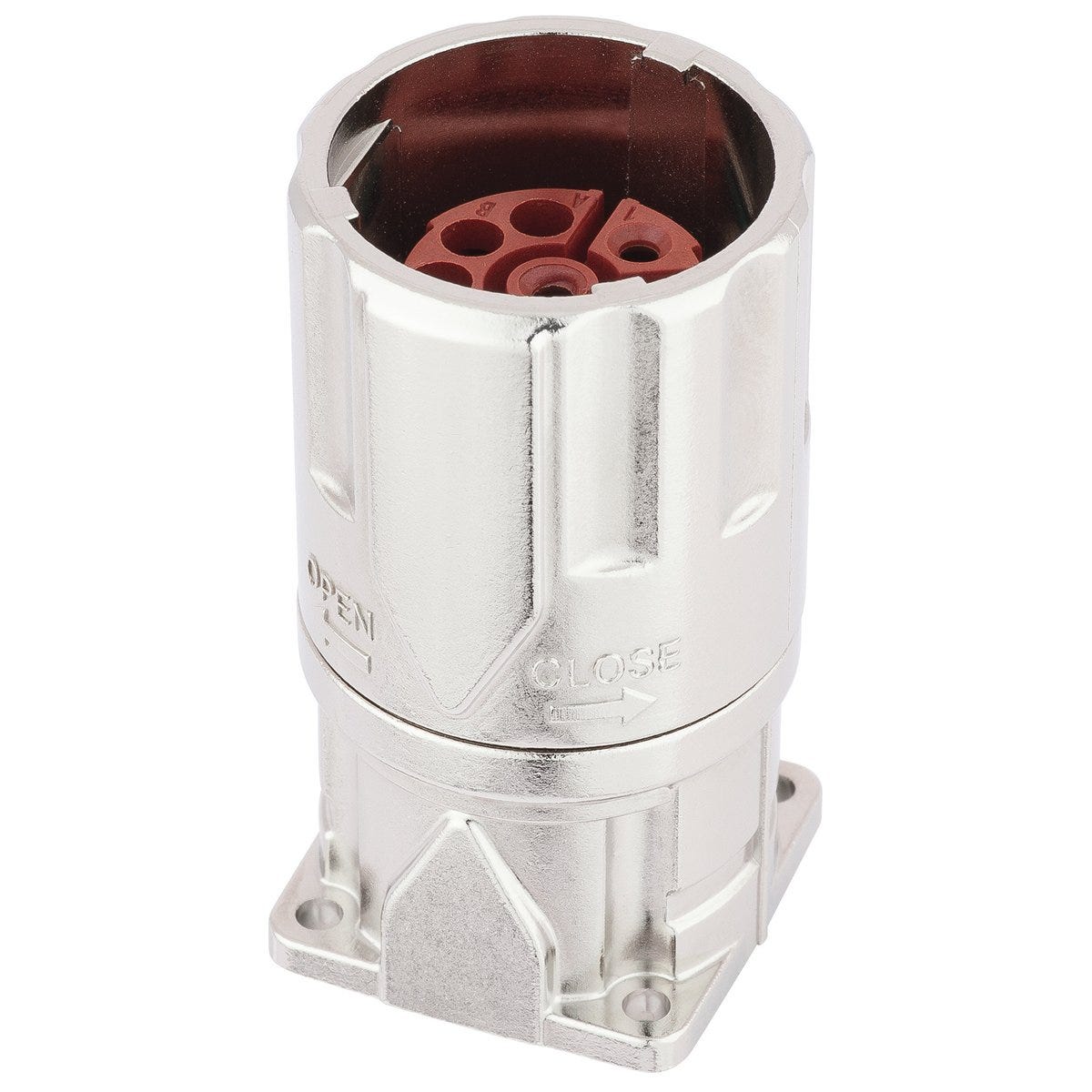

Round housing; M 23 power; Socket; Number of contacts: 3+PE+4;

LAPPSKU: 24441292Article No.#: 24441292

Round housing; M 23 power; Socket; Number of contacts: 3+PE+4;

1.621.012₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Locking 70% faster, EMC-optimised design, Safety use in field environment by high protection class

Applications

Plant engineering, Servo drives and servo assemblies, Not pluggable with standard EPIC POWER LS1 counterparts type A1,A3,F6,F7,G4,G6

Technical Attributes

General Information

Electrical Characteristics

Rated impulse voltage signal contact	4 kV AC rms / DC according to IEC 61984 to 4
Rated surge voltage power contact	6 kV AC rms / DC according to IEC 61984 to 3
Rated current signal contact	7 A according to UL, 7 A according to CSA, 7 A according to IEC
Over voltage category	III
Rated current power contact	26 A according to UL, 26 A according to CSA, 26 A according to IEC
Rated voltage power contact	630 V AC rms / DC according to IEC to 3, 600 V AC rms / DC according to UL to 3, 600 V AC rms / DC according to CSA to 3
Rated voltage signal contact	250 V AC rms / DC according to IEC to 4, 250 V AC rms / DC according to UL to 4, 250 V AC rms / DC according to CSA to 4

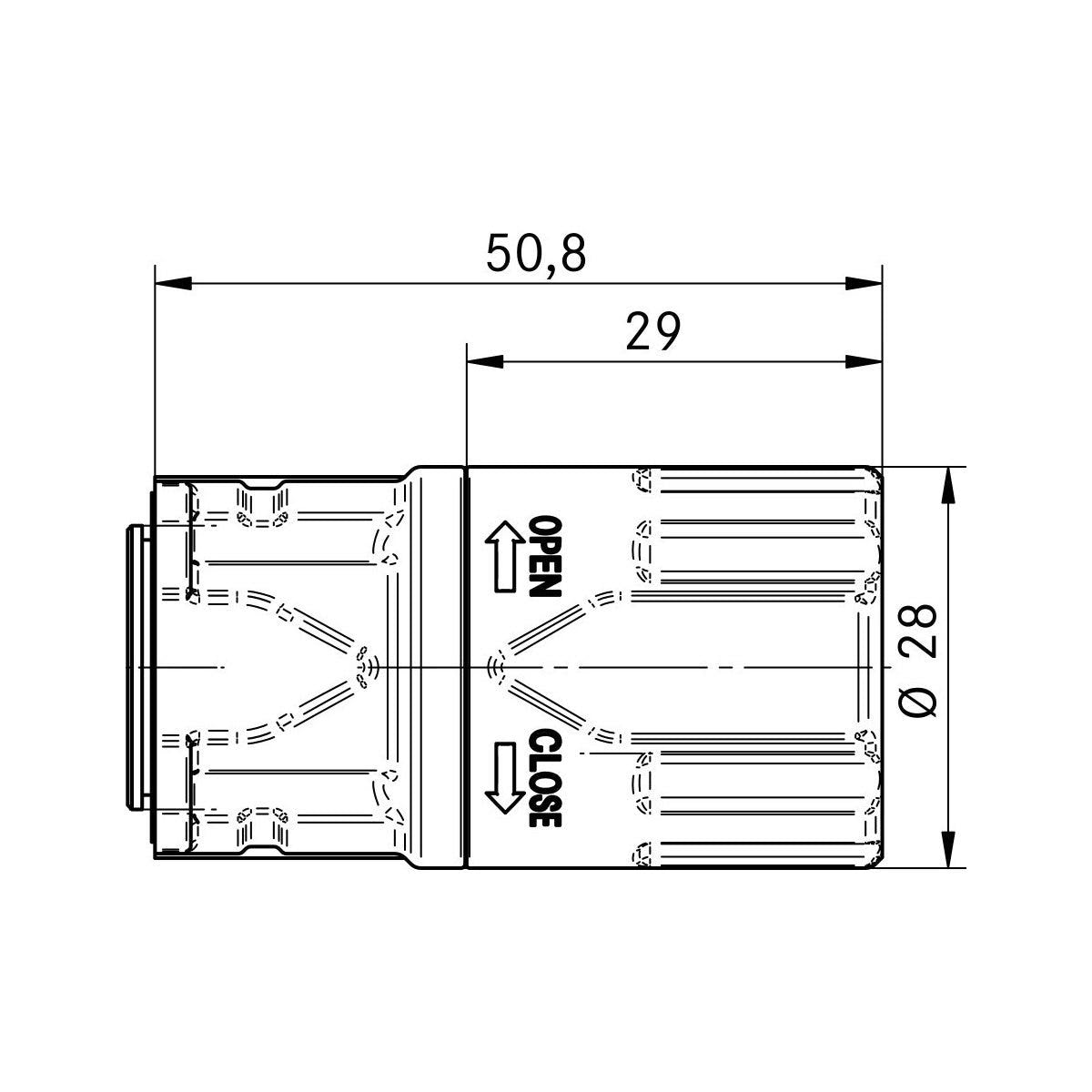

Product Design

Total length	28
Design connector housing	Straight
Connector format	M 23 power
Max. connectable conductor cross-section of power contacts (mm2)	2.5
EMC screening
Overall width	28
Housing colour	silver
Connectable conductor cross section min. (AWG)	26 AWG
Max. connectable conductor cross-section AWG	14 AWG
Number of contacts	3+PE+4
Min. connectable conductor cross-section of signal contacts (mm2)	0.14
Total height	50.7
Stripping length, signal contact	7 mm
Housing coating	Nickel-plated
Contact material	Brass
Stripping length, performance contact	8 mm
With protective conductor
Housing coating, short form	Ni
Contact material, short form	CuZn
Material contact surface	Gold-plated
Seal type	Sealing ring
Coded
Contact insert material, short form	PA
PE connection type	Crimp termination
Contact variant	Socket
Contact coating material, short form	Au
Connector type	Socket
Material contact insert	Polyamide
Number of PE contacts	1
Min. connectable conductor cross-section of power contacts (mm2)	0.5
Conductor connection type	Crimp termination
Housing base material	Zinc alloy
With thread
Stripping length of PE connection	8
Max. connectable conductor cross-section of signal contacts (mm2)	1
Locking type	TWIST
First make, last break PE contact
Screen contact
Number of signal contacts	4
Sealing material, short form	FKM
Sealing material	Fluorinated rubber
Number of power contacts	3

Product Characteristics

Corrosion-resistant
Operating temperature min.	-25
Operating temperature max.	125
Min. number of insertion cycles	500
Operating temperature min. static (no plugging or unplugging)	-40
Impact-resistant
Pollution degree	3
Vibration protection
IP protection class plugged in	IP 68 - 1m (10h)
Corrosion-resistant according to	DIN EN 60068-2-60, Ke 4
Protection class (IP), mounted	IP 2X
Halogenfree

Certifications and Standards

UR recognized
cUR recognized
CSA certified
cUR category control number	CYJV8
UL category control number	CYJV2
Product standard according to IEC	IEC 61984
VDE registration number	B25
CE marked
VDE certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
