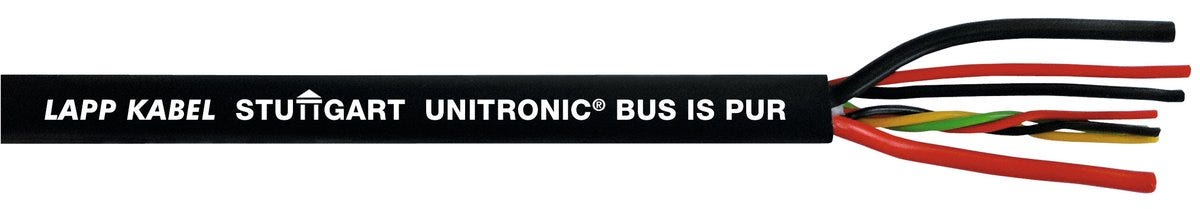

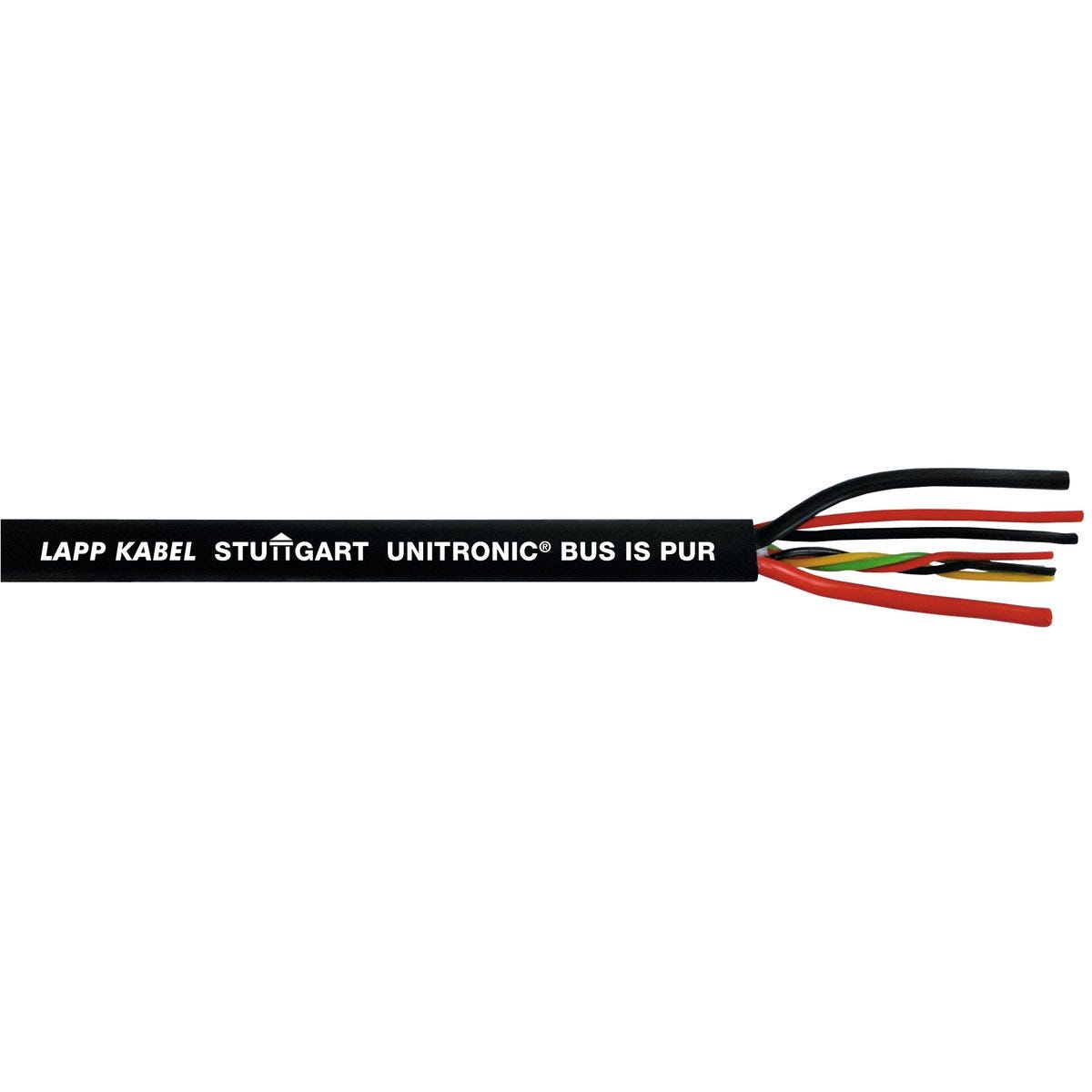

UNITRONIC® BUS IS PUR 2x6+2x2,5+1x4x0,5

Name: UNITRONIC® BUS IS PUR 2x6+2x2,5+1x4x0,5
Brand: LAPP
SKU: 2170561
Price: 625875 VND
Availability: OutOfStock

Bus cable; ISOBUS; Fixed installation; Nominal surge impedance: 75; 2X6+2X2.5+1X4X0.5; PUR; Halogenfree; black

LAPPSKU: 2170561Article No.#: 2170561

Bus cable; ISOBUS; Fixed installation; Nominal surge impedance: 75; 2X6+2X2.5+1X4X0.5; PUR; Halogenfree; black

625.875₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Cable according ISOBUS standard (ISO 11783-2) for use in agricultural vehicles

HYBRID: cable for data transmission + power supply

Applications

Connection cable between tractor and pulled machinery, For outdoor applications

Technical Attributes

General Information

Brand	UNITRONIC®
Product type	Bus cable
valid fieldbus or Ethernet system	ISOBUS
Copper index	182.400 kg/km
Copper index (lb)	1225.500 lb
Weight	312 kg/km

Electrical Characteristics

Maximum operating voltage (not for power transmission)	60
Nominal surge impedance	75

Product Design

Conductor design	fine-wire
Nominal outer diameter	15.6 mm
Conductor material	Bare copper
Nominal conductor cross-section (metric)	6 mm²

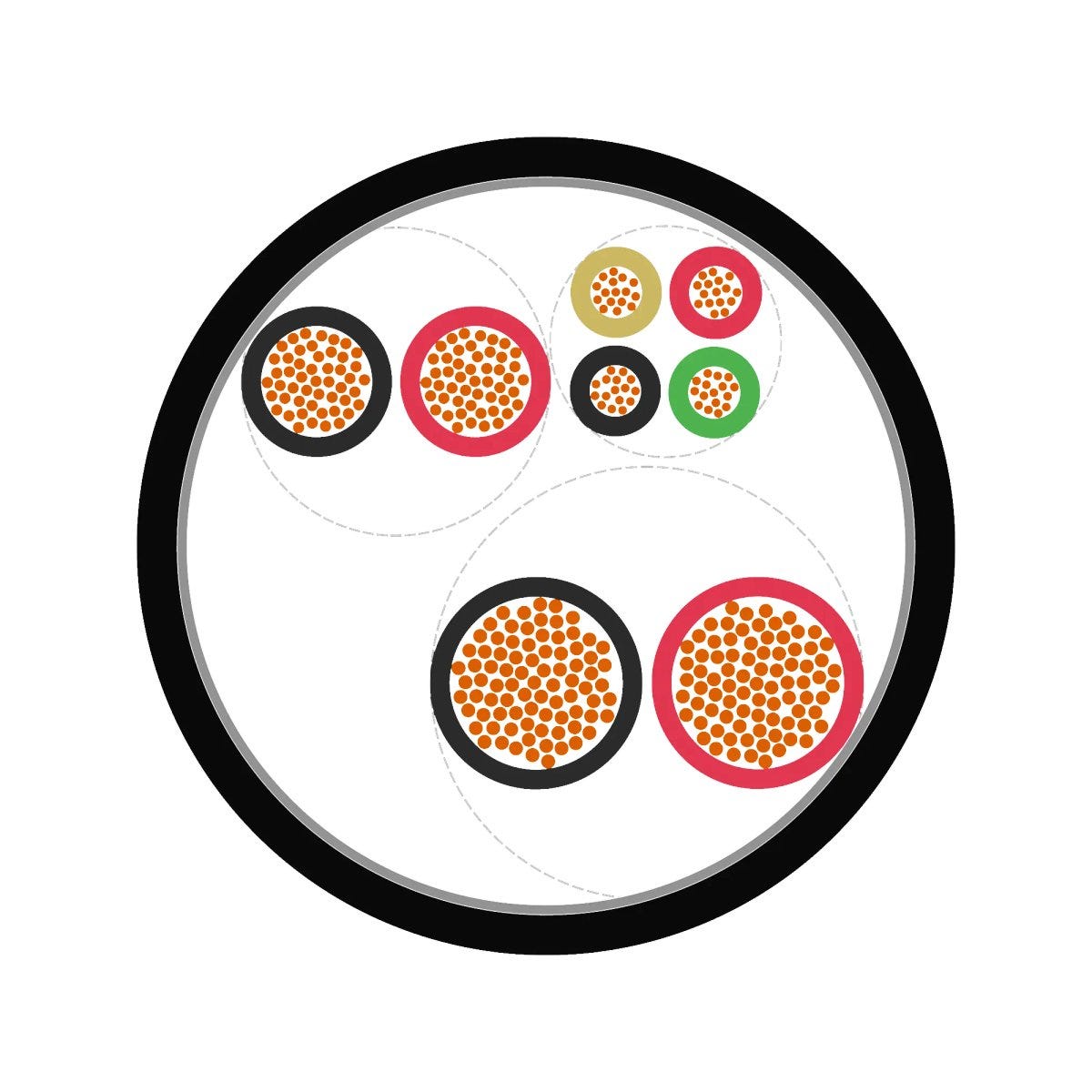

Conductor count/size	2X6+2X2.5+1X4X0.5
Wrapping over stranding	Fleece wrapping
Shielded
Core identification	Colours
Cable element 3	Power core: 4x0.5
Shape of cable	Round
Outer sheath colour	black
Leading conductor cross-section	mm²
Cable sheath RAL colour	RAL 9005
With rodent protection
Cable element 1	Power core: 2X6
Number of cores	8
Core insulation basic material	Polyvinylchloride
Basic material of outer sheath	Polyurethane
Including protective earth
Core insulation basic material, short form	PVC
Cable element 2	Power core: 2x2.5
Basic material of outer sheath, short form	PUR

Product Characteristics

Flame-retardant
For continuous flexing
Fast Connect (FC) cable
UV-resistant
Minimum bending radius in mm, fixed installation	156.0 mm
Application area	Fixed installation
max. conductor temperature, occasionally moved	-5 °C to 50 °C max. conductor temperature:
Oil-resistant
MUD resistance according to	IEC 61892-4
Minimum bending radius in mm, occasionally flexing	234.0 mm
Minimum bending radius, stationary	10 x outer diameter
Minimum bending radius, occasionally flexing	15 x outer diameter
Temperature, fixed installation	-40 °C to 85 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2
UV-resistant according to	UL sunlight resistant
Halogenfree

Certifications and Standards

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
