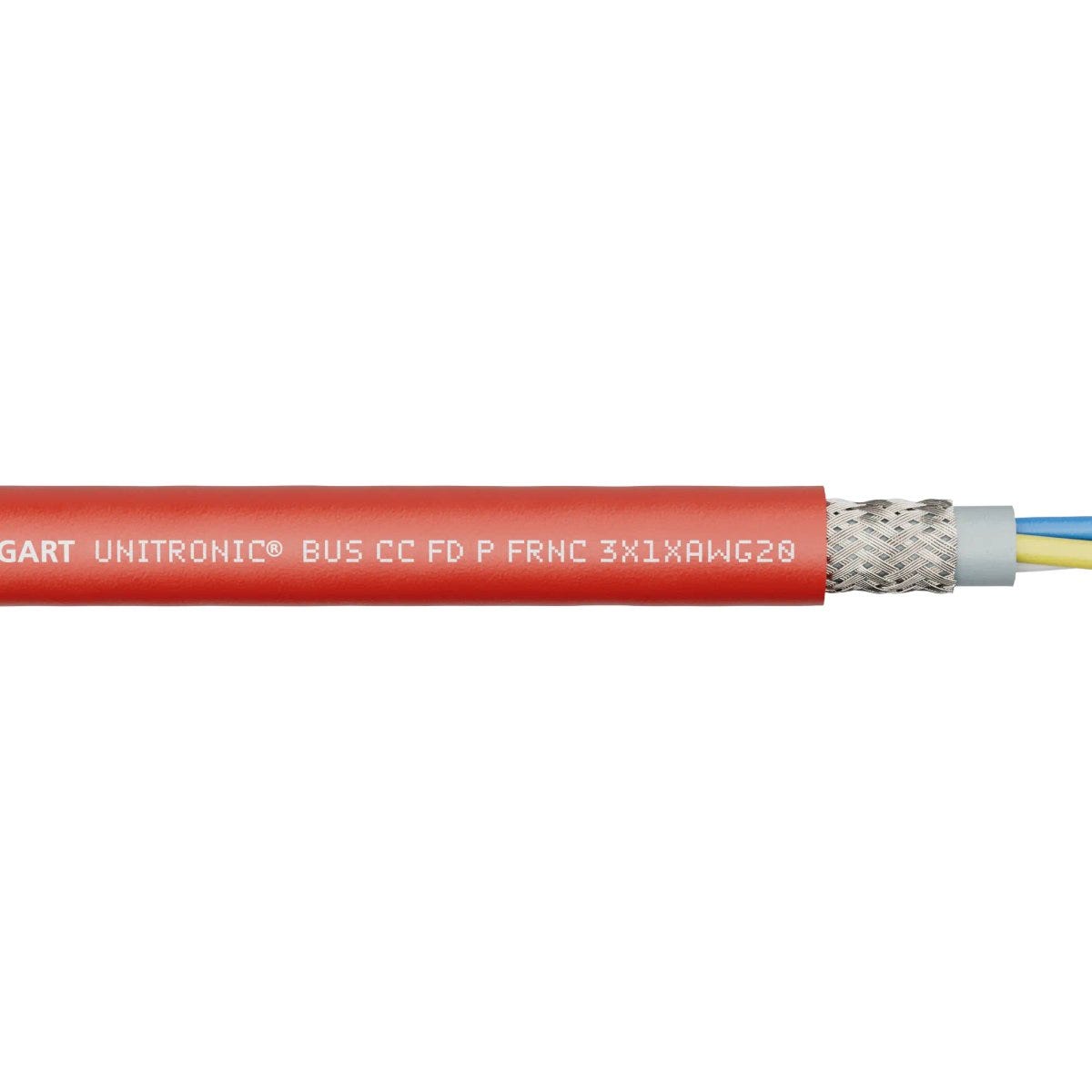

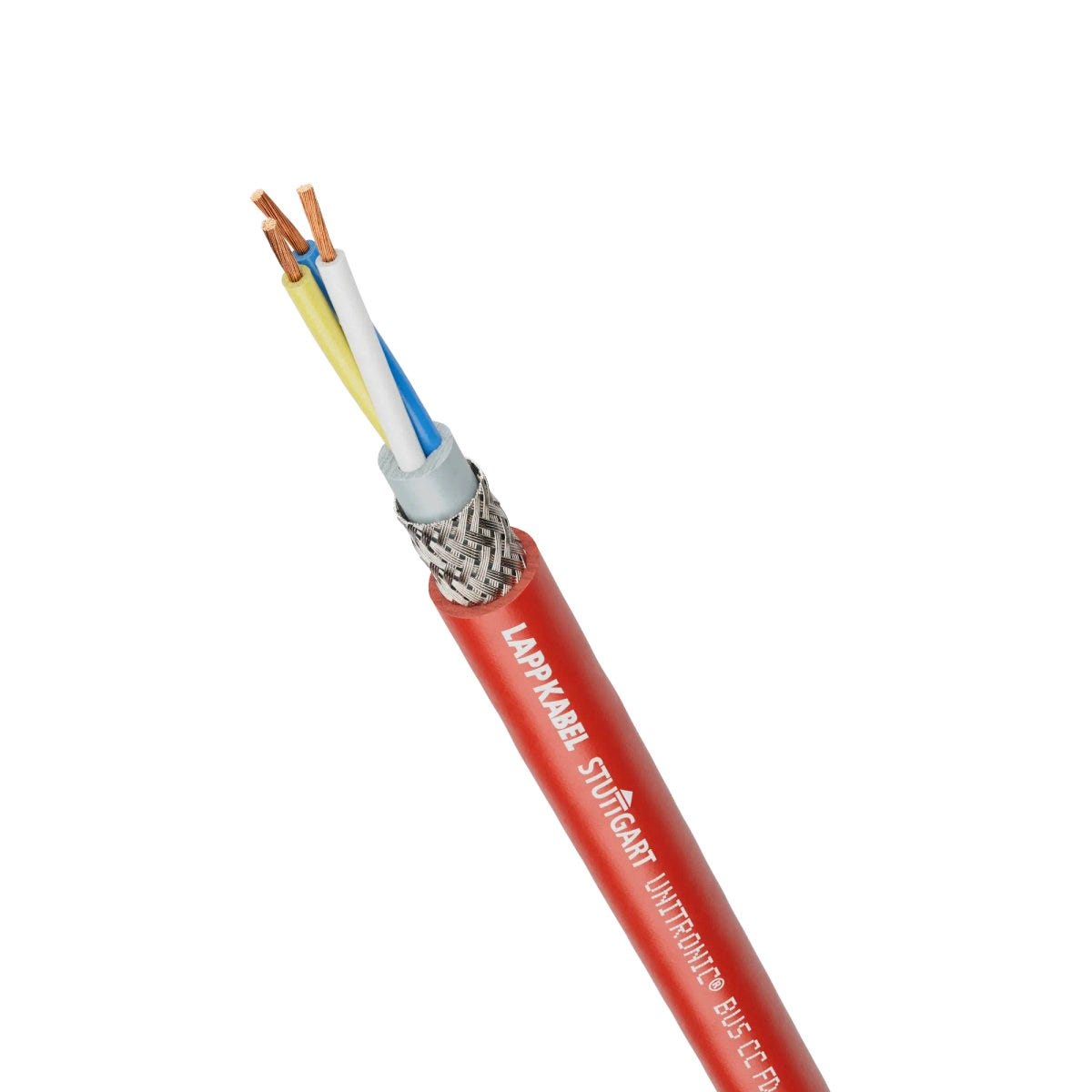

UNITRONIC® BUS CC FD P FRNC 3x1xAWG20

Name: UNITRONIC® BUS CC FD P FRNC 3x1xAWG20
Brand: LAPP
SKU: 2170370
Price: 248956 VND
Availability: OutOfStock

Bus cable; CC-Link; Cable chain; Nominal surge impedance: 110; PUR; red; cUL listed

LAPPSKU: 2170370Article No.#: 2170370

UNITRONIC® BUS CC FD P FRNC 3x1xAWG20

Bus cable; CC-Link; Cable chain; Nominal surge impedance: 110; PUR; red; cUL listed

UNITRONIC® BUS CC FD P FRNC 3x1xAWG20

248.956₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

The CC-Link® system was developed by Mitsubishi Electric Automation, Japan.

Applications

CC-Link® (Control & Communication Link) = field bus network, for both control as well as information data to provide efficient, integrated factory and process automation

For highly flexible applications (power chains, moving machine parts)

Technical Attributes

General Information

Brand	UNITRONIC®
Product type	Bus cable
valid fieldbus or Ethernet system	CC-Link
Copper index	39.900 kg/km
Copper index (lb)	268.100 lb
Weight	84 kg/km

Electrical Characteristics

Nominal surge impedance	110
Test voltage	2 kV

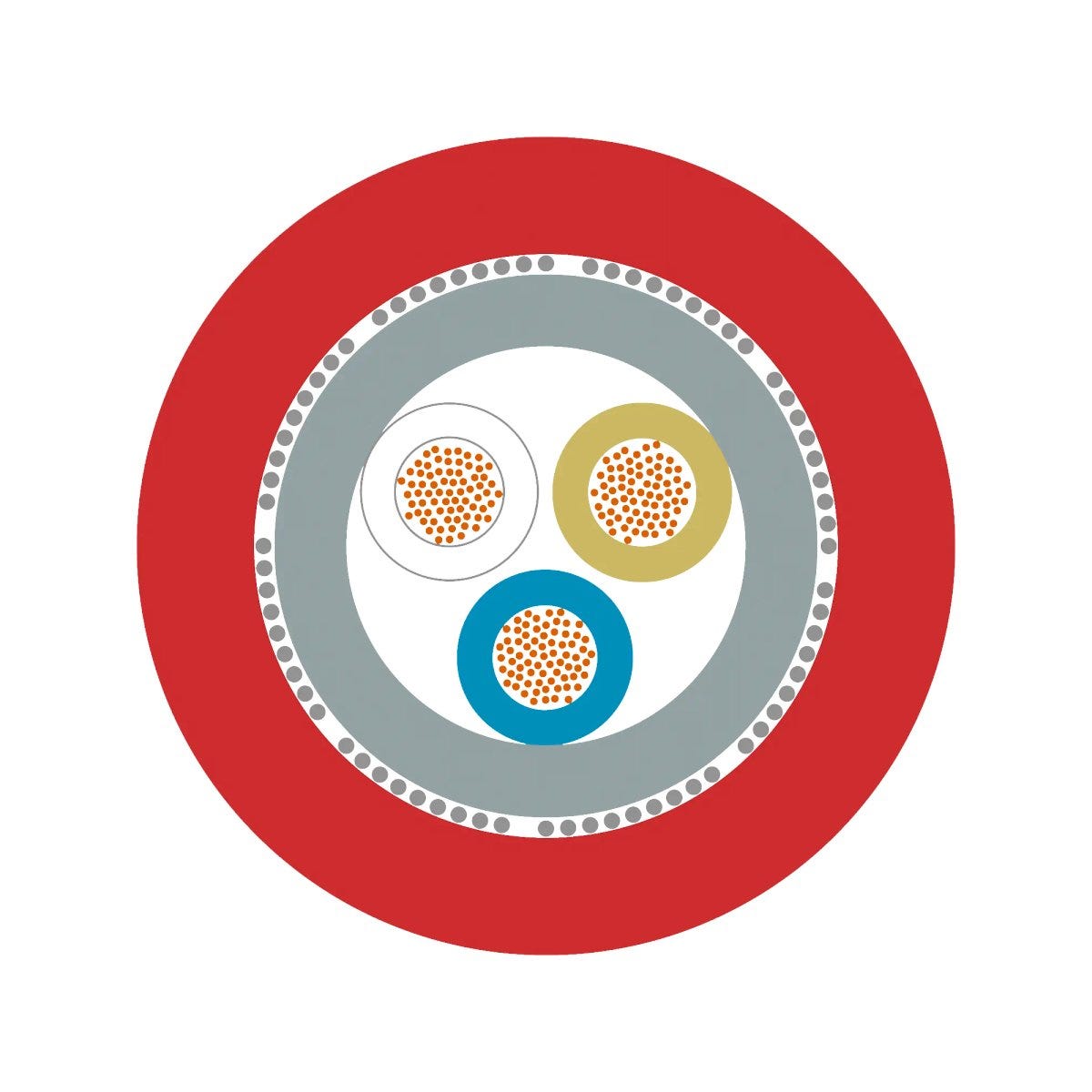

Product Design

Nominal outer diameter	8.5 mm
Conductor material	Bare copper
Cable dimension	3X20 AWG
Optical degree of coverage of the stranded screening, overall screen	90
Shielded
Nominal conductor diameter (mm)	1.0
Core identification	Colours
Shape of cable	Round
Outer sheath colour	red
Stranding type	Bundle stranding
Leading conductor cross-section	AWG
Cable sheath RAL colour	RAL 3000
Type of overall screen	Tin-plated copper braiding
Number of cores	3
Nominal conductor cross-section (AWG)	20 AWG
Core insulation basic material	Polyethylene
Basic material of outer sheath	Polyurethane
Including protective earth
Core insulation basic material, short form	PE
Basic material of outer sheath, short form	PUR

Product Characteristics

Flame-retardant
PWIS-free according to	VDMA 24364-B2-L
For continuous flexing
Fast Connect (FC) cable
Minimum bending radius in mm, dynamic continuously flexing	68.0 mm
UV-resistant
Minimum bending radius in mm, fixed installation	34.0 mm
PWIS-free
Application area	Cable chain
Oil-resistant
Minimum bending radius in mm, occasionally flexing	68.0 mm
Minimum bending radius, stationary	4 x outer diameter
Minimum bending radius, occasionally flexing	8 x outer diameter
Temperature, fixed installation	-40 °C to 80 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2
Minimum bending radius, dynamic continuously flexing	8 x outer diameter
For torsional load
Halogenfree

Certifications and Standards

cUR recognized
CSA certified
cUL listed
UL listed
CE marked
UL recognized
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20
EAC-certified

Documentation

Downloads

Approval UL - en-UK (PDF)

CE declaration of conformity - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

trcu declaration of conformity - ru-RU (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
CC-Link® is a registered trademark of CC-Link Partner Association, Japan (CLPA).
