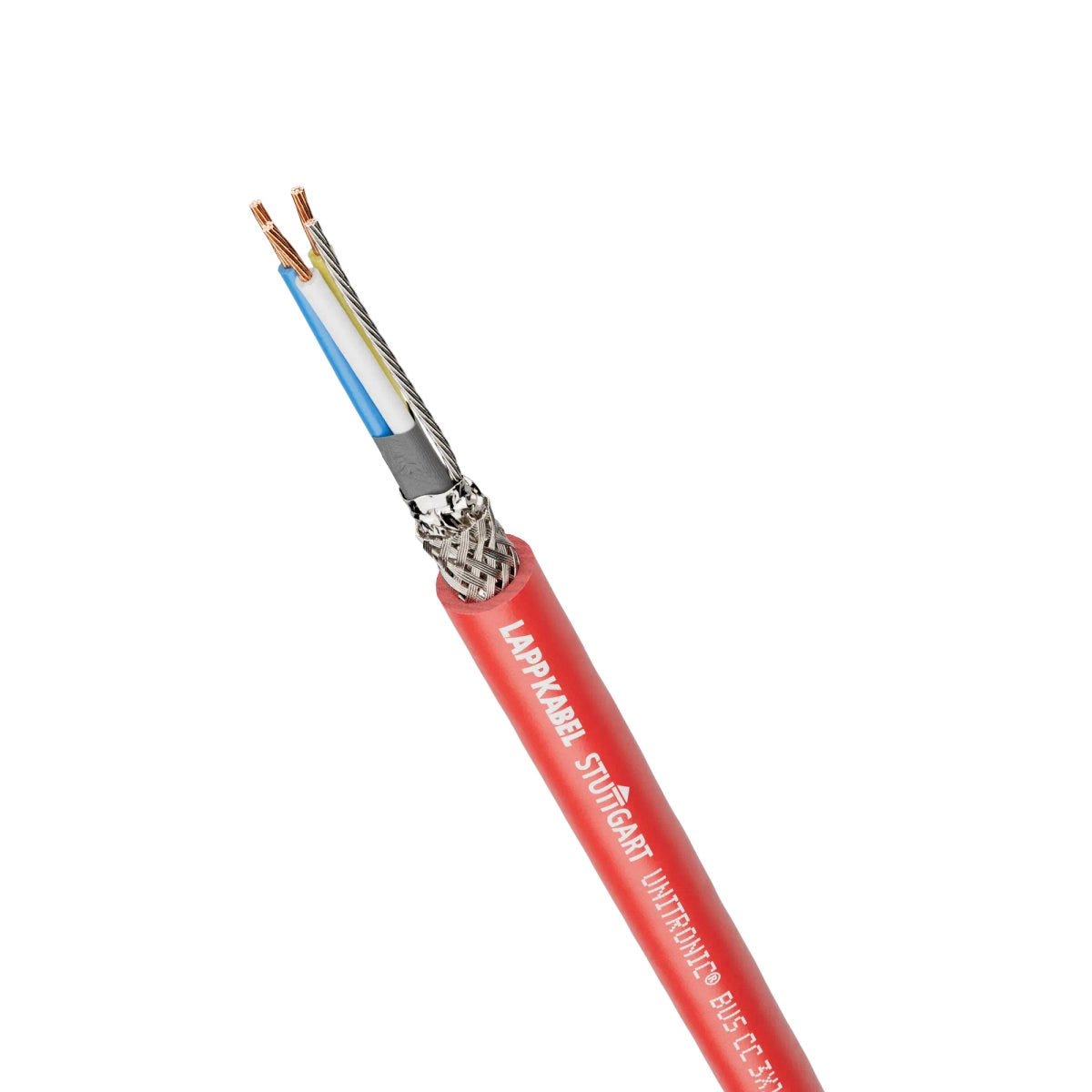

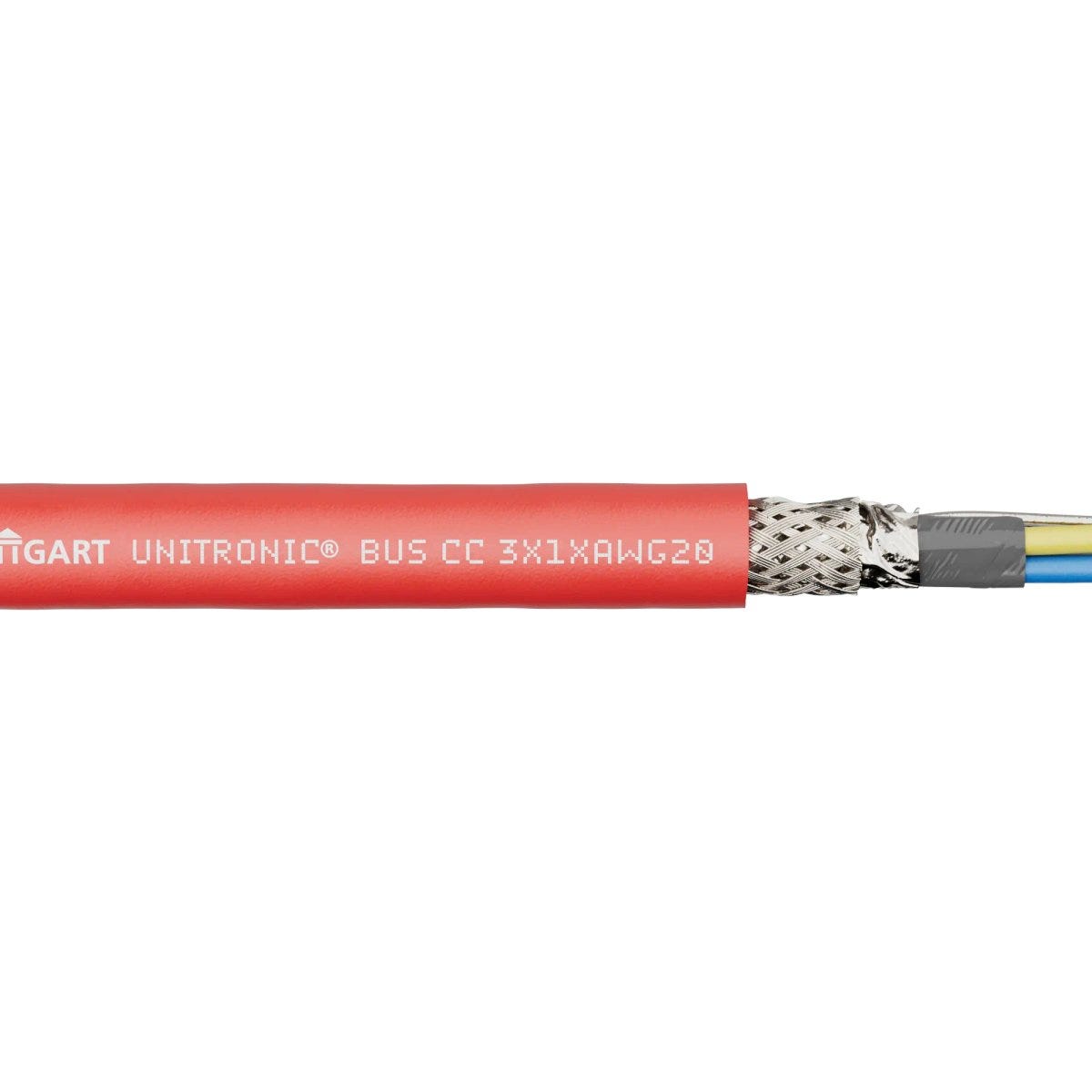

UNITRONIC® BUS CC 3X1XAWG20
Bus cable; CC-Link; Fixed Installation; Nominal characteristic impedance: 110; PVC; red; cUL listed
UNITRONIC® BUS CC 3X1XAWG20
150.081₫
/
UNITRONIC® BUS CC 3X1XAWG20
150.081₫
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
flame-retardant
uv-resistant.
icon sturgeon signal
Certificate
CE marked
cUL listed US, UL listed US
CLPA Open Automation Network certification
Benefits
The CC-Link® system was developed by Mitsubishi Electric Automation, Japan
This CC-Link® bus cable has successfully passed the CC-Link® Conformance Test in Japan.
Applications
CC-Link® (Control & Communication Link) = field bus network, for both control as well as information data to provide efficient, integrated factory and process automation
Fixed installation of the CC-Link® network
Technical Attributes
General Information
| Brand | UNITRONIC® |
| Product type | Bus cable |
| valid fieldbus or Ethernet system | CC-Link |
| Copper index | 38.800 kg/km |
| Copper index (lb) | 260.700 lb |
| Weight | 77 kg/km |
Electrical Characteristics
| Nominal surge impedance | 110 |
| Test voltage | 2 kV |

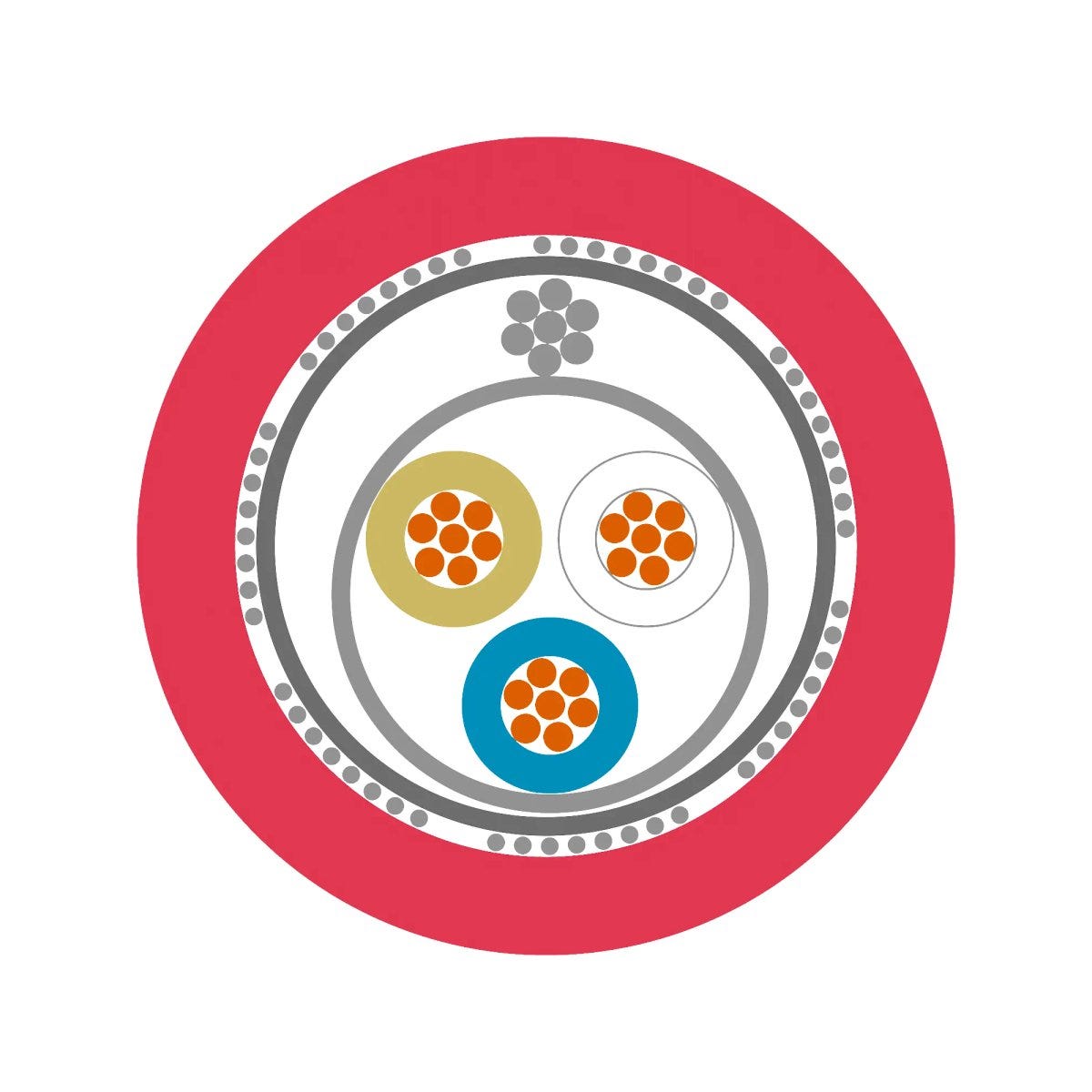

Product Design
| Conductor design | 7-wire |
| Nominal outer diameter | 7.7 mm |
| Conductor material | Bare copper |
| Cable dimension | 3X20 AWG |
| Shielded |
|
| Core identification | Colours |
| Shape of cable | Round |
| Outer sheath colour | red |
| Stranding type | Bundle stranding |
| Leading conductor cross-section | AWG |
| Type of overall screen | Tin-plated copper braiding |
| Number of cores | 3 |
| Nominal conductor cross-section (AWG) | 20 AWG |
| Core insulation basic material | Polyethylene |
| Basic material of outer sheath | Polyvinylchloride |
| Including protective earth |
|
| Core insulation basic material, short form | PE |
| Number of wires | 7 |
| Basic material of outer sheath, short form | PVC |
Product Characteristics
| Flame-retardant |
|
| PWIS-free according to | VDMA 24364-B2-L |
| For continuous flexing |
|
| Fast Connect (FC) cable |
|
| UV-resistant |
|
| Minimum bending radius in mm, fixed installation | 38.5 mm |
| PWIS-free |
|
| Application area | Fixed installation |
| Oil-resistant |
|
| Minimum bending radius in mm, occasionally flexing | 61.6 mm |
| Minimum bending radius, stationary | 5 x outer diameter |
| Minimum bending radius, occasionally flexing | 8 x outer diameter |
| Temperature, fixed installation | -40 °C to 70 °C max. conductor temperature: |
| Flame retardance according to | CSA FT4 |
| UV-resistant according to | UL sunlight resistant |
| For torsional load |
|
| Halogenfree |
|
Certifications and Standards
| cUR recognized |
|
| CSA certified |
|
| cUL listed |
|
| UL listed |
|
| CE marked |
|
| UL recognized |
|
| VDE certified |
|
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| EAC-certified |
|
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- CC-Link® is a registered trademark of CC-Link Partner Association, Japan (CLPA).
Product Family List
All articles from UNITRONIC® BUS CC
| Article number | Cable dimension | Imp outer dia cable sheath nom | Nominal outer diameter | Copper index calc export | Weight |
|---|---|---|---|---|---|
| 2170360 | 3X20 AWG | 7.7 | 77 kg/km |
