EPIC H-A 3 TG M20 BK

Name: EPIC H-A 3 TG M20 BK
Brand: LAPP
SKU: 19425500
Price: 48941 VND
Availability: OutOfStock

Hood; Design size: 3A; Connector design: Standard; Single lever; Number of cable entries: 1; Polyamide, Uncoated; IP protection rating mounted: IP 65

LAPPSKU: 19425500Article No.#: 19425500

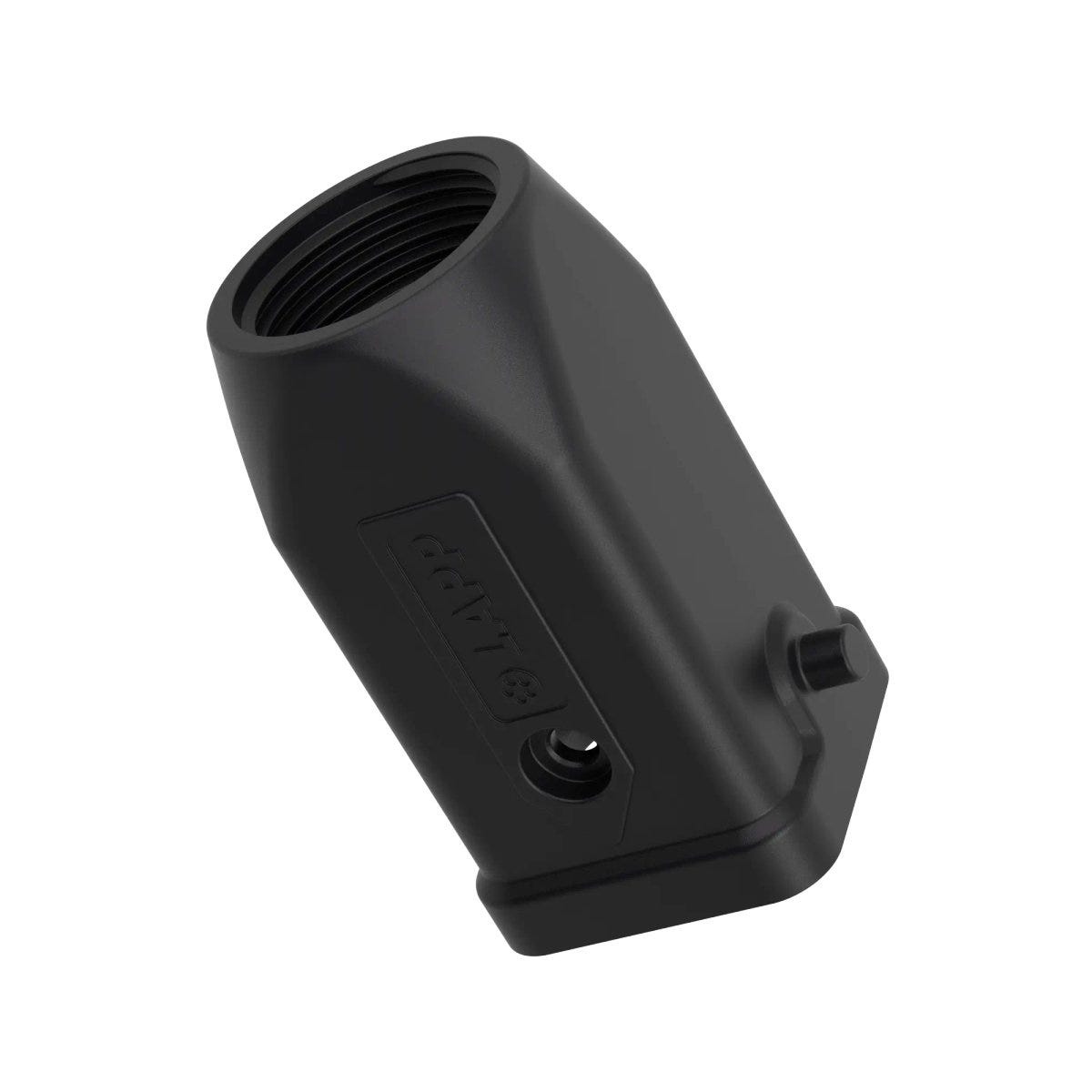

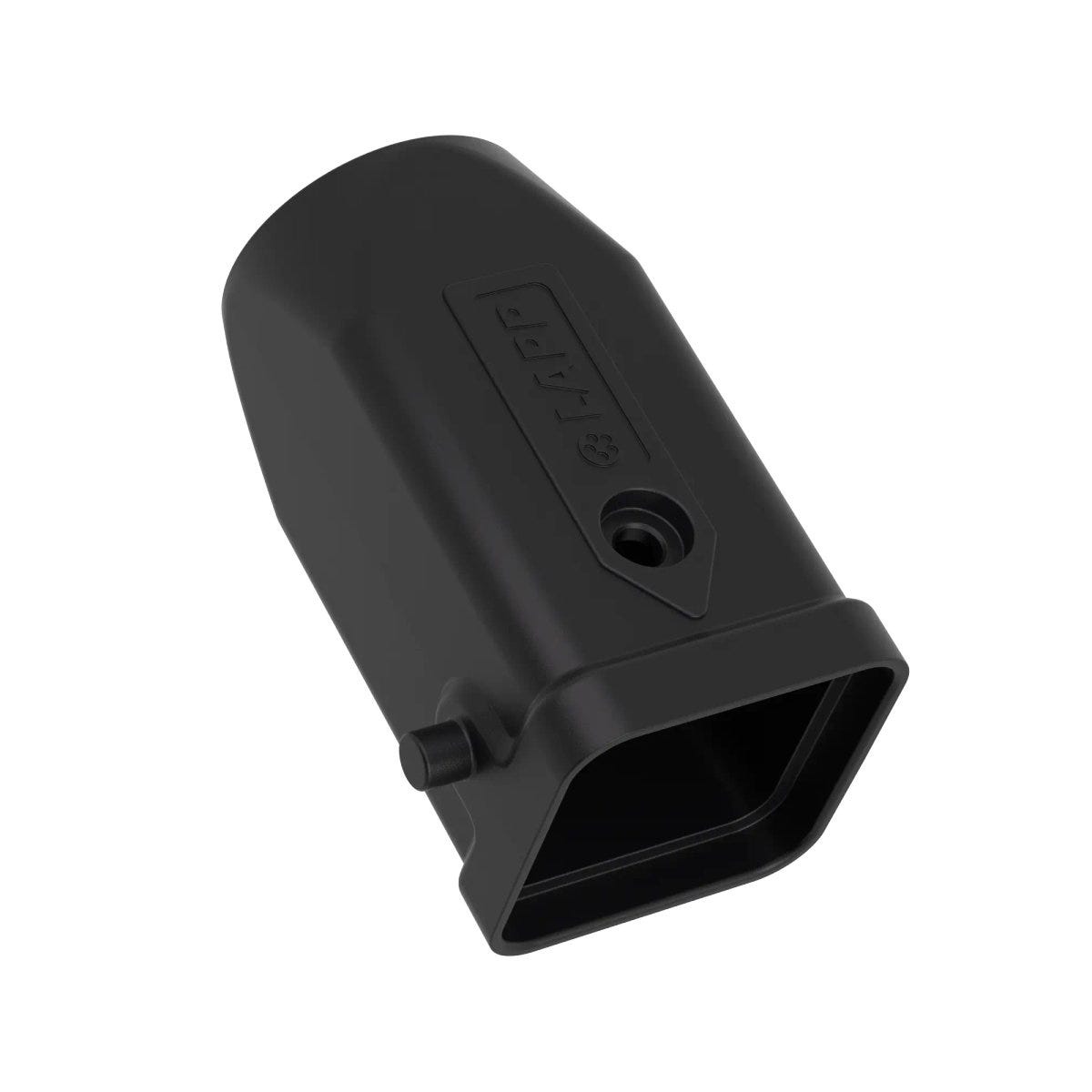

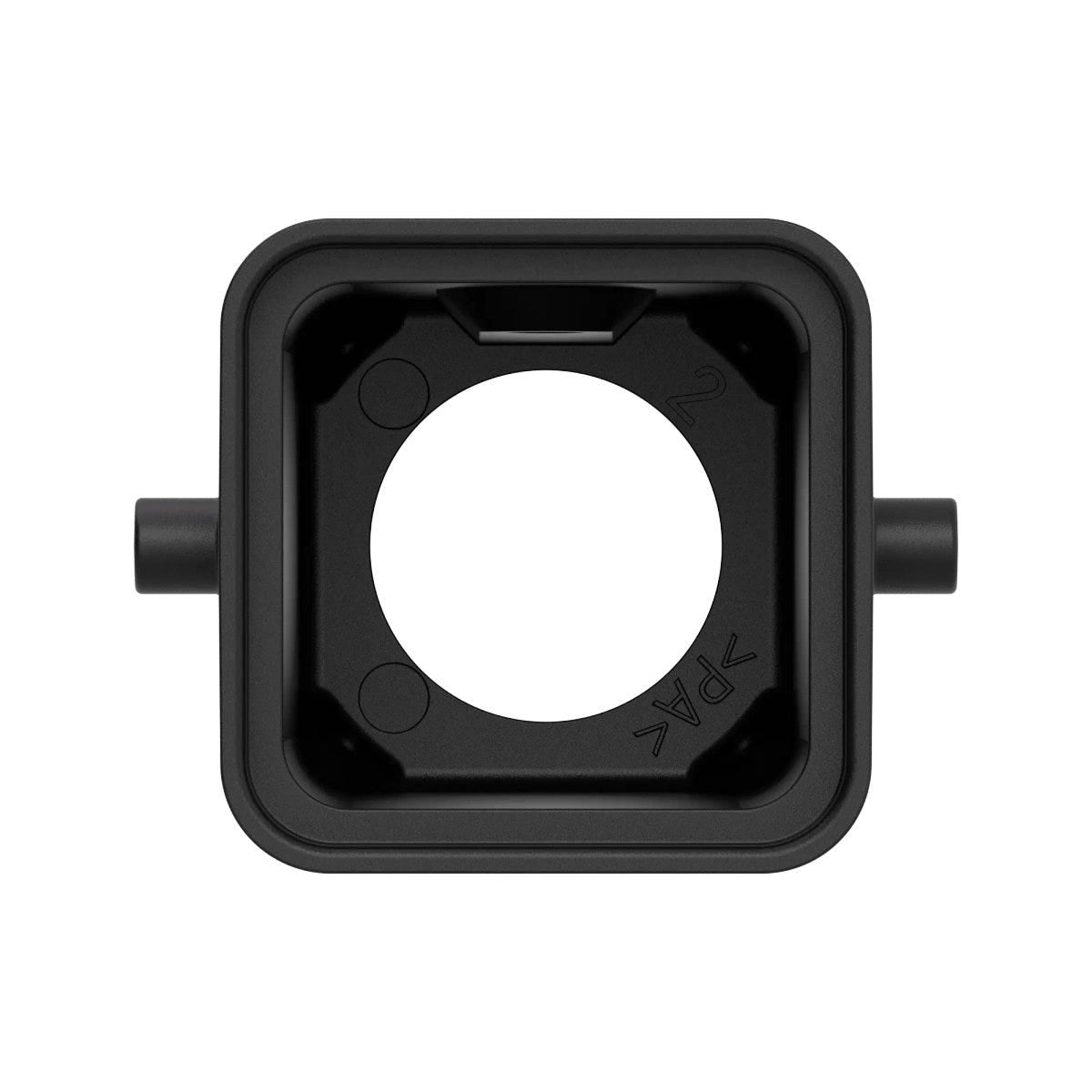

EPIC H-A 3 TG M20 BK

Hood; Design size: 3A; Connector design: Standard; Single lever; Number of cable entries: 1; Polyamide, Uncoated; IP protection rating mounted: IP 65

EPIC H-A 3 TG M20 BK

48.941₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

The EPIC® H-A 3 series comprises the smallest housings in the rectangular connector range and ensures secure connections in the smallest of spaces

The hood can be connected with many standard housings (mount base, surface-mount base or cable coupler housings)

Self-extinguishing in accordance with UL94 V-0 (flammability test for plastics)

With threaded borehole for use with a corresponding cable gland

Articles with a "V" in the article name already contain a SKINTOP® plastic cable gland for sealing and strain-relieving cable entry. In comparison to housings where the cable gland is added separately, the overall size of this housing is more space-saving

Locking takes place using a plastic lever on the counter-housing

Meets protection class IP 65 when locked

The arrow is a new design element on the housing surface, making it easy to find and easy to connect in tight spaces and possibly poorly visible areas of application

UL certification according to technical data enables the product to be used on the North American market.

Applications

For protecting the connector insert against environmental influences

For use with many EPIC® rectangular connector inserts

For connecting devices and machines to the power supply

High oil resistance material for harsh industrial environments

Suitable for outdoor use.

Technical Attributes

General Information

Brand	EPIC®
Product type	Hood
Design size	3A
Delivery Unit	10.000
Weight	0.01 kg

Electrical Characteristics

Product Design

Locking bolt variant	Bolts for single lever
Total length	26.8
Cable gland material	Polyamide
Number of cable entries	1
Design connector housing	Straight
Thread type	Metric
Cable gland material, short form	PA
EMC screening
Thread size	M 20
With cable gland
With hinged lid
Overall width	26.8
Housing colour	black
Total height	50
Housing coating	Uncoated
Number of cable entries at the top	1
Connector design	Standard
Number of locking bolts	2
Locking bolt material, short form	PA
Housing variant	Hood
Locking bolt material	Polyamide
Housing base material	Polyamide
With thread
Housing base material, short form	PA
With collar
Locking type	Single lever
With lever
Screen contact

Product Characteristics

Corrosion-resistant
Acid-resistant
Chemical resistant
UV-resistant
Operating temperature min.	-40
Operating temperature max.	100
Impact-resistant
Vibration protection
IP protection class plugged in	IP 65
Corrosion-resistant according to	DIN EN 6988
Halogenfree
Short-term temperature peaks	125

Certifications and Standards

UR recognized
cUR recognized
CSA certified
cUR category control number	ECBT8
UL category control number	ECBT2
TÜV certified
Product standard according to IEC	IEC 61984
UR certification	according to UL 1977 (e-file number: E75770), according to UL 50E (e-file number: E75770)
UL listed
cUR certification	according to CSA C22.2 No. 182.3 (e-file number: E75770)
VDE registration number	B437
CE marked
VDE certified
