EPIC® H-DD 24 SCM

Name: EPIC® H-DD 24 SCM
Brand: LAPP
SKU: 11285000
Price: 412910 VND
Availability: OutOfStock

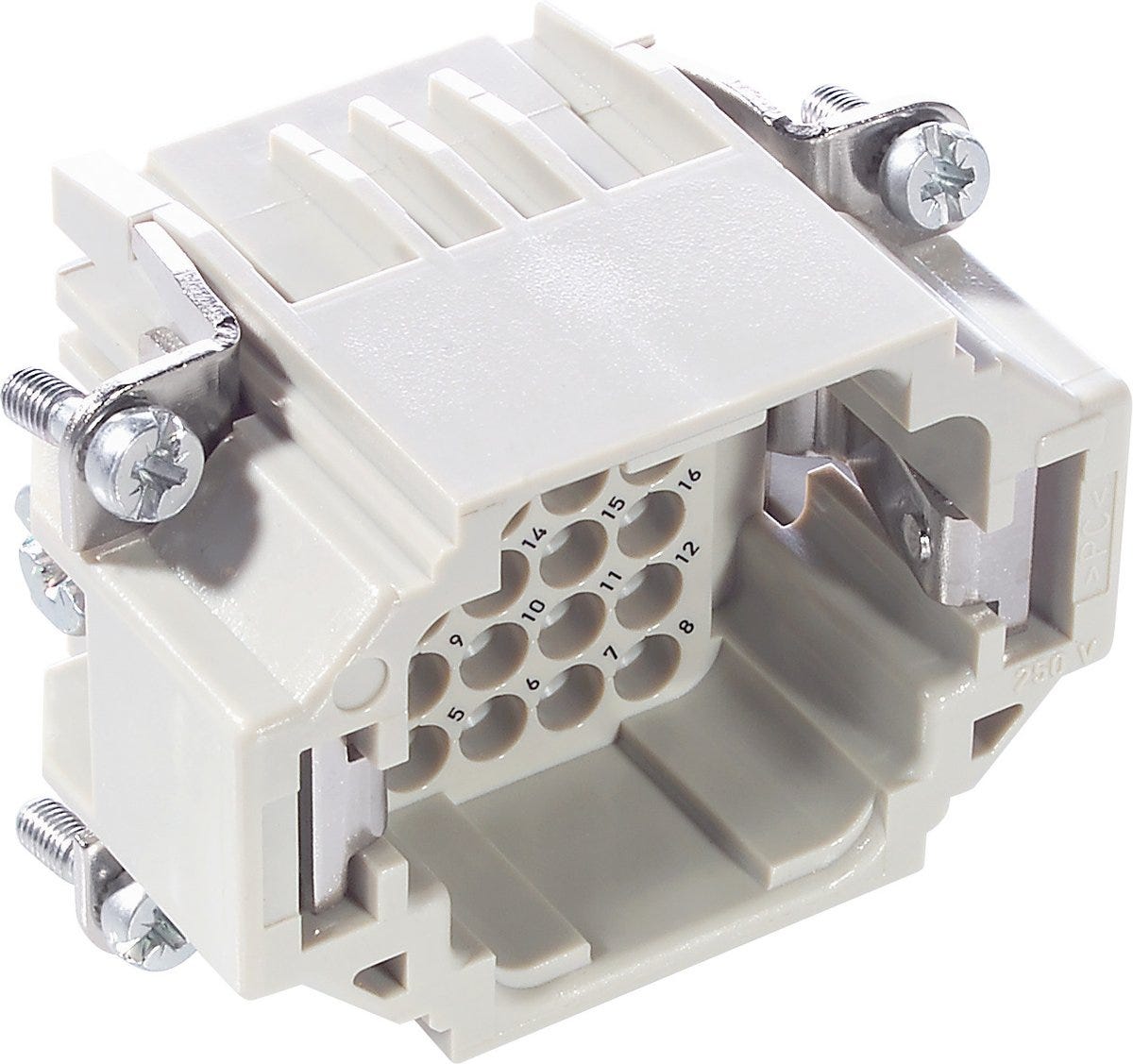

Crimping insert Pin; Number of contacts: 24+PE; Design size: 6B; 600 V AC rms / DC according to CSA; 10 A according to IEC; For cross-section (min./max.): 0.14mm² - 2.5mm²; Polycarbonate

LAPPSKU: 11285000Article No.#: 11285000

EPIC® H-DD 24 SCM

Crimping insert Pin; Number of contacts: 24+PE; Design size: 6B; 600 V AC rms / DC according to CSA; 10 A according to IEC; For cross-section (min./max.): 0.14mm² - 2.5mm²; Polycarbonate

EPIC® H-DD 24 SCM

412.910₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

The EPIC® H-DD series of rectangular connectors includes crimp inserts with a particularly high number of poles in a very small space. This allows a smaller design to be selected for the rectangular connector housing

Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly

For turned and punched contacts. Turned contacts allow the safe transmission of higher currents

UL certification according to technical data enables the product to be used on the North American market

The respective pin and socket insert variants differ in quality according to their technical data.

Applications

For connecting devices and machines to a power supply in various applications

For use with the rectangular connector housings of the EPIC® H-B series

Suitable for outdoor use, subject to the temperature range.

Technical Attributes

General Information

Brand	EPIC®
Contacts included
Product range	RECTANGULAR
Product type	Crimping insert
Scope of delivery	Order contacts separately
Design size	6B
Delivery Unit	5.000
Weight	0.043 kg

Electrical Characteristics

Rated current	10 A according to IEC, 8.5 A according to UL, 10 A according to CSA
Protective conductor integrated into insert
Over voltage category	III
Rated impulse voltage	2.5 kV AC rms / DC according to IEC 61984
Rated voltage	600 V AC rms / DC according to CSA, 250 V AC rms / DC according to IEC, 600 V AC rms / DC according to UL
Max. contact resistance	3

Product Design

With wire protection
Colour	grey
Connectable conductor cross section min. (AWG)	26 AWG
Max. connectable conductor cross-section AWG	14 AWG
Min. connectable conductor cross-section (mm2)	0.14
Number of contacts	24+PE
Contact material	Brass
With protective conductor
Max. connectable conductor cross-section (mm2)	2.5
Contact material, short form	CuZn
Contact insert type	Plug
Material contact surface	Silver-plated
Contact insert material, short form	PC
PE connection type	Screw connection
Contact variant	Pin
Connector type	Plug
Material contact insert	Polycarbonate
Number of PE contacts	1
Conductor connection type	Crimp termination
Contact insert without contacts
Contact diameter	1.6
Number of signal contacts	0
Number of power contacts	24

Product Characteristics

Flame-retardant
Minimum tightening torque for PE connection	1.2
UV-resistant
Operating temperature min.	-40
Maximum tightening torque for PE connection	1.2
Operating temperature max.	100
Min. number of insertion cycles	100
Suitable for EX-applications
Impact-resistant
Pollution degree	3
Vibration protection
Flame retardance according to	UL 94 V-0
Halogenfree
Short-term temperature peaks	125

Certifications and Standards

UR recognized
cUR recognized
CSA certified
cUR category control number	ECBT8
UL category control number	ECBT2
TÜV certified
Product standard according to IEC	IEC 61984
UR certification	according to UL 1977 (CCN: ECBT2 / e-file number: E75770)
CE marked
VDE certified

Documentation

Downloads

approval ul epic - en-UK (PDF)

approval vde epic - de-DE (PDF)

CE declaration of conformity - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

operation instruction - de-DE (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List
