EPIC® MC BCEG AG 1.5-2.5 D=2.5

Name: EPIC® MC BCEG AG 1.5-2.5 D=2.5
Brand: LAPP
SKU: 11206000
Price: 18330 VND
Availability: OutOfStock

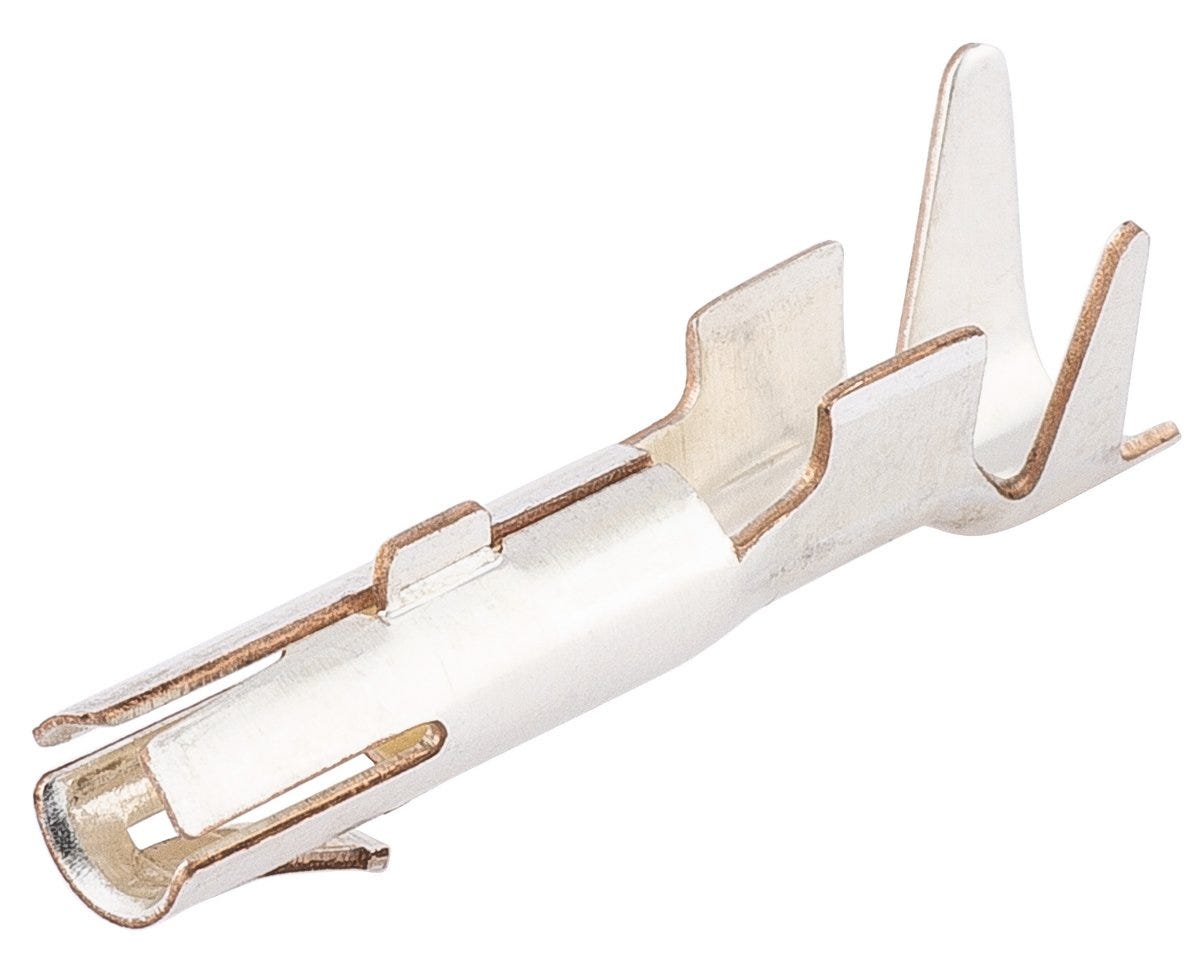

Stamped contact; Socket; Crimp termination; For cross-section (min./max.): 1.5mm² - 2.5mm²; Brass Silver-plated

LAPPSKU: 11206000Article No.#: 11206000

EPIC® MC BCEG AG 1.5-2.5 D=2.5

Stamped contact; Socket; Crimp termination; For cross-section (min./max.): 1.5mm² - 2.5mm²; Brass Silver-plated

EPIC® MC BCEG AG 1.5-2.5 D=2.5

18.330₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Benefits

Punched contact: established and inexpensive

Crimp termination creates a vibration-proof connection, provides maximum contact protection between the contact and cable and is suitable for automated assembly

Silver-plated contact surface for low contact resistances and minimum heat generation at the contact

UL certification according to technical data enables the product to be used on the North American market.

Applications

For manufacturing a modular connector insert

For use with modules of the EPIC® MC series.

Technical Attributes

General Information

Product type	Stamped contact
Brand	EPIC®
Installation type	crimp
Contact delivery type	Bag
Delivery Unit	100.000
Weight	0.001 kg

Electrical Characteristics

Max. contact resistance

Product Design

Material contact surface	Silver-plated
Stripping length of single core	3.5
Contact variant	Socket
Contact coating material, short form	Ag
Contact manufacturing method	Stamped
Conductor connection type	Crimp termination
Connectable conductor cross section min. (AWG)	16 AWG
Max. connectable conductor cross-section AWG	14 AWG
Min. connectable conductor cross-section (mm2)	1.5
Contact diameter	2.5
Contact material	Brass
Max. connectable conductor cross-section (mm2)	2.5
Contact material, short form	CuZn

Product Characteristics

Certifications and Standards

Tested for fire protection for railway vehicles
TÜV certified
Product standard according to IEC	IEC 61984
UR recognized
cUR recognized
CSA certified
CE marked
VDE certified
EAC certification number	Отказное письмо № 39
EAC-certified	Not required

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

trcu declaration of conformity - ru-RU (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
