ÖLFLEX® DC 100 3G16

Name: ÖLFLEX® DC 100 3G16
Brand: LAPP
SKU: 11101111
Price: 899842 VND
Availability: OutOfStock

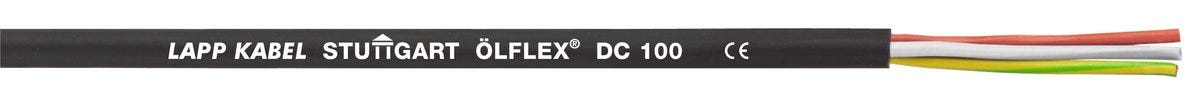

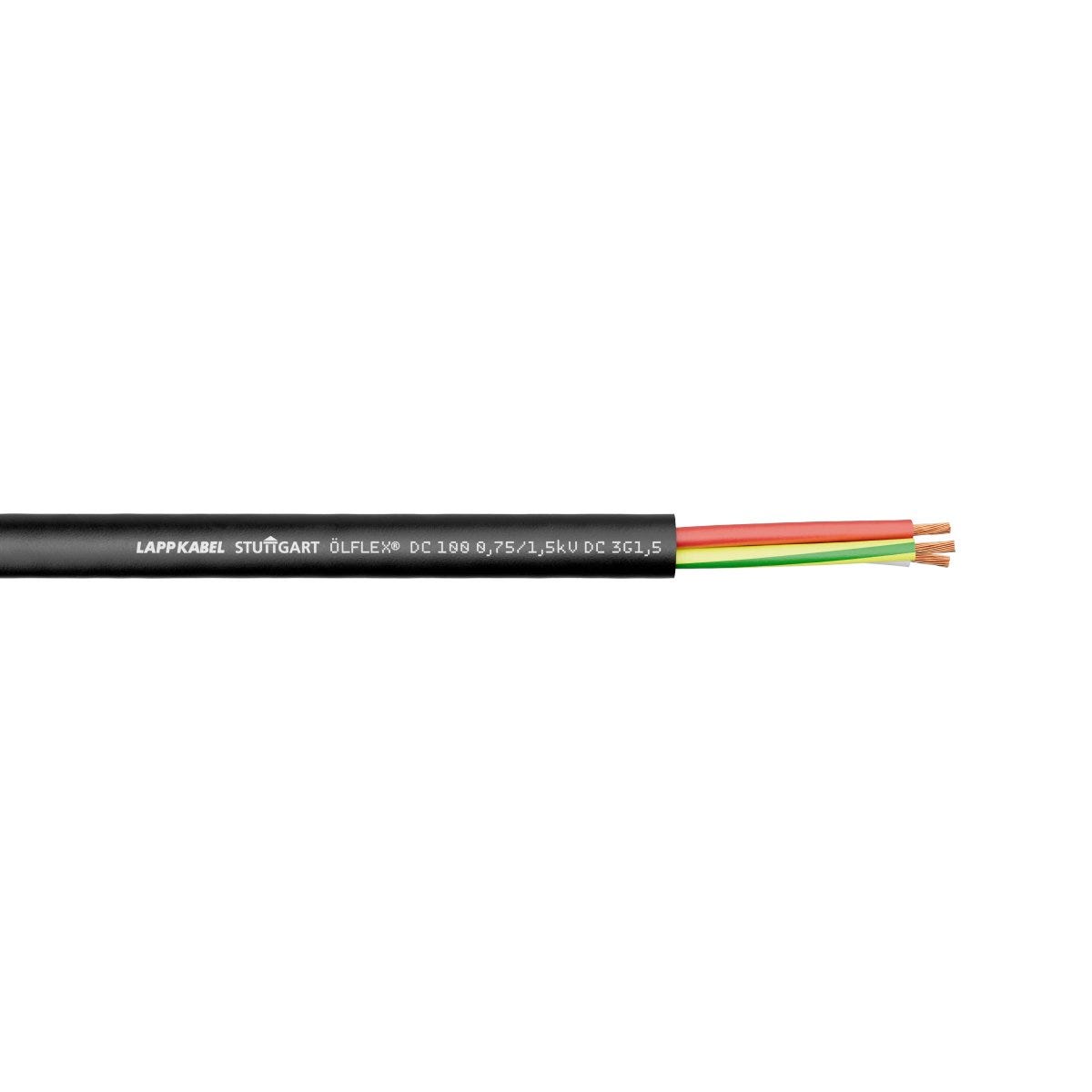

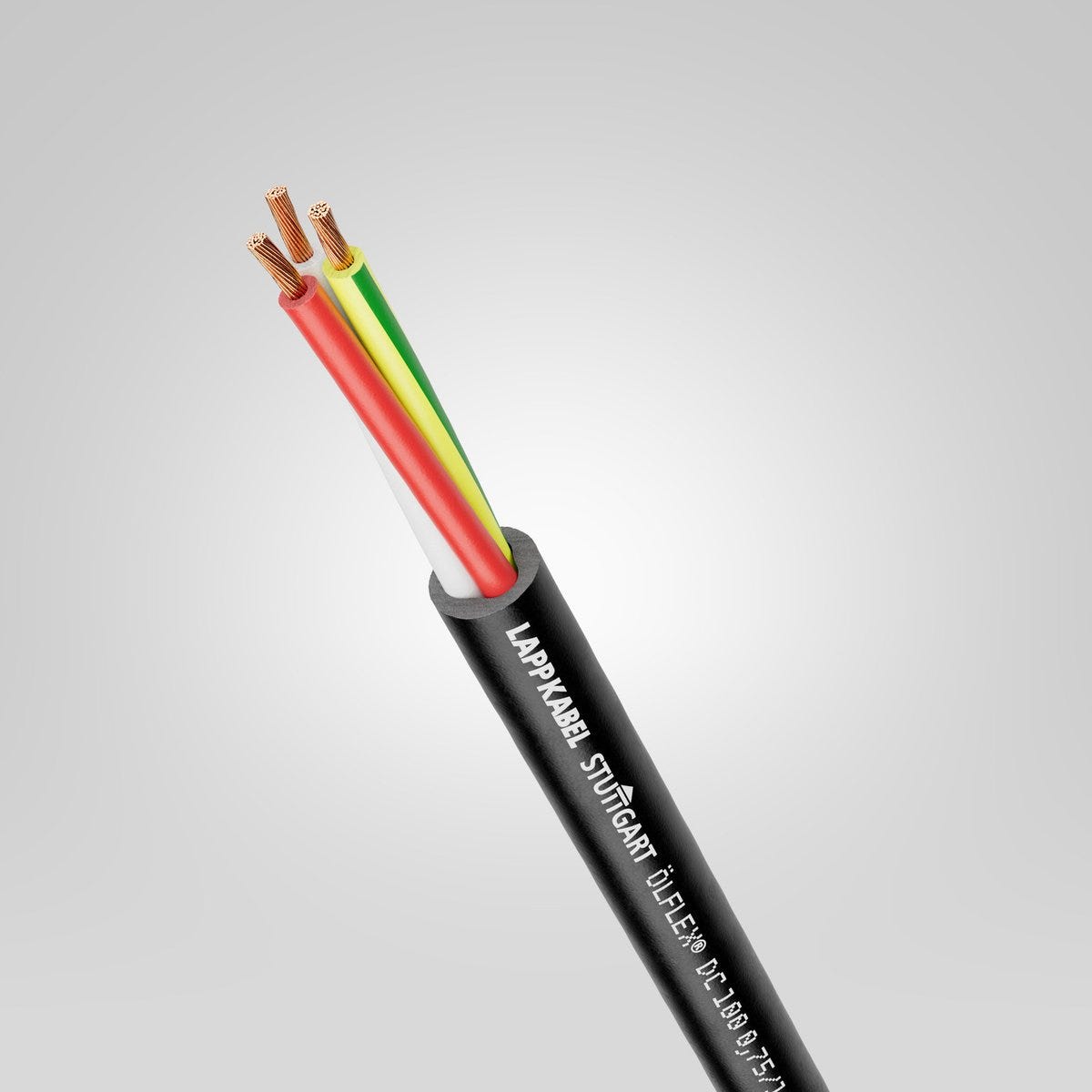

DC power cable; 3G16; U₀/U: 0,75/1,5 kV; PVC; Core identification: Colours; Flexible

LAPPSKU: 11101111Article No.#: 11101111

ÖLFLEX® DC 100 3G16

DC power cable; 3G16; U₀/U: 0,75/1,5 kV; PVC; Core identification: Colours; Flexible

ÖLFLEX® DC 100 3G16

899.842₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Specially constructed for the long term operation with DC voltage up to 0,75 / 1,5 kV, Suitable for the construction of energy efficient DC grids in industrial plants

Applications

Plant engineering Industrial machinery Heating and air-conditioning systemsPower stationsStage applications, For plants where power is supplied by a direct current network, For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load

Technical Attributes

General Information

Product type	DC power cable
Brand	ÖLFLEX®
Copper index	461.000 kg/km
Copper index (lb)	3097.793 lb
Weight	728 kg/km

Electrical Characteristics

Nominal voltage	U₀/U: 0,75/1,5 kV DC according to IEC
Max. conductor resistance at 20°C	1.21 Ω/km
Inductance (800 Hz), approx.	0.607
Test voltage	4 kV
Conductor/conductor operating capacitance (800Hz), approx.	131

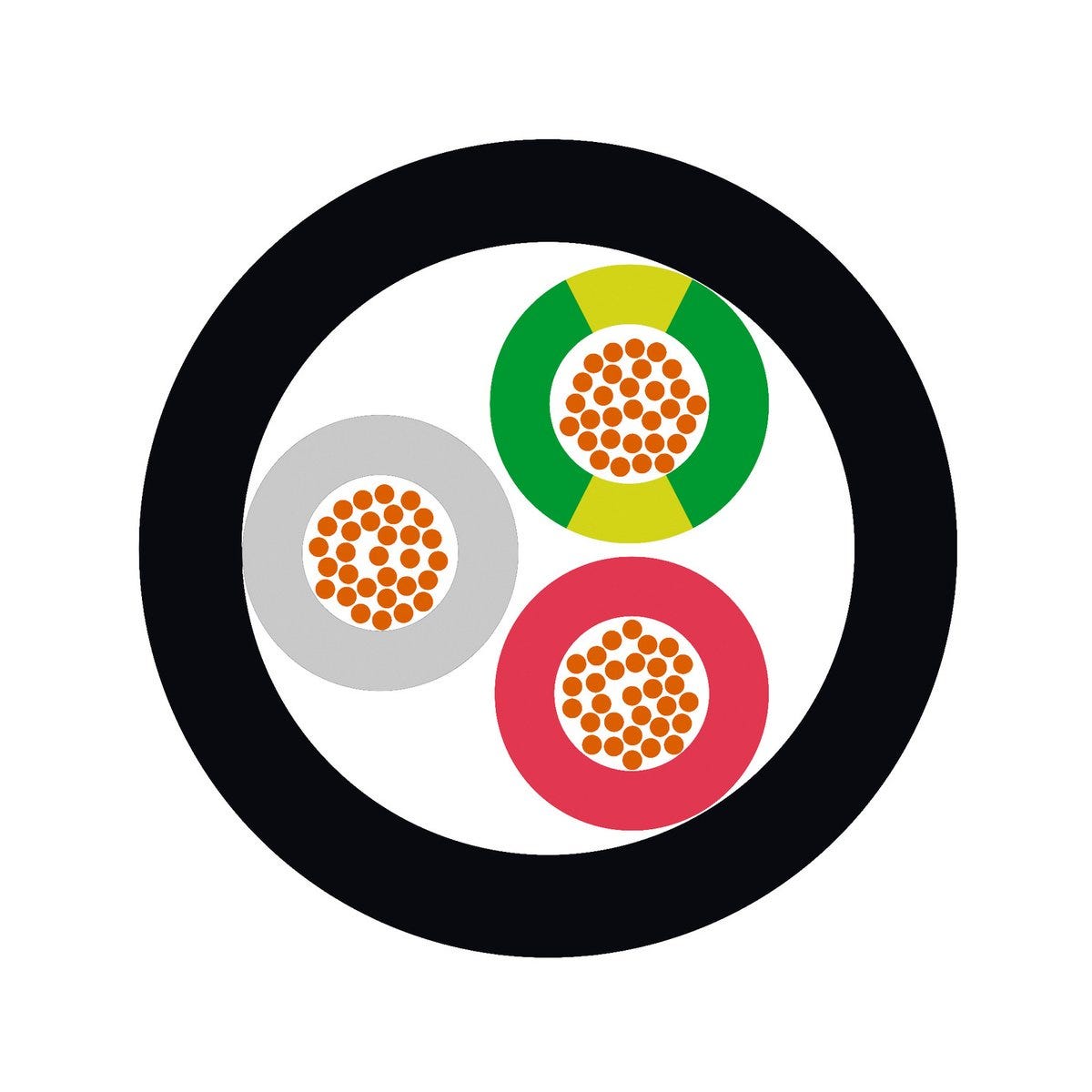

Product Design

Core identification	Colours
Shape of cable	Round
Outer sheath colour	black
Conductor design	IEC 60228 class 5: fine-wire
Nominal outer diameter	18.3 mm
Conductor material	Bare copper
Conductor colour code	EN 60445
Number of cores	3
Nominal conductor cross-section (metric)	16 mm²
Cable dimension	3G16
Core insulation basic material	Polyvinylchloride
Basic material of outer sheath	Polyvinylchloride
Including protective earth
Core insulation basic material, short form	PVC
Basic material of outer sheath, short form	PVC

Product Characteristics

Flame-retardant
Application area	Flexible, Fixed installation
max. conductor temperature, occasionally moved	-5 °C to 70 °C max. conductor temperature:
PWIS-free according to	VDMA 24364-B2-L
Oil-resistant
Minimum bending radius in mm, occasionally flexing	274.5 mm
Ozone-resistant according to	EN 50396, method B
Ozone resistant
UV-resistant
Minimum bending radius, stationary	4 x outer diameter
Minimum bending radius, occasionally flexing	15 x outer diameter
Temperature, fixed installation	-40 °C to 80 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2
Minimum bending radius in mm, fixed installation	73.2 mm
UV-resistant according to	EN 50618, EN 50620, DIN EN ISO 4892-2 method A
PWIS-free
For torsional load
Halogenfree

Certifications and Standards

Flame retardance tested according to UN/ECE-R118
CE marked
VDE certified
EAC certification number	ЕАЭС RU С-DE.АЮ64.В.00091/19
EAC-certified

Documentation

Downloads

CE declaration of conformity - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

All articles from ÖLFLEX® DC 100

Article number	Number of cores	Including protective conductor	Conductor cross-section (mm2)	Nominal outer diameter	Weight
11101106	3	Yes	1.5	8.7	117 kg/km
11101107	3	Yes	2.5	10	161 kg/km
11101108	3	Yes	4	11.4	244 kg/km
11101109	3	Yes	6	12.6	318 kg/km
11101111	3	Yes	16	18.3	728 kg/km
11101113	3	Yes	25	23	1071 kg/km
11101114	3	Yes	35	25.6	1684 kg/km
