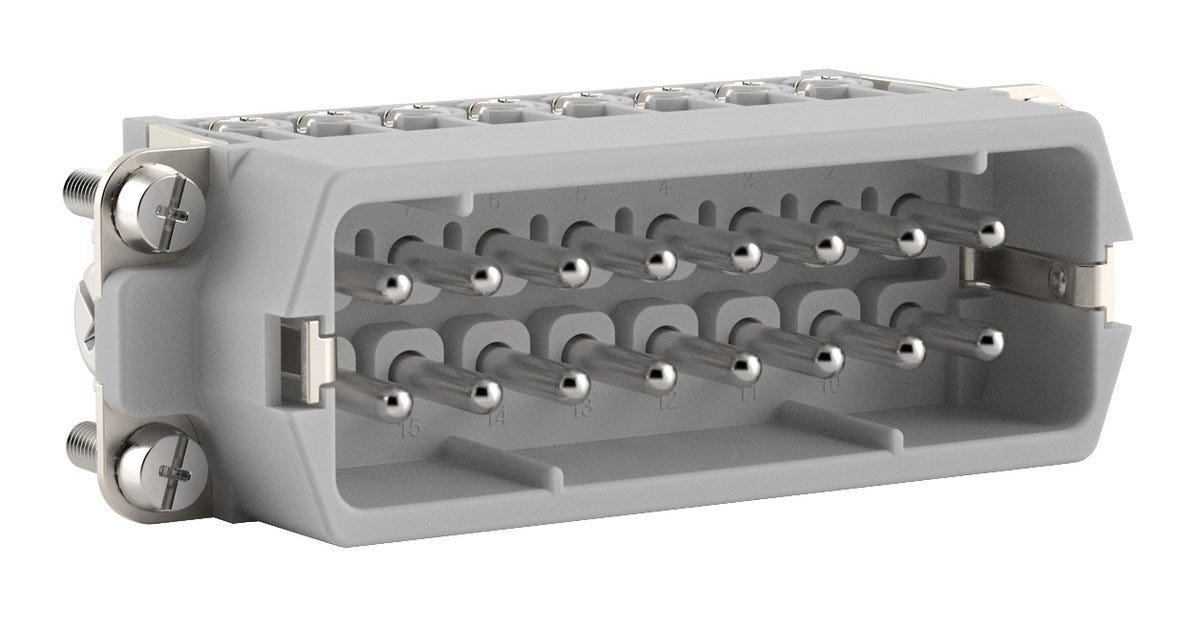

EPIC® H-A 16 SS 17-32 DR PH1
Insert with screw connection Pin; Number of contacts: 16+PE; Design size: 32A; 400 V AC rms / DC according to IEC; 14 A according to UL; For cross-section (min./max.): 0.5mm² - 2.5mm²; Contacts included; Polycarbonate
EPIC® H-A 16 SS 17-32 DR PH1
688.171₫
/
EPIC® H-A 16 SS 17-32 DR PH1
688.171₫
/
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
cold resistance
flame-retardant
halogen-free
Certificate
CE marked
VDE certified
VDE Reg.-Nr. B437
UR recognised US, cUR recognised US
Benefits
The EPIC® H-A series of rectangular connectors includes space-saving and high-performance inserts with screw connection

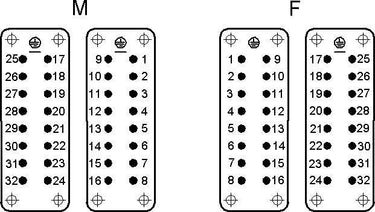

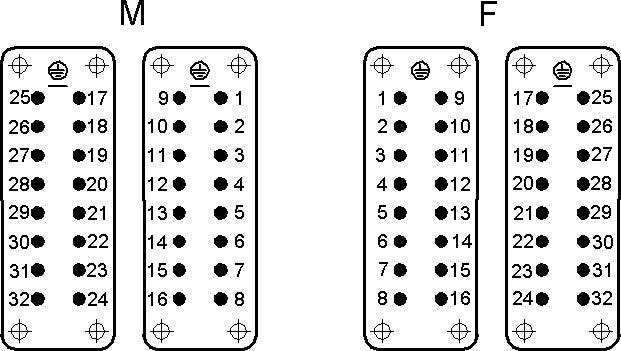

The 16-contact insert is used to supplement the EPIC® H-A 16. It bears the 17-32 pole labelling to reduce potential assembly errors
The maximum number of poles within a rectangular connector housing can thus be increased to 32
Easy to service screw connection enables assembly without special tools
Despite its small size, suitable for data transmissions up to 16 A and voltages up to 400 V (depending on article)
Available with or without wire protection. The wire protection enables stranded wires without conductor end sleeves to be connected directly
UL certification according to technical data enables the product to be used on the North American market
Can be used in railway vehicles in accordance with standards for selected articles (fire behaviour test in accordance with DIN EN 45545-2:2016-02, requirement sets R22 and R23, hazard levels HL1, HL2 and HL3)
The respective pin and socket insert variants differ in quality according to their technical data.
Applications
For connecting devices and machines to a power supply in various applications
Suitable for outdoor use, subject to the temperature range.
Technical Attributes
General Information
| Brand | EPIC® |
| Contacts included |
|
| Product range | RECTANGULAR |
| Product type | Insert with screw connection |
| Scope of delivery | including contacts |
| Design size | 32A |
| Delivery Unit | 5.000 |
| Weight | 0.065 kg |
Electrical Characteristics
| Rated current | 14 A according to UL, 16 A according to CSA, 16 A according to IEC |
| Protective conductor integrated into insert |
|
| Over voltage category | III |
| Rated impulse voltage | 4 kV AC rms / DC according to IEC 61984 |
| Rated voltage | 400 V AC rms / DC according to IEC, 400 V AC rms / DC according to UL, 400 V AC rms / DC according to CSA |
| Max. contact resistance | 4 |
Product Design
| EMC screening |
|
| With wire protection |
|
| Colour | grey |
| Connectable conductor cross section min. (AWG) | 20 AWG |
| Max. connectable conductor cross-section AWG | 14 AWG |
| Min. connectable conductor cross-section (mm2) | 0.5 |
| Number of contacts | 16+PE |
| Contact material | Brass |
| With protective conductor |
|
| Max. connectable conductor cross-section (mm2) | 2.5 |
| Contact material, short form | CuZn |
| Contact insert type | Plug |
| Material contact surface | Silver-plated |
| Contact insert material, short form | PC |
| PE connection type | Screw connection |
| Stripping length of single core | 8 |
| Contact variant | Pin |
| Contact coating material, short form | Ag |
| Connector type | Plug |
| Material contact insert | Polycarbonate |
| Contact manufacturing method | Machined |
| Number of PE contacts | 1 |
| Conductor connection type | Screw connection |
| Contact insert without contacts |
|
| Stripping length of PE connection | 8 |
| Contact diameter | 2.5 |
| Number of power contacts | 16 |
Product Characteristics
| Flame-retardant |
|
| Minimum tightening torque for PE connection | 1.2 |
| Acid-resistant |
|
| Chemical resistant |
|
| UV-resistant |
|
| Operating temperature min. | -40 |
| Maximum tightening torque for PE connection | 1.2 |
| Operating temperature max. | 100 |
| Min. number of insertion cycles | 500 |
| Suitable for EX-applications |
|
| Impact-resistant |
|
| Pollution degree | 3 |
| Vibration protection |
|
| Flame retardance according to | UL 94 V-0 |
| Halogenfree |
|
| Short-term temperature peaks | 125 |
Certifications and Standards
| UR recognized |
|
| cUR recognized |
|
| CSA certified |
|
| Fire protection for railway vehicles hazard level | EN 45545-2 HL1, EN 45545-2 HL2, EN 45545-2 HL3 |
| cUR category control number | ECBT8 |
| UL category control number | ECBT2 |
| Tested for fire protection for railway vehicles |
|
| TÜV certified |
|
| Product standard according to IEC | IEC 61984 |
| UR certification | according to UL 1977 (e-file number: E75770) |
| cUR certification | according to CSA C22.2 No. 182.3 (e-file number: E75770) |
| VDE registration number | B437 |
| CE marked |
|
| VDE certified |
|
| EAC certification number | Отказное письмо № 39 |
| EAC-certified | Not required |
Documentation
Downloads
Further Links
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Product Family List
All articles from EPIC® H-A 32
| Article number | Contact insert type | Number of contacts | With wire protection | Delivery Unit | Product range |
|---|---|---|---|---|---|
| 10540000 | Plug | 16+PE | Yes | 5.000 | RECTANGULAR |
| 10541000 | Socket | 16+PE | Yes | 5.000 | RECTANGULAR |
| 10542000 | Plug | 16+PE | No | 5.000 | RECTANGULAR |
| 10543000 | Socket | 16+PE | No | 5.000 | RECTANGULAR |
| 381167231 | Plug | 16+PE | Yes | 1.000 | HDC |
| 381167232 | Socket | 16 + PE | Yes | 1.000 | HDC |
