EPIC® ULTRA H-A 3 AGSV open

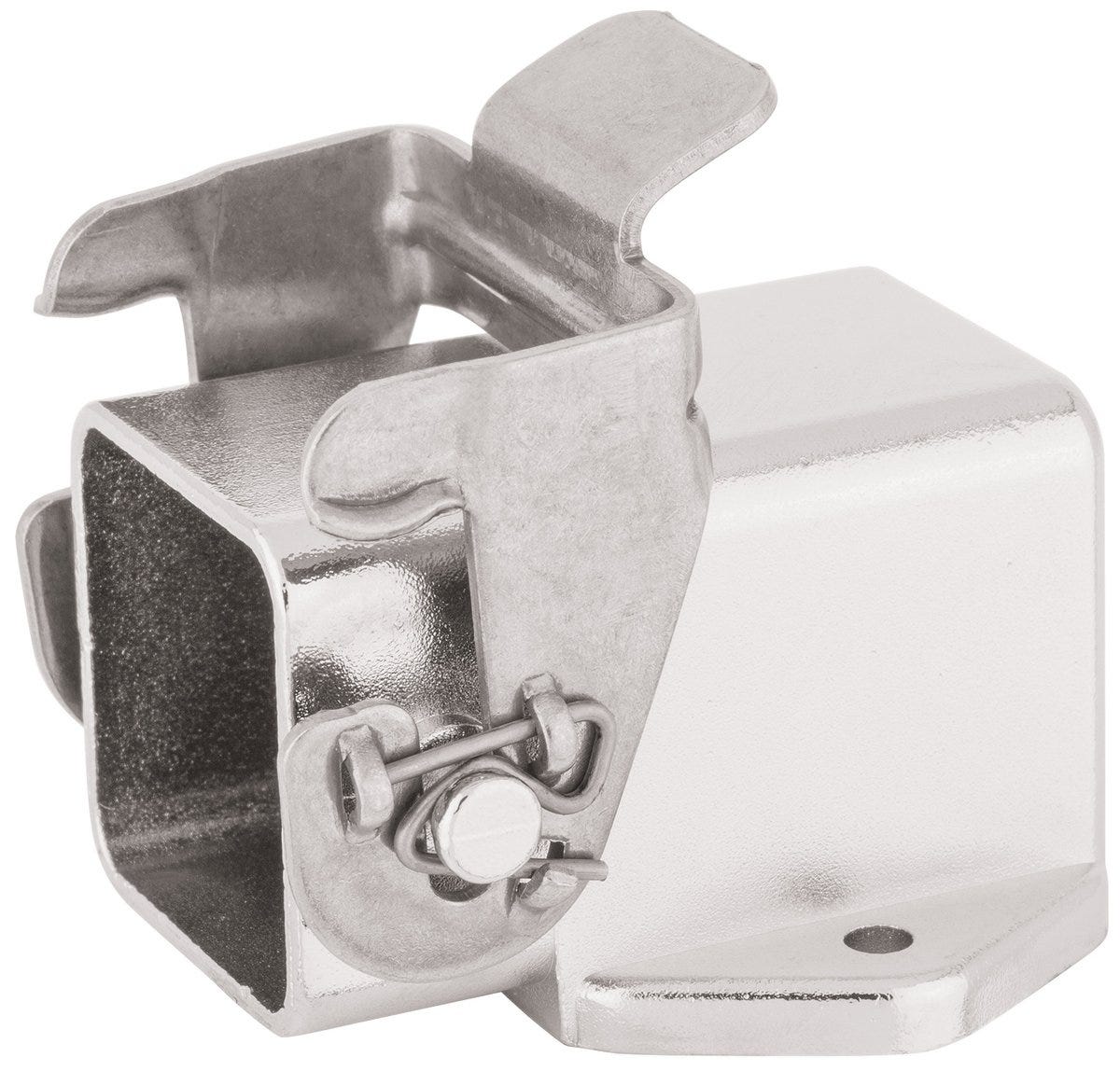

Name: EPIC® ULTRA H-A 3 AGSV open
Brand: LAPP
SKU: 10423203
Price: 654528 VND
Availability: OutOfStock

Surface-mount base; Design size: 3A; Plug connection design: Standard; Single Lever; Number of cable entries: 2; Zinc alloy, Nickel-plated; EMC screening; IP protection rating mounted: IP 65

LAPPSKU: 10423203Article No.#: 10423203

EPIC® ULTRA H-A 3 AGSV open

Surface-mount base; Design size: 3A; Plug connection design: Standard; Single Lever; Number of cable entries: 2; Zinc alloy, Nickel-plated; EMC screening; IP protection rating mounted: IP 65

EPIC® ULTRA H-A 3 AGSV open

654.528₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

The EPIC® ULTRA H-A 3 series covers the smallest EMC housings in the heavy-duty industrial connector field and ensures secure connectors in the smallest possible space

VDE-tested quality

UL certification according to technical data enables the product to be used on the North American market

The surface-mount base can be plugged with many common hoods

With open base for cable entry into the housing or control cabinet

With side cable outlet for orderly cable laying and to prevent the cable from bending too much

With threaded borehole for use with a corresponding cable gland

The locking is performed using a stainless steel lever

Meets protection class IP 65 when locked

Protection class classified according to NEMA 250 and tested pursuant to UL50E

The arrow is a new design element on the housing surface, making it easy to find and easy to connect in tight spaces and possibly poorly visible areas of application.

Applications

For protecting the connector insert against environmental influences

For connecting devices and machines to a power supply in various applications

Especially for environments where the product comes into contact with water, cleaning agents and saline substances

Especially for environments where electromagnetic compatibility (EMC) is required

For use with many EPIC® rectangular connector inserts

Withstands high chemical and mechanical stress

Suitable for outdoor use.

Technical Attributes

General Information

Brand	EPIC®
Product type	Surface-mount base
Design size	3A
Delivery Unit	10.000
Weight	0.062 kg

Electrical Characteristics

Product Design

Total length	40.5
Number of cable entries	2
Design connector housing	Angled
Thread type	Metric
EMC screening
Thread size	M 20
With cable gland
With hinged lid
Overall width	30
Housing colour	silver grey
Total height	25.8
Housing coating	Nickel-plated
Number of side cable entries	1
Connector design	Standard
Lever material	Stainless steel
Number of locking bolts	0
Housing variant	Panel-mount base
Housing base material	Zinc alloy
With thread
With collar
Locking type	Single lever
With lever
Screen contact

Product Characteristics

Corrosion-resistant
Acid-resistant
Chemical resistant
UV-resistant
Operating temperature min.	-40
Operating temperature max.	100
Salt spray test according to	DIN EN ISO 9227, method NSS, test duration 480 hours, IEC 60068-2-52 Sharpness Level 2
Impact-resistant
Vibration protection
IP protection class plugged in	IP 65
Corrosion-resistant according to	DIN EN 6988
Protection class (IP), mounted	IP 65
Halogenfree
Short-term temperature peaks	125

Certifications and Standards

UR recognized
cUR recognized
CSA certified
TÜV certified
Product standard according to IEC	IEC 61984
UR certification	according to UL 1977 (CCN: ECBT2 / e-file number: E75770)
cUR certification	according to CSA C22.2 No. 182.3 (CCN: ECBT8 / e-file number: E75770)
VDE registration number	B437
CE marked
VDE certified

Documentation

Downloads

CE declaration of conformity - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

operation instruction - de-DE (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
