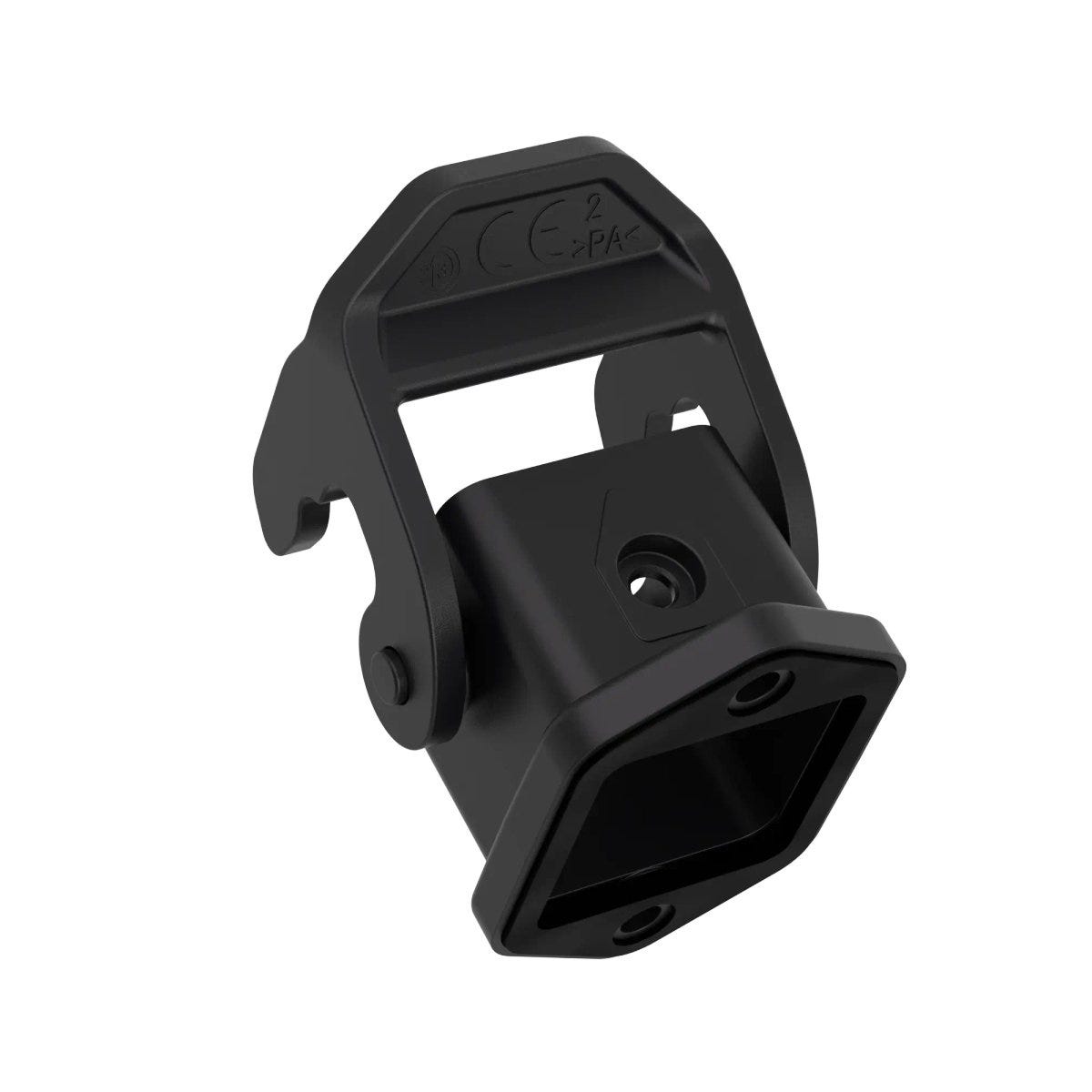

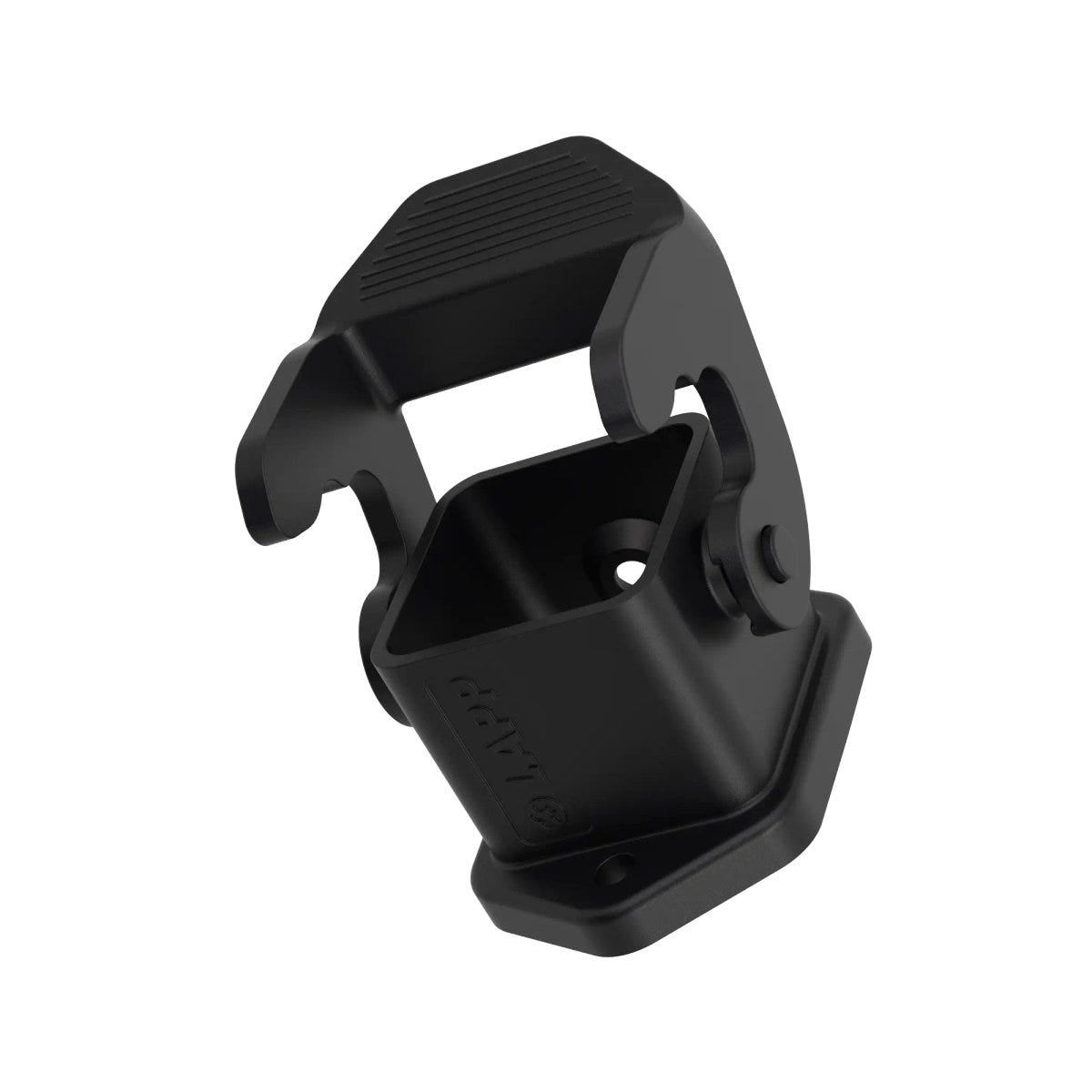

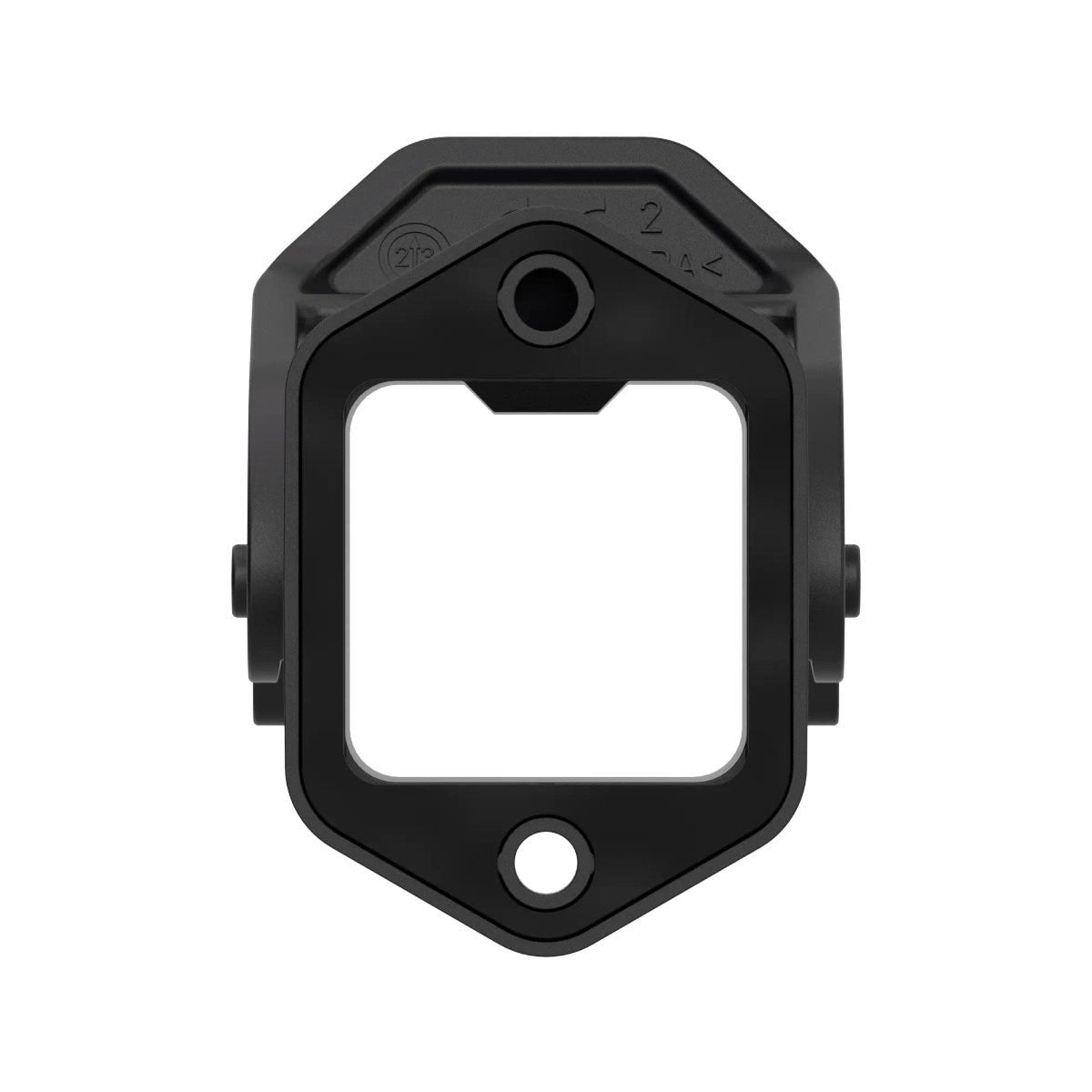

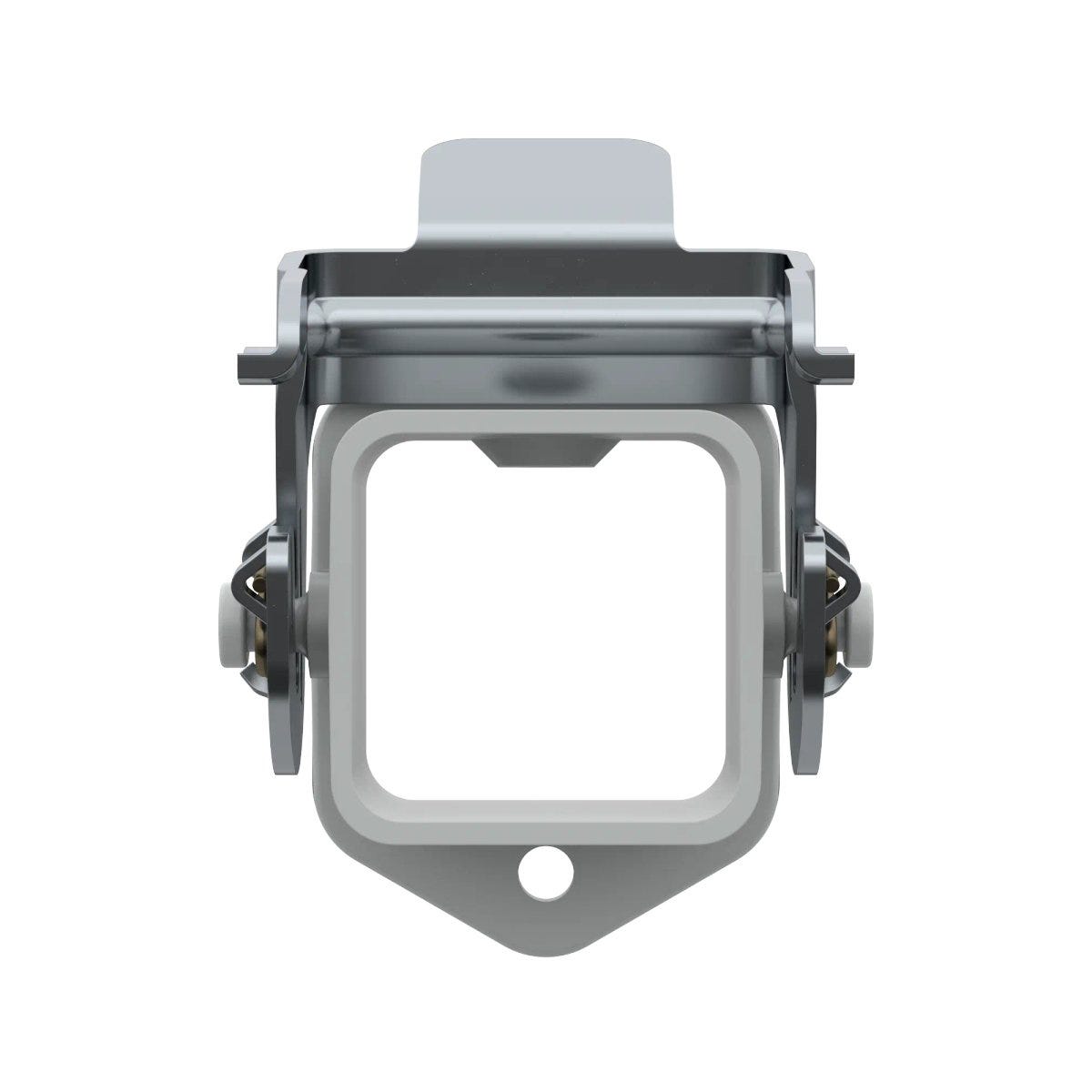

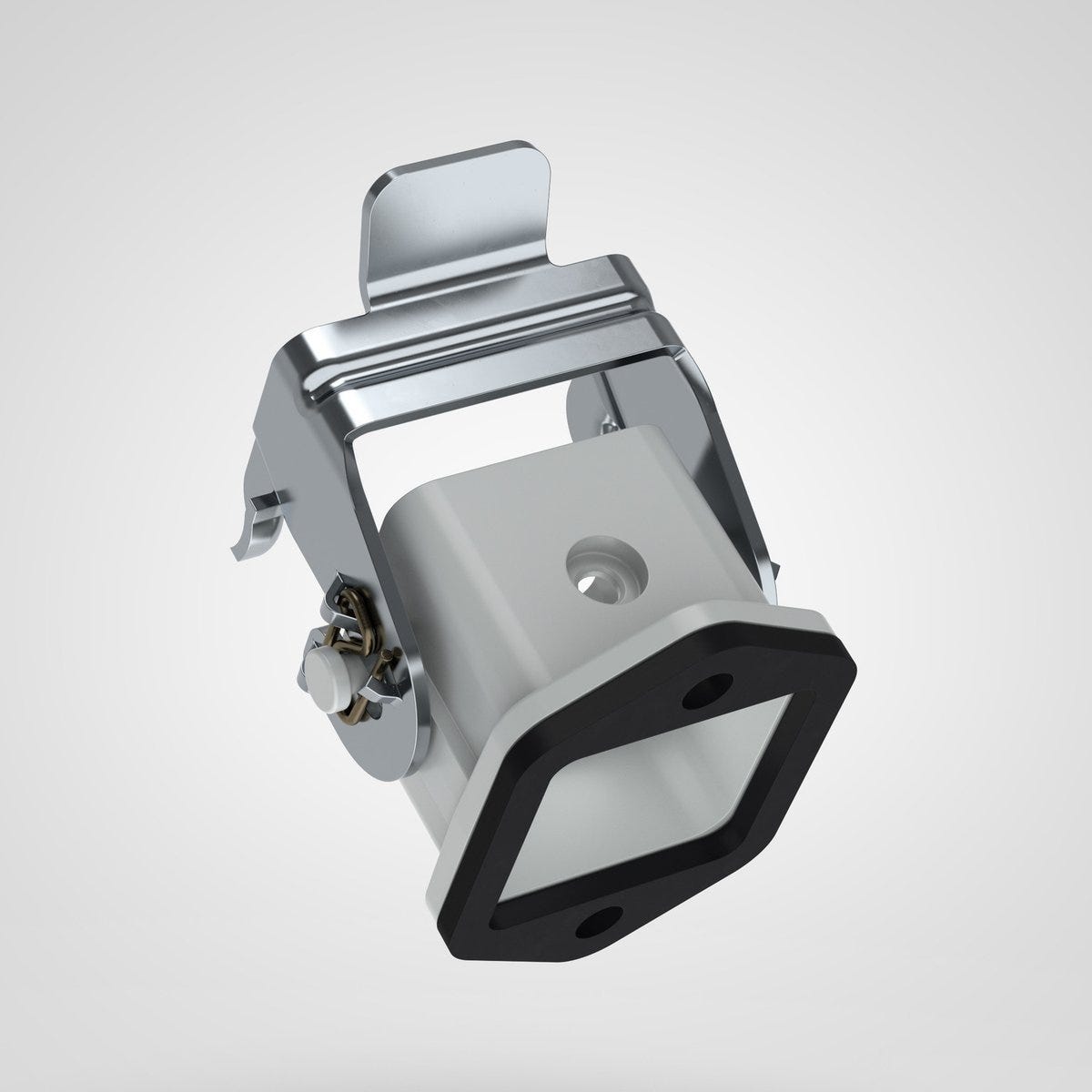

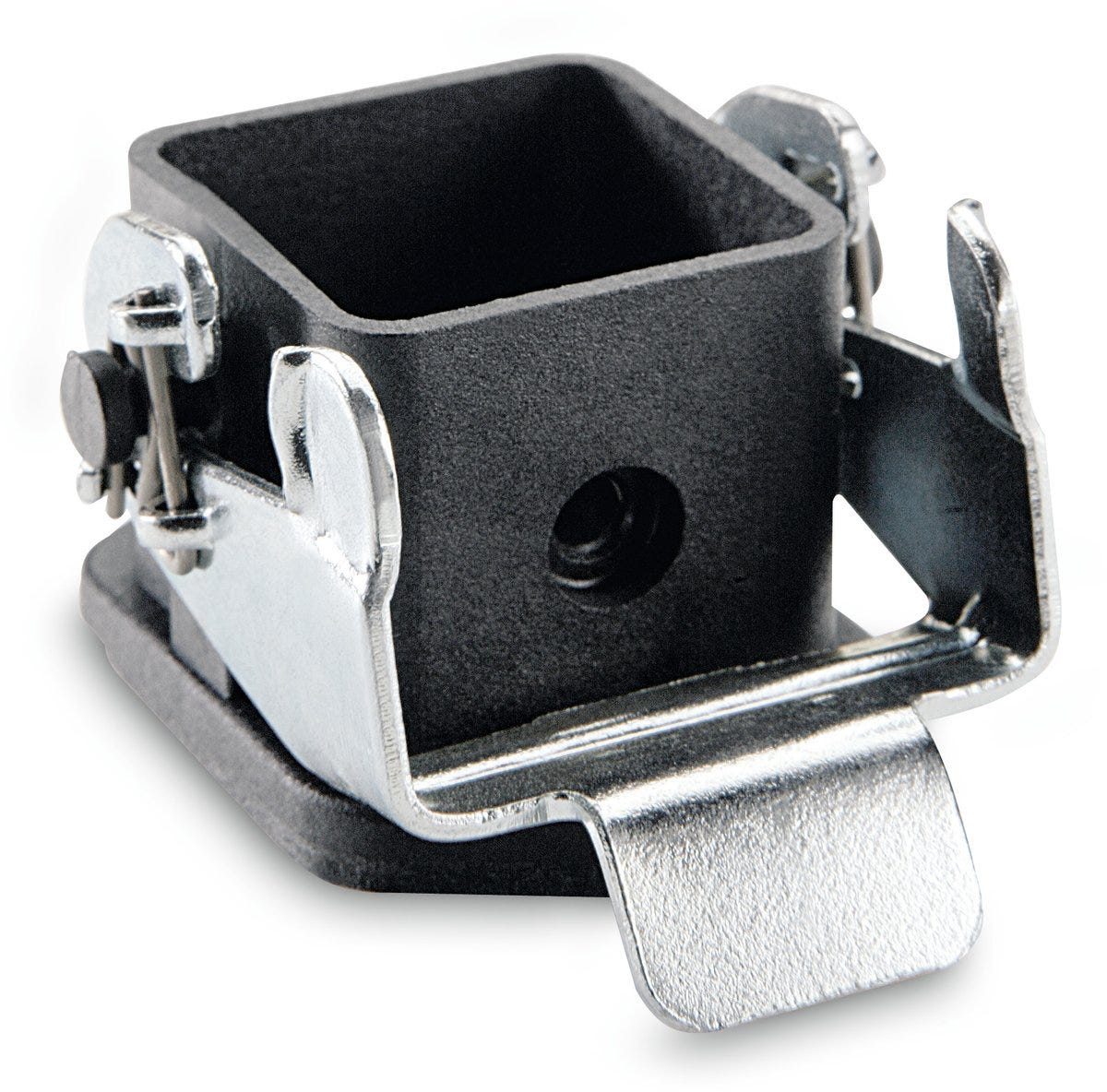

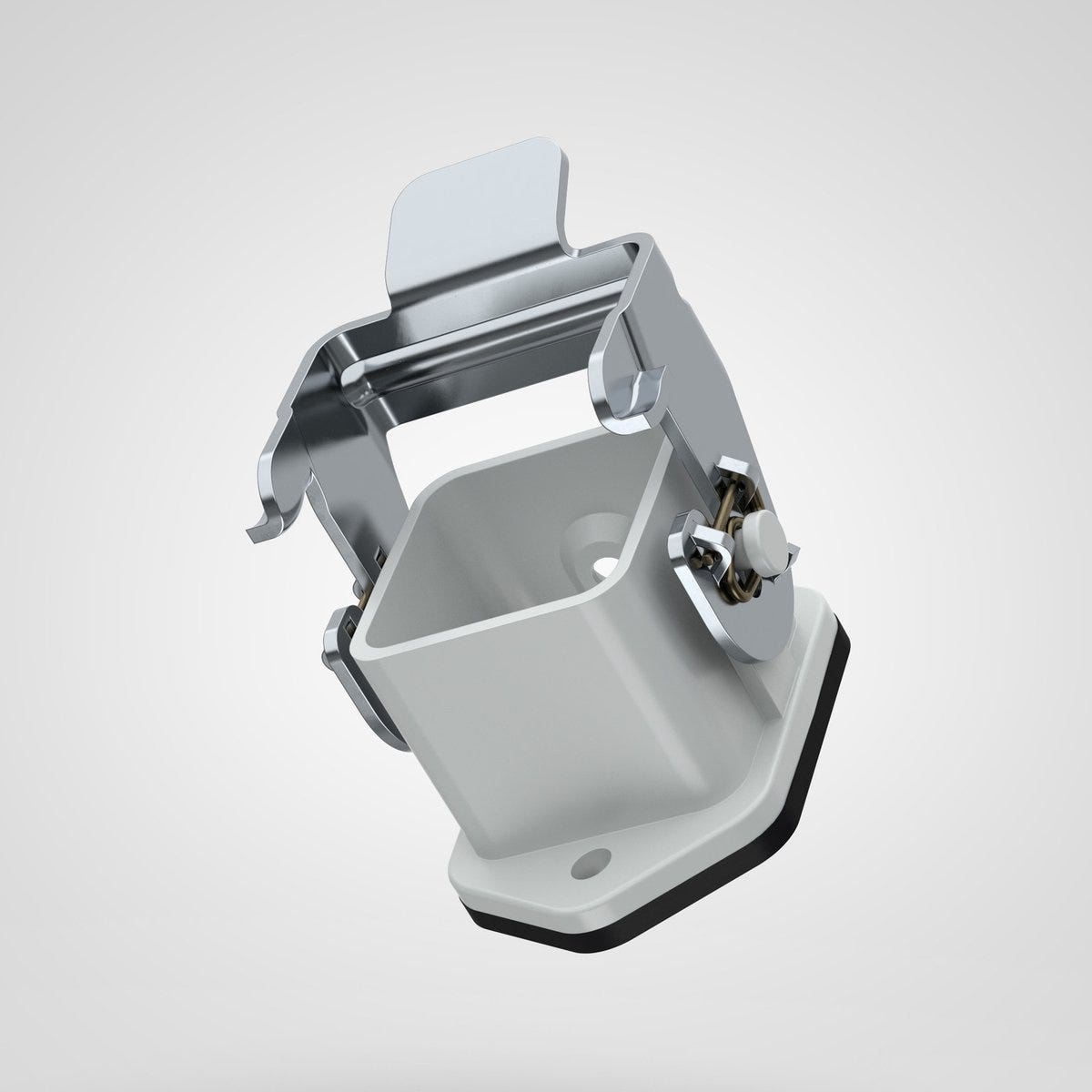

EPIC® H-A 3 AG bk

Name: EPIC® H-A 3 AG bk
Brand: LAPP
SKU: 10422200
Price: 71879 VND
Availability: OutOfStock

Panel-mount base; Design size: 3A; Plug connection design: Standard; Single Lever; Number of cable entries: 1; Polyamide, Uncoated; IP protection rating mounted: IP 67

LAPPSKU: 10422200Article No.#: 10422200

EPIC® H-A 3 AG bk

Panel-mount base; Design size: 3A; Plug connection design: Standard; Single Lever; Number of cable entries: 1; Polyamide, Uncoated; IP protection rating mounted: IP 67

EPIC® H-A 3 AG bk

71.879₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

The EPIC® H-A 3 series comprises the smallest housings in the rectangular connector range and ensures secure connections in the smallest of spaces

The panel-mount base can be connected to many common housings on the market

With open base for cable entry into the housing or control cabinet

Self-extinguishing in accordance with UL94 V-0 (flammability test for plastics)

The locking takes place using a plastic single lever

Allows protection class IP 65 due to the reliable sealing of the housing

The arrow is a new design element on the housing surface, making it easy to find and easy to connect in tight spaces and possibly poorly visible areas of application

UL certification according to technical data enables the product to be used on the North American market.

Applications

For protecting the connector insert against environmental influences

For use with many EPIC® rectangular connector inserts

For connecting devices and machines to the power supply

High oil resistance material for harsh industrial environments

Suitable for outdoor use.

Technical Attributes

General Information

Brand	EPIC®
Product type	Panel-mount base
Design size	3A
Delivery Unit	10.000
Weight	0.03 kg

Electrical Characteristics

Product Design

Total length	23.8
Number of cable entries	1
Design connector housing	Straight
EMC screening
Housing RAL colour	RAL 9005
With cable gland
With hinged lid
Overall width	23.8
Housing colour	black
Total height	22
Housing coating	Uncoated
Number of cable entries at the top	1
Number of side cable entries	1
Connector design	Standard
Lever material	Plastic
Number of locking bolts	0
Housing variant	Panel-mount base
Housing base material	Polyamide
With thread
Housing base material, short form	PA
With collar
Locking type	Single lever
With lever
Screen contact
Sealing material, short form	NBR
Sealing material	Acrylonitrile butadiene rubber

Product Characteristics

Corrosion-resistant
Acid-resistant
Chemical resistant
UV-resistant
Operating temperature min.	-40
Operating temperature max.	100
Impact-resistant
Vibration protection
IP protection class plugged in	IP 67
Corrosion-resistant according to	DIN EN 6988
Halogenfree
Short-term temperature peaks	125

Certifications and Standards

UR recognized
cUR recognized
CSA certified
cUR category control number	ECBT8
UL category control number	ECBT2
TÜV certified
Product standard according to IEC	IEC 61984
UR certification	according to UL 1977 (CCN: ECBT2 / e-file number: E75770), according to UL 50E
cUR certification	according to CSA C22.2 No. 182.3 (CCN: ECBT8 / e-file number: E75770)
VDE registration number	B437
CE marked
VDE certified

Documentation

Downloads

approval ul epic - en-UK (PDF)

approval vde epic - de-DE (PDF)

CE declaration of conformity - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

operation instruction - de-DE (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
