EPIC MCS 3 COAX MALE MODULE

Name: EPIC MCS 3 COAX MALE MODULE
Brand: LAPP
SKU: 10399200
Price: 145284 VND
Availability: OutOfStock

MC module modular system; Number of contacts: 3; Required slots: 1; 250 V AC rms / DC according to IEC;

LAPPSKU: 10399200Article No.#: 10399200

MC module modular system; Number of contacts: 3; Required slots: 1; 250 V AC rms / DC according to IEC;

145.284₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

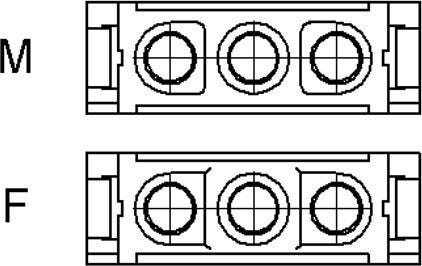

Module for accommodating 3 coaxial contacts for high-frequency signal transmission

Modular connectors offer a wide range of possible combinations and can be assembled flexibly - even to create hybrid connectors for different media

Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics)

Snaps effortlessly into the matching module frame

UL certification according to technical data enables the product to be used on the North American market.

Applications

For the production of a modular connector

Can be used universally at machine interfaces for many applications for data and signal transmission in the high-frequency range

For use with the rectangular connector module frames of the EPIC® MC series

For use with many EPIC® rectangular connector housings.

Technical Attributes

General Information

Electrical Characteristics

Rated voltage	250 V AC rms / DC according to IEC
Protective conductor integrated into insert

Product Design

Product Characteristics

Flame-retardant
Pollution degree	3
Operating temperature min.	-40
Flame retardance according to	UL 94 V-0
Operating temperature max.	100
Halogenfree
Short-term temperature peaks	125

Certifications and Standards

Tested for fire protection for railway vehicles
TÜV certified
Product standard according to IEC	IEC 61984
UR recognized
cUR recognized
CSA certified
CE marked
VDE certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
