EPIC MCS 10 CG MALE MODULE

Name: EPIC MCS 10 CG MALE MODULE
Brand: LAPP
SKU: 10383400
Price: 52002 VND
Availability: OutOfStock

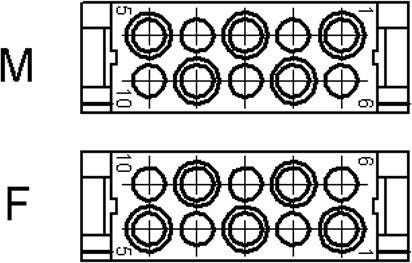

MC module modular system; Crimp termination; Number of contacts: 10; Required slots: 1; For cross-section (min./max.): 0.14mm² - 2.5mm²; 250 V AC rms / DC according to IEC; 10 A according to IEC

LAPPSKU: 10383400Article No.#: 10383400

EPIC MCS 10 CG MALE MODULE

MC module modular system; Crimp termination; Number of contacts: 10; Required slots: 1; For cross-section (min./max.): 0.14mm² - 2.5mm²; 250 V AC rms / DC according to IEC; 10 A according to IEC

EPIC MCS 10 CG MALE MODULE

52.002₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Module for accommodating 10 power contacts and for power supplies up to 10 A and voltages up to 250 V

Especially for use with punched crimp contacts

Modular connectors offer a wide range of possible combinations and can be assembled flexibly - even to create hybrid connectors for different media

Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics)

Snaps effortlessly into the matching module frame

Different crimp contacts available for different conductor cross-sections

UL certification according to technical data enables the product to be used on the North American market.

Applications

For the production of a modular connector

For connecting devices and machines to a power supply in various applications

For use with the rectangular connector module frames of the EPIC® MC series

For use with many EPIC® rectangular connector housings.

Technical Attributes

General Information

Brand	EPIC®
Contacts included
Product type	MC module modular system
Scope of delivery	Order contacts separately
Installation type	clip on
Delivery Unit	10.000
Weight	0.009 kg

Electrical Characteristics

Rated current	10 A according to IEC
Protective conductor integrated into insert
Rated voltage	250 V AC rms / DC according to IEC, 600 V AC rms / DC according to UL/CSA
Max. contact resistance	2

Product Design

EMC screening
With wire protection
Colour	black
Connectable conductor cross section min. (AWG)	26 AWG
Insert material, short form	PA
Max. connectable conductor cross-section AWG	14 AWG
Min. connectable conductor cross-section (mm2)	0.14
Number of contacts	10
With protective conductor
Max. connectable conductor cross-section (mm2)	2.5
Contact insert type	Plug
Number of PE contacts	0
Number of data contacts	0
Conductor connection type	Crimp termination
Insert material	Polyamide
Required slots	1
Screen contact
Number of signal contacts	0
Number of power contacts	0

Product Characteristics

Flame-retardant
Operating temperature min.	-40
Operating temperature max.	100
Min. number of insertion cycles	100
Pollution degree	3
Flame retardance according to	UL 94 V-0
Halogenfree
Short-term temperature peaks	125

Certifications and Standards

UR recognized
cUR recognized
CSA certified
cUR category control number	ECBT8
UL category control number	ECBT2
Tested for fire protection for railway vehicles
TÜV certified
Product standard according to IEC	IEC 61984
UR certification	according to UL 1977 (CCN: ECBT2 / e-file number: E75770)
cUR certification	according to CSA C22.2 No. 182.3 (CCN: ECBT8 / e-file number: E75770)
CE marked
VDE certified

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
