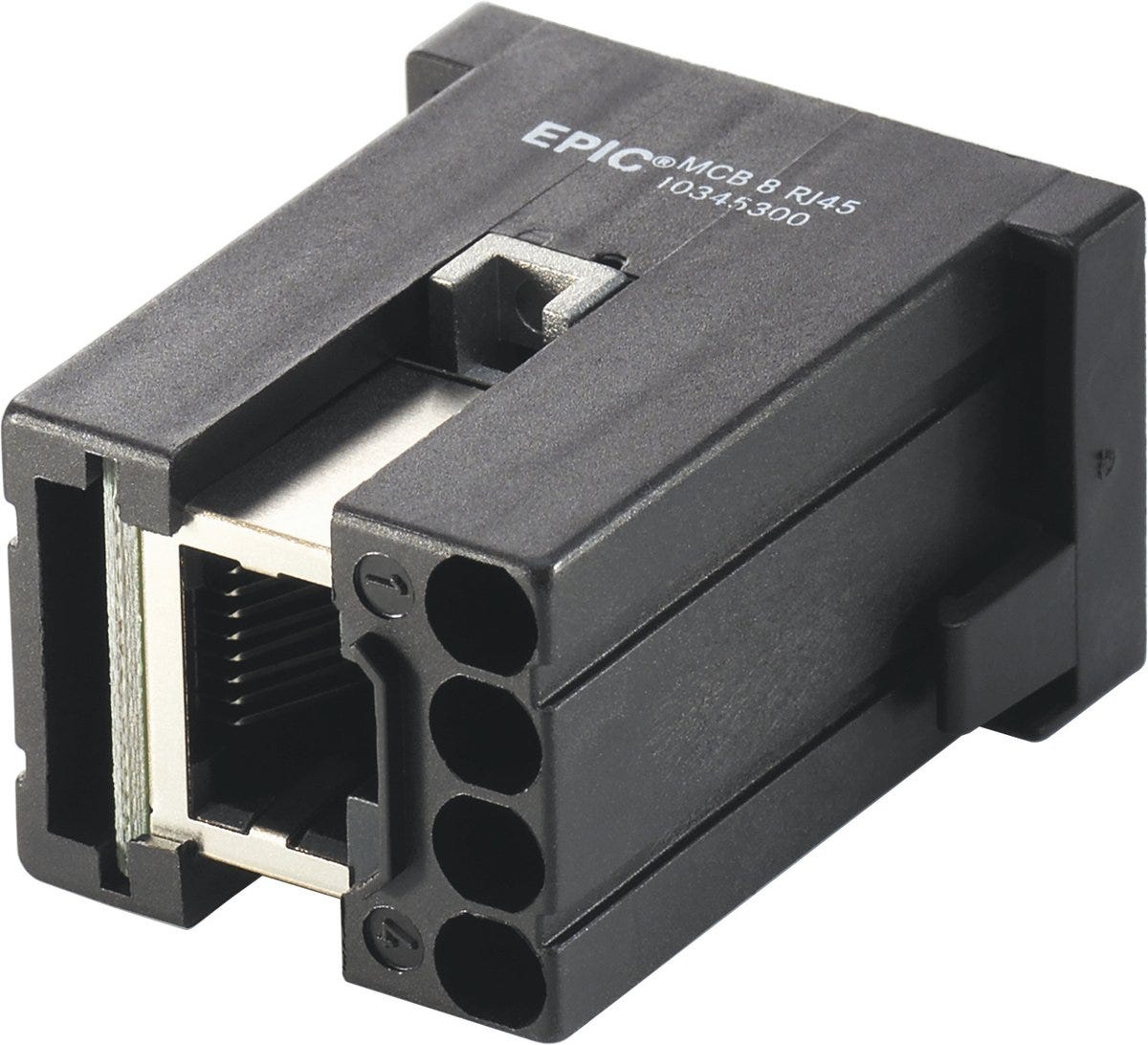

EPIC® MCB 8 RJ45 INDUSTRIAL ETHERNET

Name: EPIC® MCB 8 RJ45 INDUSTRIAL ETHERNET
Brand: LAPP
SKU: 10345300
Price: 1142059 VND
Availability: OutOfStock

MC module modular system; Crimp termination; Number of contacts: 12+PE; Required slots: 2; For cross-section (min./max.): 0.14mm² - 2.5mm²;

LAPPSKU: 10345300Article No.#: 10345300

MC module modular system; Crimp termination; Number of contacts: 12+PE; Required slots: 2; For cross-section (min./max.): 0.14mm² - 2.5mm²;

1.142.059₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

Hybrid module for accommodating an RJ45 connector and also for accommodating 4 power contacts for power supply up to 10 A

Modular connectors offer a wide range of possible combinations and can be assembled flexibly - even to create hybrid connectors for different media

Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics)

Snaps effortlessly into the matching module frame

Different crimp contacts available for different conductor cross-sections.

Applications

For the production of a modular connector

Universally applicable for data transmission in LAN networks and Ethernet applications

SAlso suitable for the power supply of smaller connected devices

For use with the rectangular connector module frames of the EPIC® MC series

For use with many EPIC® rectangular connector housings.

Technical Attributes

General Information

Electrical Characteristics

Rated voltage power contact	600 V AC rms / DC according to IEC to 4
Protective conductor integrated into insert
Rated current power contact	10 A according to IEC

Product Design

Contact insert type	Socket
Number of PE contacts	1
Number of data contacts	8
Conductor connection type	Crimp termination
EMC screening
Insert material	Polyamide
With wire protection
Colour	black
Connectable conductor cross section min. (AWG)	26 AWG
Insert material, short form	PA
Max. connectable conductor cross-section AWG	16 AWG
Min. connectable conductor cross-section (mm2)	0.14
Number of contacts	12+PE
Required slots	2
Screen contact
Number of signal contacts	0
With protective conductor
Max. connectable conductor cross-section (mm2)	2.5
Number of power contacts	4

Product Characteristics

Flame-retardant
Min. number of insertion cycles	100
Pollution degree	3
Operating temperature min.	-20
Flame retardance according to	UL 94 V-0
Operating temperature max.	85
Halogenfree

Certifications and Standards

Tested for fire protection for railway vehicles
TÜV certified
Product standard according to IEC	IEC 61984
UR recognized
cUR recognized
CSA certified
CE marked
VDE certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
