EPIC® H-BVE 10 SS DR

Name: EPIC® H-BVE 10 SS DR
Brand: LAPP
SKU: 10270010
Price: 698868 VND
Availability: OutOfStock

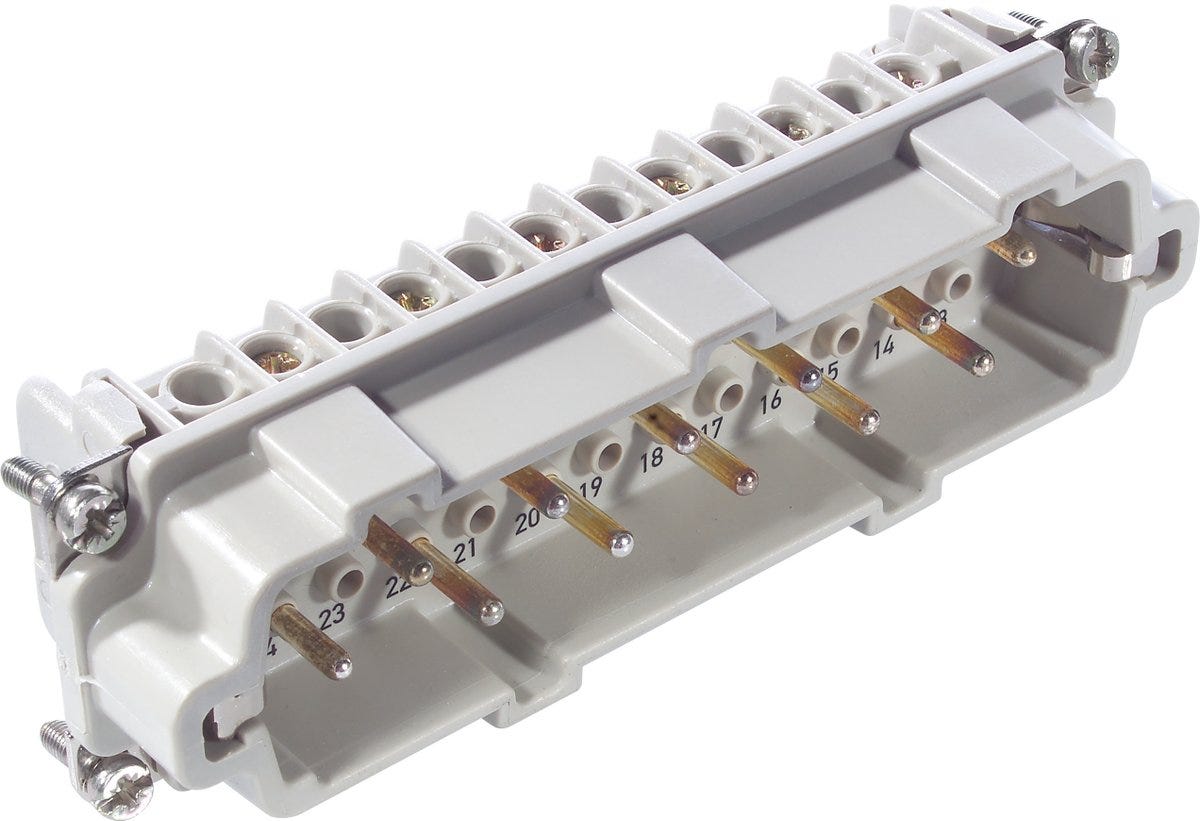

Insert with screw connection Pin; Number of contacts: 13; Design size: 24B; 630 V AC rms / DC according to IEC; 16 A according to UL/CSA; For cross-section (min./max.): 0.5mm² - 2.5mm²; Contacts included; Polycarbonate

LAPPSKU: 10270010Article No.#: 10270010

EPIC® H-BVE 10 SS DR

EPIC® H-BVE 10 SS DR

698.868₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

With the relevant wiring, the lagging switch contacts interrupt the power supply before the working contacts are separated, These high-voltage inserts are additionally equipped with 2 switching contacts

Applications

Plant engineering, Mechanical engineering

Technical Attributes

General Information

Brand	EPIC®
Contacts included
Product type	Insert with screw connection
Design size	24B
Delivery Unit	5.000
Weight	0.085 kg

Electrical Characteristics

Rated current	16 A according to UL/CSA, 16 A according to IEC
Protective conductor integrated into insert
Over voltage category	III
Rated impulse voltage	6 kV AC rms / DC according to IEC 61984
Rated voltage	630 V AC rms / DC according to IEC, 600 V AC rms / DC according to UL, 600 V AC rms / DC according to CSA
Max. contact resistance	2

Product Design

EMC screening
With wire protection
Colour	grey
Connectable conductor cross section min. (AWG)	20 AWG
Max. connectable conductor cross-section AWG	14 AWG
Min. connectable conductor cross-section (mm2)	0.5
Number of contacts	13
Contact material	Brass
With protective conductor
Max. connectable conductor cross-section (mm2)	2.5
Contact material, short form	CuZn
Contact insert type	Plug
Material contact surface	Silver-plated
Contact insert material, short form	PC
PE connection type	Screw connection
Contact variant	Pin
Contact coating material, short form	Ag
Connector type	Plug
Material contact insert	Polycarbonate
Contact manufacturing method	Machined
Number of PE contacts	1
Conductor connection type	Screw connection
Contact insert without contacts
Contact diameter	2.5
Number of signal contacts	2
Number of power contacts	10

Product Characteristics

Flame-retardant
Minimum tightening torque for PE connection	1.2
Acid-resistant
Chemical resistant
UV-resistant
Operating temperature min.	-40
Maximum tightening torque for PE connection	1.2
Operating temperature max.	100
Min. number of insertion cycles	100
Suitable for EX-applications
Impact-resistant
Pollution degree	3
Vibration protection
Flame retardance according to	UL 94 V-0
Halogenfree
Short-term temperature peaks	125

Certifications and Standards

UR recognized
cUR recognized
CSA certified
Fire protection for railway vehicles hazard level	EN 45545-2 HL1, EN 45545-2 HL2, EN 45545-2 HL3
cUR category control number	ECBT8
UL category control number	ECBT2
Tested for fire protection for railway vehicles
TÜV certified
Product standard according to IEC	IEC 61984
UR certification	according to UL 1977 (e-file number: E75770)
cUR certification	according to CSA C22.2 No. 182.3 (e-file number: E75770)
VDE registration number	B437
CE marked
VDE certified
EAC certification number	Отказное письмо № 39
EAC-certified	Not required

Documentation

Downloads

approval ul epic - en-UK (PDF)

approval vde epic - de-DE (PDF)

CE declaration of conformity - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

trcu declaration of conformity - ru-RU (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
