H-B Q+E CODING SET

Name: H-B Q+E CODING SET
Brand: LAPP
SKU: 10028000
Price: 52002 VND
Availability: OutOfStock

Coding element;

LAPPSKU: 10028000Article No.#: 10028000

H-B Q+E CODING SET

Coding element;

H-B Q+E CODING SET

52.002₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Benefits

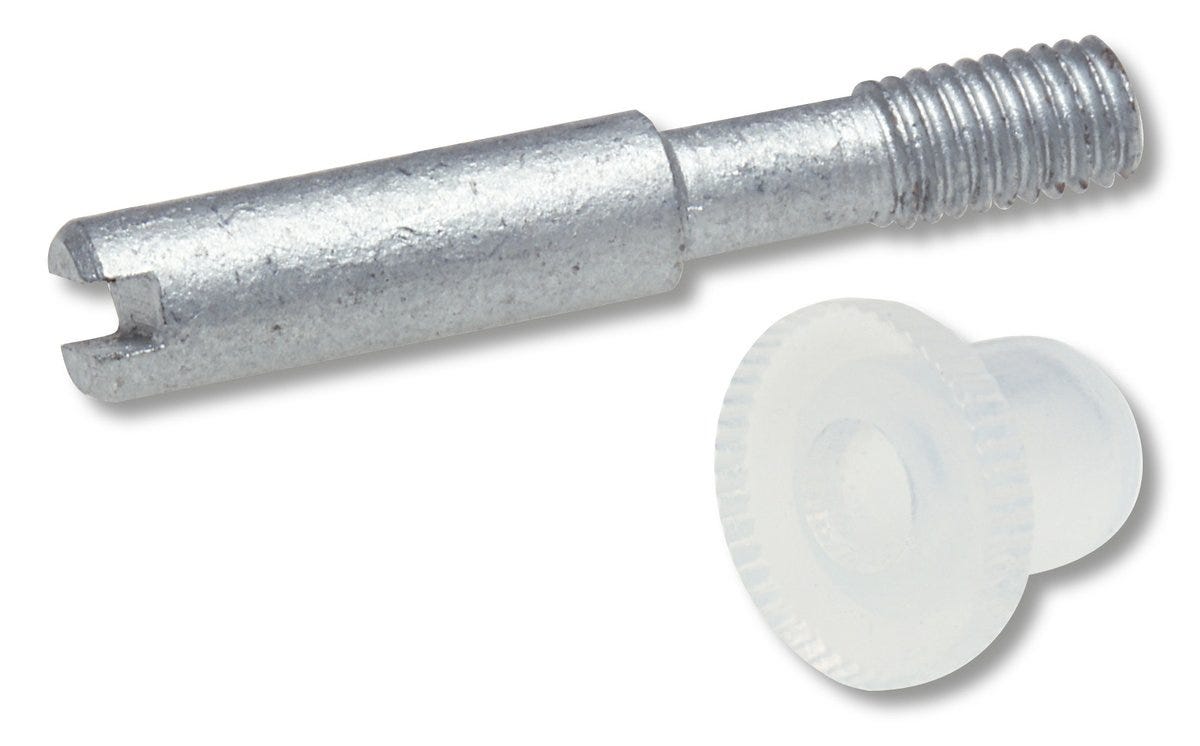

Coding set with large packaging unit, consisting of coding pin and coding bolt

For simple and clear identification of connector inserts with an identical number of poles but different assignments or functions

Coding pins are used for mechanical coding of the connector face and prevent mismating with the mating connector

Coding pins are used for mechanical coding of the connector insert and prevent mismating with the mating connector

Coding pins are placed in the pin insert and pressed in with a screwdriver (the corresponding contact positions in the opposite socket insert must be kept free)

Coding bolts replace one or more fastening screws of the connector insert.

Applications

For use with the EPIC® QUICK & EASY mounting system and the EPIC® H-B series rectangular connector housings.

Technical Attributes

General Information

Brand	EPIC®
Product type	Coding element
Delivery Unit	50.000
Weight	0.002 kg

Electrical Characteristics

Product Design

Product Characteristics

Certifications and Standards

CE marked

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
