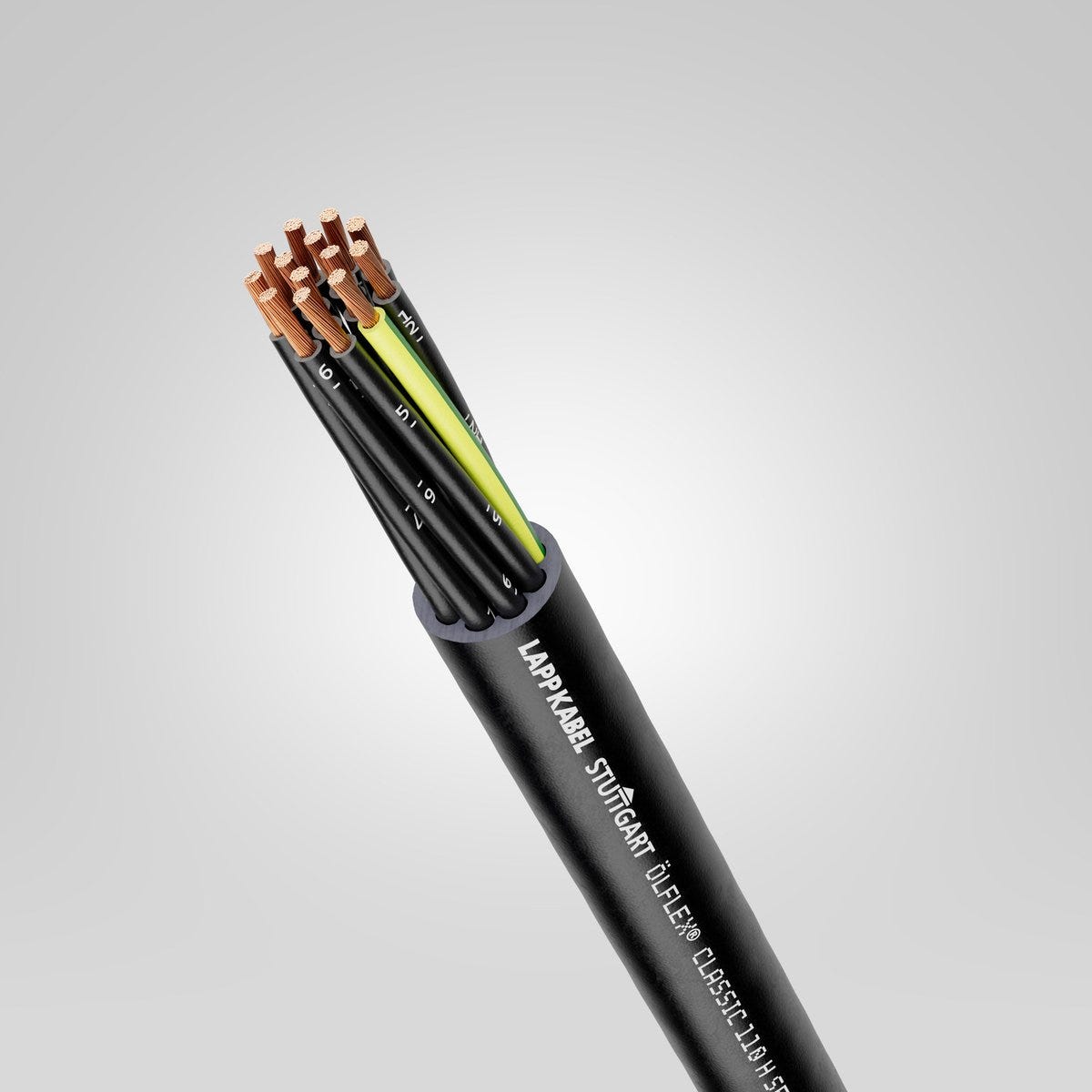

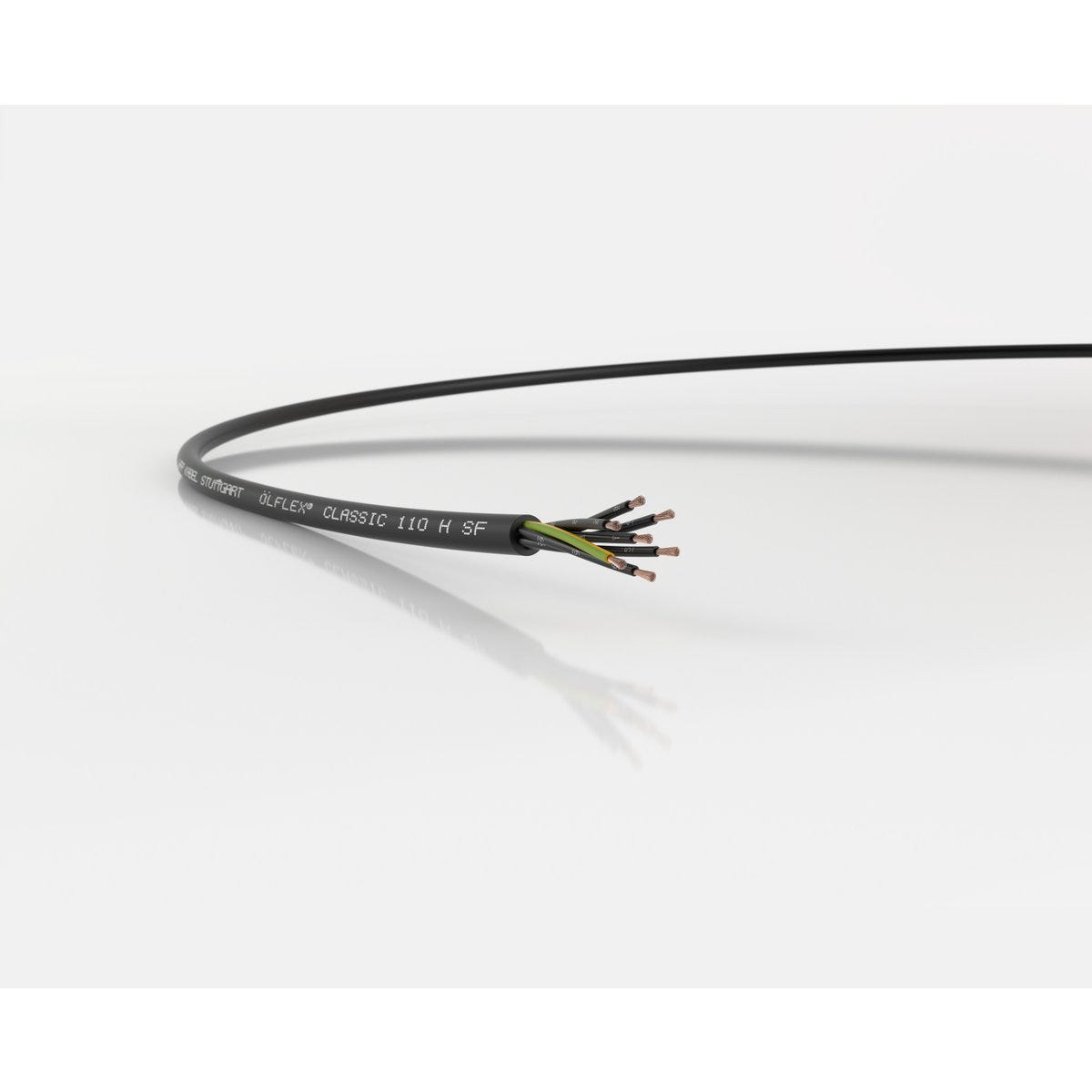

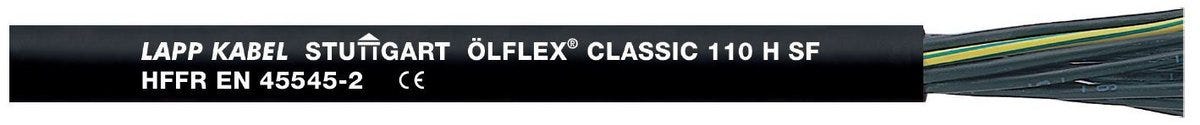

ÖLFLEX® CLASSIC 110 H SF 3G1

Name: ÖLFLEX® CLASSIC 110 H SF 3G1
Brand: LAPP
SKU: 1002141
Price: 116667 VND
Availability: OutOfStock

Power and control cable; 3G1; U₀/U: 300/500 V; HFFR; Core identification: Numbers; Flexible

LAPPSKU: 1002141Article No.#: 1002141

Power and control cable; 3G1; U₀/U: 300/500 V; HFFR; Core identification: Numbers; Flexible

116.667₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Easy handling and installation due to very flexible design

High electrical safety thanks to 4,000 V test voltage

High oil resistance according to DIN EN 50363-4-1 (TM5).

Applications

For building cabling that needs to meet special fire safety requirements

For universal use for wiring of cross-plant control circuits and control circuits inside machines

Compliant with standards for use in railway vehicles (fire behaviour test according to DIN EN 45545-2:2016-02, hazard levels HL1, HL2 and HL3)

Can be used in dry and damp environments

Suitable for medium mechanical stress

The HFFR outer sheath is highly resistant to acids and alkalis

Suitable for outdoor use, subject to the temperature range

Flexible use up to -30°C possible.

Technical Attributes

General Information

Electrical Characteristics

Nominal voltage	U₀/U: 300/500 V AC rms according to IEC
Max. conductor resistance at 20°C	19.5 Ω/km
Inductance (800 Hz), approx.	0.669
Test voltage	4 kV
Conductor/conductor operating capacitance (800Hz), approx.	69

Product Design

Conductor design	IEC 60228 class 6: extra-fine wire
Nominal outer diameter	6.1 mm
Conductor material	Bare copper
Nominal conductor cross-section (metric)	1 mm²
Cable dimension	3G1
Shielded
Core identification	Numbers
Shape of cable	Round
Outer sheath colour	black
Stranding type	Layered stranding
Number of cores	3
Core insulation basic material	Halogen-free compound
Basic material of outer sheath	Halogen-free compound
Including protective earth
Core insulation basic material, short form	HFFR
Basic material of outer sheath, short form	HFFR

Product Characteristics

Flame-retardant
Halogen-free according to	IEC 60754-1
Corrosiveness of combustion gases according to	IEC 60754-2
Ozone-resistant according to	EN 50396, method B
Chemical resistant
Ozone resistant
UV-resistant
Minimum bending radius in mm, fixed installation	24.4 mm
Application area	Flexible, Fixed installation
max. conductor temperature, occasionally moved	-30 °C to 70 °C max. conductor temperature:
Low smoke density according to	IEC 61034-2
Oil-resistant
Low toxicity of combustion gases according to	NES 02-713 (≤ 3), EN 50306-1 (≤ 3)
Minimum bending radius in mm, occasionally flexing	61.0 mm
Minimum bending radius, stationary	4 x outer diameter
Minimum bending radius, occasionally flexing	10 x outer diameter
Temperature, fixed installation	-40 °C to 80 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2, IEC 60332-3-25
Oil resistance according to	EN 50363-4-1: TM5
UV-resistant according to	DIN EN ISO 4892-2 method A, EN 50620
For torsional load
Halogenfree

Certifications and Standards

DNV-certified
cUR recognized
CSA certified
Fire protection for railway vehicles hazard level	EN 45545-2 HL1, EN 45545-2 HL2, EN 45545-2 HL3
Tested for fire protection for railway vehicles
cUL listed
Flame retardance tested according to UN/ECE-R118
UL listed
CE marked
UL recognized
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20
EAC-certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
