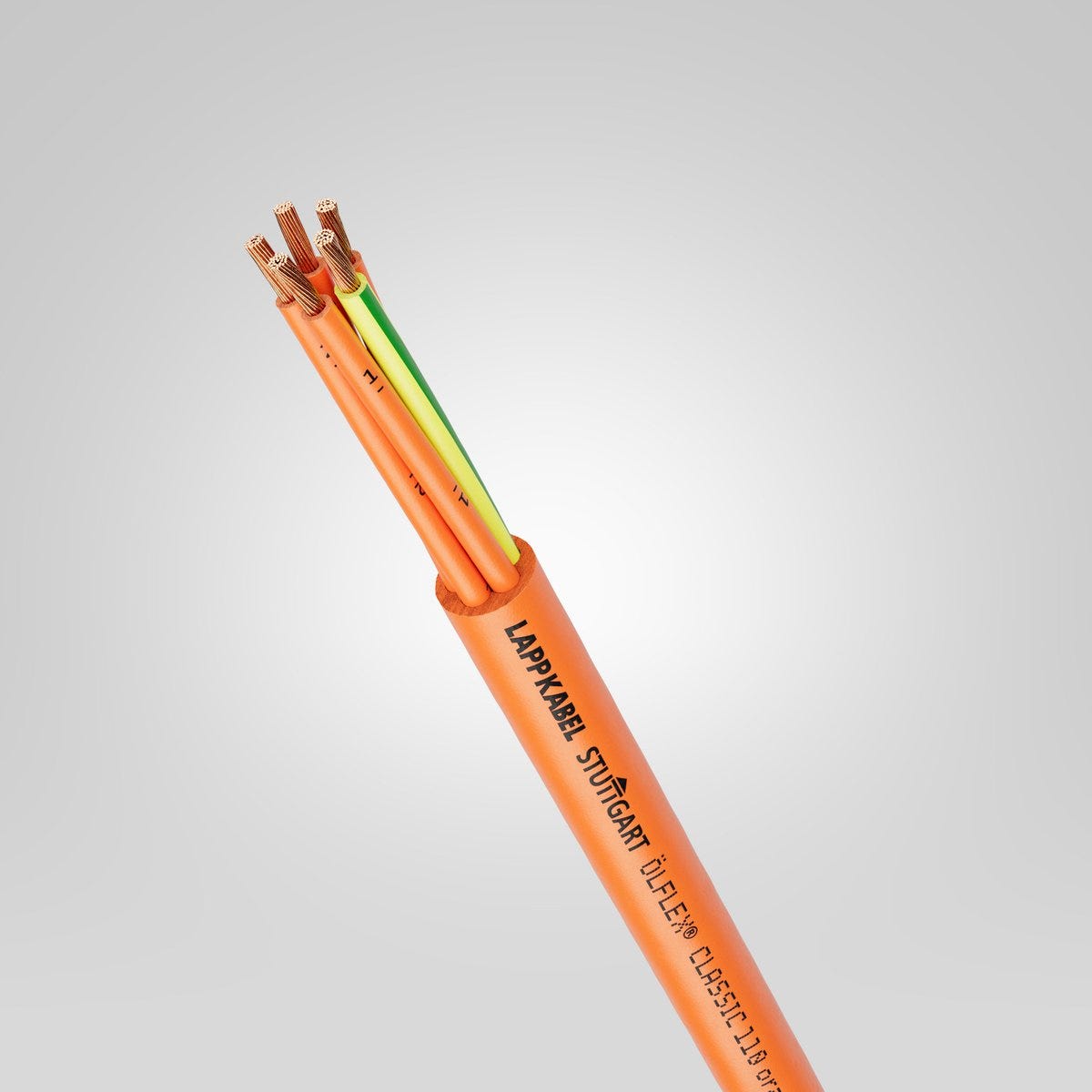

ÖLFLEX® CLASSIC 110 Orange 4X1

Name: ÖLFLEX® CLASSIC 110 Orange 4X1
Brand: LAPP
SKU: 0019708
Price: 60757 VND
Availability: OutOfStock

Power and control cable; 4X1; U₀/U: 300/500 V; PVC; Core identification: Numbers; Flexible

LAPPSKU: 0019708Article No.#: 0019708

Power and control cable; 4X1; U₀/U: 300/500 V; PVC; Core identification: Numbers; Flexible

60.757₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

Cores and outer sheath are orange for warning purposes

Space-saving due to reduced wall thicknesses

High electrical safety thanks to 4000 V test voltage

High-quality alternative to control cable types YSLY or YY

Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection on the LAPP website.

Applications

For warning purposes in exempted circuits, including locking circuits, according to DIN EN 60204-1 (VDE 0113-1)

Cable design also suitable for torsion applications in wind turbines

For fixed installation and occasional flexing without tensile strain

Can be used in dry and damp rooms

Suitable for medium mechanical stress

The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance.

Technical Attributes

General Information

Electrical Characteristics

Nominal voltage	U₀/U: 300/500 V AC rms according to IEC
Max. conductor resistance at 20°C	19.5 Ω/km
Inductance (800 Hz), approx.	0.669
Test voltage	4 kV
Conductor/conductor operating capacitance (800Hz), approx.	117

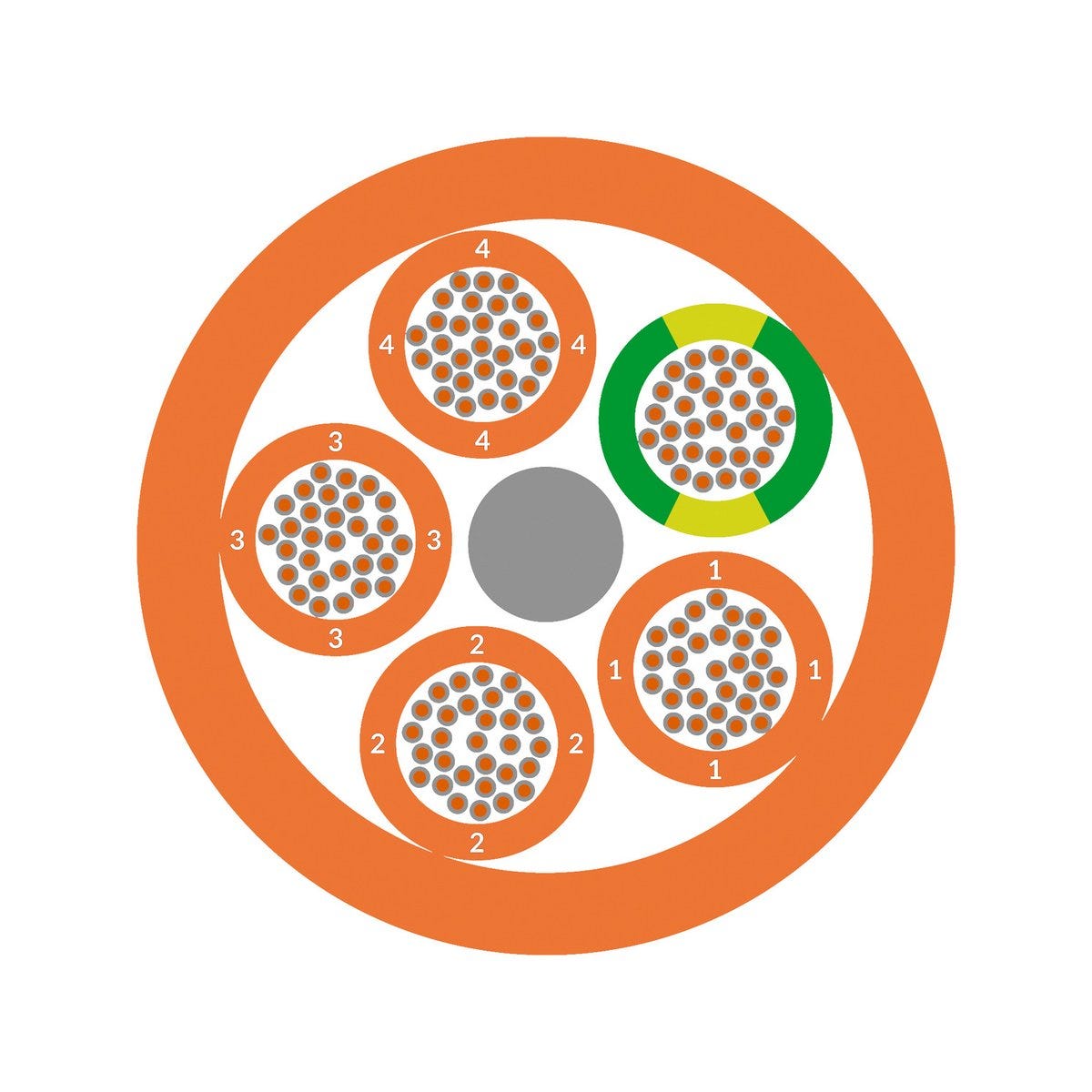

Product Design

Conductor design	IEC 60228 class 5: fine-wire
Nominal outer diameter	6.5 mm
Conductor material	Bare copper
Nominal conductor cross-section (metric)	1 mm²
Cable dimension	4X1
Shielded
Core identification	Numbers
Shape of cable	Round
Outer sheath colour	orange
Stranding type	Layered stranding
Conductor colour code	VDE 0293-1, EN 50334
Number of cores	4
Core insulation basic material	Polyvinylchloride
Basic material of outer sheath	Polyvinylchloride
Including protective earth
Core insulation basic material, short form	PVC
With armouring
Basic material of outer sheath, short form	PVC

Product Characteristics

Flame-retardant
PWIS-free according to	VDMA 24364-B2-L
For continuous flexing
Chemical resistant
UV-resistant
Minimum bending radius in mm, fixed installation	26.0 mm
PWIS-free
Application area	Flexible, Fixed installation
max. conductor temperature, occasionally moved	-5 °C to 70 °C max. conductor temperature:
Oil-resistant
Minimum bending radius in mm, occasionally flexing	97.5 mm
Minimum bending radius, stationary	4 x outer diameter
Minimum bending radius, occasionally flexing	15 x outer diameter
Temperature, fixed installation	-40 °C to 80 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2
Torsion	for +/- 150 °/m and min. 5 °C up to 5000 Torsion cycles, for +/- 150 °/m and min. -20 °C up to 2000 Torsion cycles
For torsional load
Halogenfree

Certifications and Standards

DNV-certified
Ecolab certified
Flame retardance tested according to UN/ECE-R118
CE marked
CPR fire class	Eca
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20
EAC-certified

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

Article number	Number of cores	Including protective conductor	Conductor cross-section (mm2)	Nominal outer diameter	Weight
0019700	2	No	1	5.7	57 kg/km
0019701	3	Yes	1	6	73 kg/km
0019702	3	No	1	6	73 kg/km
0019706	4	Yes	1	6.5	85 kg/km
0019708	4	No	1	6.5	85 kg/km
0019709	5	Yes	1	7.1	105 kg/km
0019710	2	No	1.5	6.3	77 kg/km
0019711	3	Yes	1.5	6.7	87 kg/km
0019718	4	Yes	1.5	7.2	117 kg/km
0019720	5	Yes	1.5	8.1	114 kg/km
