202060AA+40250126 CIRCULAR COMBIN.

Name: 202060AA+40250126 CIRCULAR COMBIN.
Brand: LAPP
SKU: 00009005
Price: 2114962 VND
Availability: OutOfStock

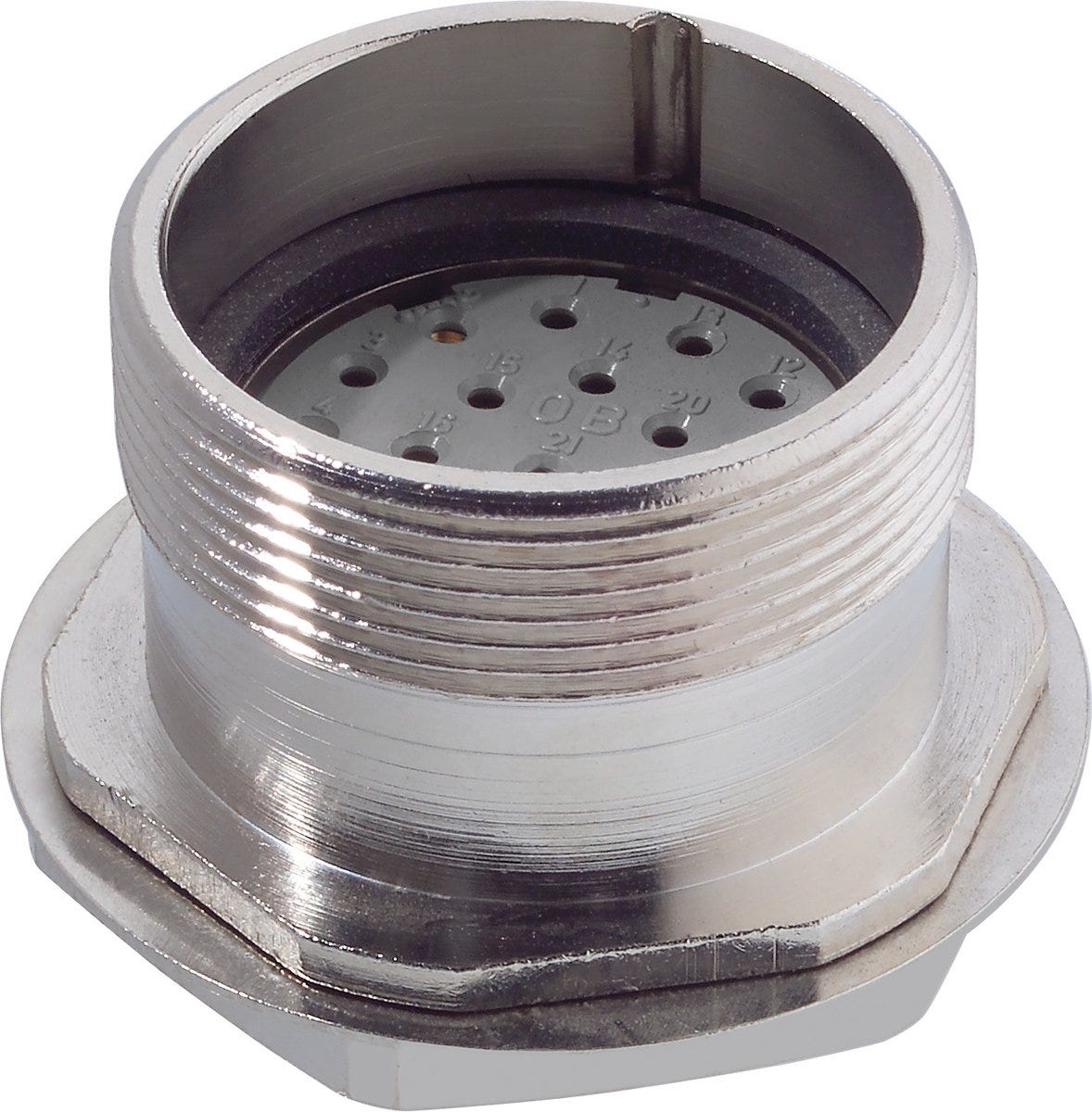

Panel-mount base; M 27; M 25; N-coded; Socket; Number of contacts: 26; For cross-section (min./max.): 0.08mm² - 1.0mm²;

LAPPSKU: 00009005Article No.#: 00009005

Panel-mount base; M 27; M 25; N-coded; Socket; Number of contacts: 26; For cross-section (min./max.): 0.08mm² - 1.0mm²;

2.114.962₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

highest contact density at small space requirements, Connector in solder version for easy maintanance

Applications

Machine and equipment manufacturing, Measurement and control technology

Technical Attributes

General Information

Electrical Characteristics

Rated current	7.5 A according to IEC
Over voltage category	III
Rated impulse voltage	1.5 kV AC rms / DC according to IEC 61984
Rated voltage	24 V AC rms according to IEC, 60 V DC according to IEC
Max. contact resistance	3

Product Design

Design connector housing	Straight
Connector format	M 27
Thread type	Metric
EMC screening
Thread size	M 25
Overall width	33.5
Colour	black
Housing colour	silver
Connectable conductor cross section min. (AWG)	32 AWG
Direction of rotation	P-part (rotating anticlockwise-turning)
Max. connectable conductor cross-section AWG	18 AWG
Min. connectable conductor cross-section (mm2)	0.08
Number of contacts	26
Total height	24
Stripping length, signal contact	4 mm
Housing coating	Nickel-plated
Contact material	Brass
With protective conductor
Coding type	N-coded
Max. connectable conductor cross-section (mm2)	1.0
Housing coating, short form	Ni
Contact material, short form	CuZn
Material contact surface	Gold-plated
Seal type	Sealing ring
Coded
Contact variant	Socket
Contact coating material, short form	Au
Connector type	Socket
Conductor connection type	Solder termination
Housing base material	Brass
With thread
Housing base material, short form	CuZn
Locking type	Screw Thread
Screen contact
Number of signal contacts	26
Sealing material	Elastomer

Product Characteristics

Corrosion-resistant
Operating temperature min.	-40
Operating temperature max.	100
Min. number of insertion cycles	500
Impact-resistant
Pollution degree	3
Vibration protection
IP protection class plugged in	IP 67
Corrosion-resistant according to	DIN EN 6988
Protection class (IP), mounted	IP 20
Halogenfree
Short-term temperature peaks	125

Certifications and Standards

UR recognized
cUR recognized
CSA certified
Product standard according to IEC	IEC 61984
CE marked
VDE certified
EAC certification number	Отказное письмо № 39
EAC-certified	Not required

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

Article number	Number of contacts	Contact variant	Delivery Unit	Direction of rotation
00009005	26	Socket	5.000	P-part (rotating anticlockwise-turning)
00009057	21	Socket	5.000	P-part (rotating anticlockwise-turning)
00009371	21	Pin	5.000	E-part (rotating clockwise)
00009894	26	Pin	5.000	E-part (rotating clockwise)
