SKINDICHT® E PG 48 INCISED SEAL

Name: SKINDICHT® E PG 48 INCISED SEAL
Brand: LAPP
SKU: 52005800
Price: 76041 VND
Availability: OutOfStock

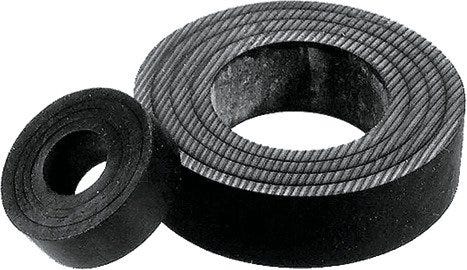

Incised sealing ring; PG 48; Inner diameter: 36.0mm40.0mm44.0mm47.0mm50.5mm; Chloroprene rubber; black

LAPPSKU: 52005800Article No.#: 52005800

Incised sealing ring; PG 48; Inner diameter: 36.0mm40.0mm44.0mm47.0mm50.5mm; Chloroprene rubber; black

76.041₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

One seal for several clamping ranges, Rings can be individually adapted to various cable diameters

Applications

Incised sealing ring for SKINDICHT® cable glands

Technical Attributes

General Information

Electrical Characteristics

Product Design

Product Characteristics

Flame-retardant
Oil-resistant
UV-resistant
Temperature (max.)	80
Temperature (min.)	-20
Suitable for EX-applications
Halogenfree

Certifications and Standards

Ecolab certified
CE marked

Documentation

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.

Product Family List

Article number	Thread size	Inner diameter	Outer diameter	Delivery Unit
52003690	PG 11	7.0, 10.0, 12.5	16.5	250.000
52003700	PG 13,5	7.0, 10.5, 13.0, 16.0	18.5	250.000
52003710	PG 16	8.0, 10.5, 13.0, 16.0	20.5	250.000
52003720	PG 21	11.0, 15.0, 18.0, 20.0	26	100.000
52003730	PG 29	18.0, 23.0, 27.0, 31.0	35	100.000
52003740	PG 36	24.0, 28.0, 31.0, 35.0	45	50.000
52005780	PG 9	5.0, 8.0	13.5	250.000
52005790	PG 42	30.0, 35.5, 39.0, 42.5, 46.0	52	50.000
52005800	PG 48	36.0, 40.0, 44.0, 47.0, 50.5	57	50.000
