X05V-K 2CHELIX 1X1 BUGN

Name: X05V-K 2CHELIX 1X1 BUGN
Brand: LAPP
SKU: 4512243S
Price: 23368 VND
Availability: OutOfStock

Single core; 1X1; blue/green; Spool; U₀/U: 300/500 V; PVC; Fixed installation

LAPPSKU: 4512243SArticle No.#: 4512243S

X05V-K 2CHELIX 1X1 BUGN

Single core; 1X1; blue/green; Spool; U₀/U: 300/500 V; PVC; Fixed installation

X05V-K 2CHELIX 1X1 BUGN

23.368₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

The two-colour spiral allows the cable to be identified quickly in a small space

Compact design for easy processing

Versatile use in various applications and environments

Different core insulation colours available

Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR) with article number selection on the LAPP website.

Applications

For wiring circuits inside machines

For wiring lighting

For fixed and protected installation

Can be used for open installation into cable conduits for equipotential bonding

Suitable for use at temperatures up to -40°C.

Technical Attributes

General Information

Product type	Single core
Length per PU	250
Single core packaging type	Spool
Copper index	9.600 kg/km
Copper index (lb)	64.510 lb
Weight	15 kg/km

Electrical Characteristics

Nominal voltage	U₀/U: 300/500 V AC rms according to IEC
Max. conductor resistance at 20°C	19.5 Ω/km
Test voltage	2 kV
Current rating according to	VDE 0298-4

Product Design

Shape of cable	Round
Single core colour	blue/green

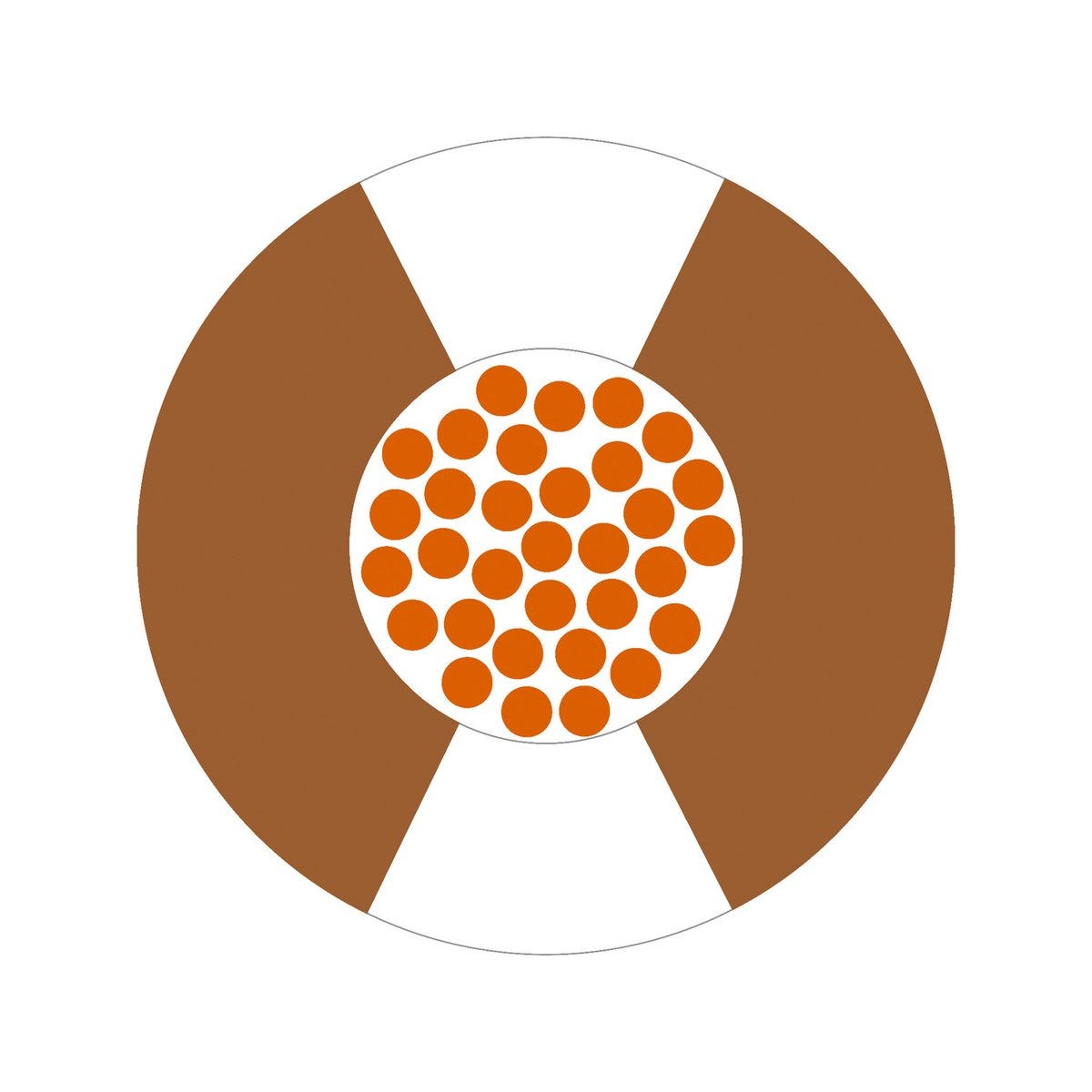

Conductor design	IEC 60228 class 5: fine-wire
Conductor material	Bare copper
Min. outer diameter	2.4
Number of cores	1
Nominal conductor cross-section (metric)	1 mm²
Cable dimension	1X1
Core insulation basic material	Polyvinylchloride
Single core identification	Helix, two-coloured
Core insulation basic material, short form	PVC
Max. outer diameter	2.8

Product Characteristics

Flame-retardant
Application area	Fixed installation
Oil-resistant
Max. storage temperature	40
Minimum bending radius with careful bending	2 x outer diameter
Max. assembly temperature	70
Storage temperature min.	5
weather resistant
Ozone resistant
Installation temperature min.	5
UV-resistant
Minimum bending radius, stationary	4 x outer diameter
Temperature, fixed installation	-40 °C to 70 °C max. conductor temperature:
Flame retardance according to	IEC 60332-1-2
Minimum bending radius in mm, fixed installation	11.2 mm
PWIS-free
Halogenfree

Certifications and Standards

HAR-certified
Flame retardance tested according to UN/ECE-R118
CE marked
CPR fire class	Eca
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.АЮ64.В.00142/20
EAC-certified

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

trcu declaration of conformity - ru-RU (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Trade product, not a LAPP product.

Product Family List

All articles from X05V-K with twin colour helix insulation

Article number	Conductor cross-section (mm2)	Single core colour	Single core packaging type	Length per PU	Min. outer diameter	Max. outer diameter	Weight
4512202S	0.75	black/green	Spool	250	2.2	2.7	13 kg/km
4512203S	1	black/green	Spool	250	2.4	2.8	15 kg/km
4512211S	0.5	black/red	Spool	250	2.1	2.5	10 kg/km
4512212S	0.75	black/red	Spool	250	2.2	2.7	13 kg/km
4512213S	1	black/red	Spool	250	2.4	2.8	15 kg/km
4512221S	0.5	black/white	Spool	250	2.1	2.5	9 kg/km
4512222S	0.75	black/white	Spool	250	2.2	2.7	13 kg/km
4512223S	1	black/white	Spool	250	2.4	2.8	15 kg/km
4512231S	0.5	blue/black	Spool	250	2.1	2.5	11 kg/km
4512232S	0.75	blue/black	Spool	250	2.2	2.7	13 kg/km
4512233S	1	blue/black	Spool	250	2.4	2.8	16 kg/km
4512241S	0.5	blue/green	Spool	250	2.1	2.5	10 kg/km
4512242S	0.75	blue/green	Spool	250	2.2	2.7	13 kg/km
4512243S	1	blue/green	Spool	250	2.4	2.8	15 kg/km
4512251S	0.5	blue/red	Spool	250	2.1	2.5	11 kg/km
4512252K	0.75	blue/red	Large cardboard box	2500	2.2	2.7	13 kg/km
4512252S	0.75	blue/red	Spool	250	2.2	2.7	13 kg/km
4512253S	1	blue/red	Spool	250	2.4	2.8	16 kg/km
4512261K	0.5	blue/white	Large cardboard box	3000	2.1	2.5	25 kg/km
4512261S	0.5	blue/white	Spool	250	2.1	2.5	11 kg/km
4512262S	0.75	blue/white	Spool	250	2.2	2.7	13 kg/km
4512263S	1	blue/white	Spool	250	2.4	2.8	16 kg/km
4512271S	0.5	brown/black	Spool	250	2.1	2.5	10 kg/km
4512272S	0.75	brown/black	Spool	250	2.2	2.7	13 kg/km
4512273S	1	brown/black	Spool	250	2.4	2.8	15 kg/km
4512281S	0.5	brown/green	Spool	250	2.1	2.5	10 kg/km
4512283S	1	brown/green	Spool	250	2.4	2.8	15 kg/km
4512291S	0.5	brown/white	Spool	250	2.1	2.5	10 kg/km
4512292S	0.75	brown/white	Spool	250	2.2	2.7	13 kg/km
4512293S	1	brown/white	Spool	250	2.4	2.8	15 kg/km
4512301S	0.5	yellow/black	Spool	250	2.1	2.5	10 kg/km
4512302S	0.75	yellow/black	Spool	250	2.2	2.7	13 kg/km
4512303S	1	yellow/black	Spool	250	2.4	2.8	15 kg/km
4512311S	0.5	yellow/red	Spool	250	2.1	2.5	10 kg/km
4512312S	0.75	yellow/red	Spool	250	2.2	2.7	13 kg/km
4512313S	1	yellow/red	Spool	250	2.4	2.8	15 kg/km
4512321S	0.5	yellow/white	Spool	250	2.1	2.5	10 kg/km
4512322S	0.75	yellow/white	Spool	250	2.2	2.7	13 kg/km
4512323S	1	yellow/white	Spool	250	2.4	2.8	15 kg/km
4512332S	0.75	green/black	Spool	250	2.2	2.7	13 kg/km
4512333S	1	green/black	Spool	250	2.4	2.8	15 kg/km
4512341S	0.5	green/white	Spool	250	2.1	2.5	10 kg/km
4512342S	0.75	green/white	Spool	250	2.2	2.7	13 kg/km
4512343S	1	green/white	Spool	250	2.4	2.8	15 kg/km
4512351S	0.5	violet/black	Spool	250	2.1	2.5	10 kg/km
4512352S	0.75	violet/black	Spool	250	2.2	2.7	13 kg/km
4512353S	1	violet/black	Spool	250	2.4	2.8	15 kg/km
4512363S	1	violet/yellow	Spool	250	2.4	2.8	15 kg/km
4512371S	0.5	violet/white	Spool	250	2.1	2.5	10 kg/km
4512372S	0.75	violet/white	Spool	250	2.2	2.7	13 kg/km
4512373S	1	violet/white	Spool	250	2.4	2.8	15 kg/km
4512381S	0.5	orange/black	Spool	250	2.1	2.5	10 kg/km
4512382S	0.75	orange/black	Spool	250	2.2	2.7	13 kg/km
4512383S	1	orange/black	Spool	250	2.4	2.8	15 kg/km
4512391S	0.5	orange/white	Spool	250	2.1	2.5	10 kg/km
4512392S	0.75	orange/white	Spool	250	2.2	2.7	13 kg/km
4512393K	1	orange/white	Large cardboard box	2000	2.4	2.8	15 kg/km
4512393S	1	orange/white	Spool	250	2.4	2.8	15 kg/km
4512401S	0.5	red/black	Spool	250	2.1	2.5	10 kg/km
4512402S	0.75	red/black	Spool	250	2.2	2.7	13 kg/km
4512403S	1	red/black	Spool	250	2.4	2.8	15 kg/km
4512412S	0.75	red/yellow	Spool	250	2.2	2.7	13 kg/km
4512413S	1	red/yellow	Spool	250	2.4	2.8	15 kg/km
4512421S	0.5	red/white	Spool	250	2.1	2.5	10 kg/km
4512422S	0.75	red/white	Spool	250	2.2	2.7	13 kg/km
4512423K	1	red/white	Large cardboard box	2000	2.4	2.8	15 kg/km
4512423S	1	red/white	Spool	250	2.4	2.8	16 kg/km
4512431S	0.5	white/black	Spool	250	2.1	2.5	9 kg/km
4512432S	0.75	white/black	Spool	250	2.2	2.7	13 kg/km
4512433S	1	white/black	Spool	250	2.4	2.8	15 kg/km
4512441S	0.5	white/blue	Spool	250	2.1	2.5	12 kg/km
4512442S	0.75	white/blue	Spool	250	2.2	2.7	13 kg/km
4512443S	1	white/blue	Spool	250	2.4	2.8	17 kg/km
4512451S	0.5	white/brown	Spool	250	2.1	2.5	10 kg/km
4512452S	0.75	white/brown	Spool	250	2.2	2.7	13 kg/km
4512453S	1	white/brown	Spool	250	2.4	2.8	15 kg/km
4512461S	0.5	white/red	Spool	250	2.1	2.5	10 kg/km
4512462S	0.75	white/red	Spool	250	2.2	2.7	13 kg/km
4512463S	1	white/red	Spool	250	2.4	2.8	15 kg/km
4512471S	0.5	grey/black	Spool	250	2.1	2.5	10 kg/km
4512472S	0.75	grey/black	Spool	250	2.2	2.7	13 kg/km
4512473S	1	grey/black	Spool	250	2.4	2.8	15 kg/km
4512921S	0.5	dark blue/white	Spool	250	2.1	2.5	10 kg/km
4512922S	0.75	dark blue/white	Spool	250	2.2	2.7	13 kg/km
4512923S	1	dark blue/white	Spool	250	2.4	2.8	15 kg/km
