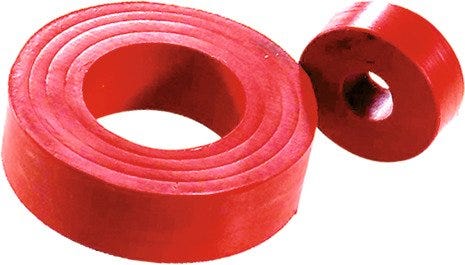

SKINDICHT® EV PG 16 INCISED SEAL RING
Incised sealing ring; PG 16; Inner diameter: 8.0mm
SKINDICHT® EV PG 16 INCISED SEAL RING
114.489₫
/
SKINDICHT® EV PG 16 INCISED SEAL RING
114.489₫
/
In stock (1437)
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
heat resistance
cold resistance
flame-retardant
oil resistant
uv-resistant.
Benefits
One seal for several clamping ranges, Rings can be individually adapted to various cable diameters, For high temperatures, Resistant to oils, solvents, acids and chemicals
Applications
Incised sealing ring made of FKM for SKINDICHT® cable glands
Disclaimer
LAPP products must be selected, installed and maintained by qualified electrical personnel in compliance with applicable regulations and standards. Incorrect selection or installation may cause electric shock, fire or damage. Always check the official datasheet before use; information and images on this website are for reference only and may change without notice. To the extent permitted by law, LAPP Vietnam is not liable for damage caused by improper use or installation. See our General Terms and Conditions for details.
Technical Attributes
General Information
| Product type | Incised sealing ring |
| Packaging type | Bag |
| Brand | SKINDICHT® |
| Delivery Unit | 50.000 |
| Weight | 0.004 kg |
Electrical Characteristics
Product Design
| Colour | red |
| Seal type | Incised sealing ring |
| Inner diameter | 8.0, 10.5, 13.5, 16.0 |
| Number of cable entries | 1 |
| Total height | 7.5 |
| Sealing material, short form | FKM |
| Thread size | PG 16 |
| Sealing material | Fluorinated rubber |
| Outer diameter | 20.5 |
Product Characteristics
| Flame-retardant |
|
| Oil-resistant |
|
| UV-resistant |
|
| Temperature (max.) | 200 |
| Temperature (min.) | -20 |
| For use in hazardous areas |
|
| Halogen-free |
|
Certifications and Standards
| Ecolab certified |
|
| CE marking |
|
Documentation
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
