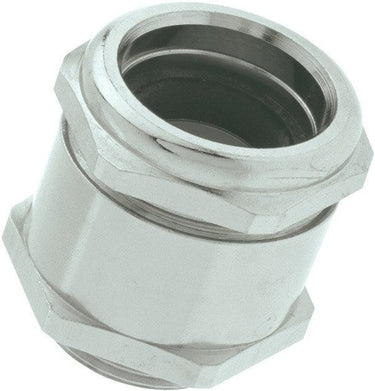

SKINDICHT® SHVE PG 21/21/16/13
Cable gland; PG 21; Clamping range (min./max.): 14 - 15.8 mm; Spanner size 1: 30; Brass Nickel-plated; UV-resistant; IP 67, IP 66, IP 65, IP 68 - 10 bar; EMC shielding
SKINDICHT® SHVE PG 21/21/16/13
SKINDICHT® SHVE PG 21/21/16/13
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product characteristics
oil resistant
uv-resistant.
icon sturgeon signal
Certificate
CE marked
Benefits
Optimum, low-resistance 360° screen contact, High degree of protection, High strain relief
Applications
Earthing gland, for applications where electrical interference fields can occur
Medical engineering, Frequency converters, Airports, Measurement and control technology
