SKINDICHT® EV PG 11 INCISED SEAL RING

Name: SKINDICHT® EV PG 11 INCISED SEAL RING
Brand: LAPP
SKU: 52010340
Price: 80911 VND
Availability: OutOfStock

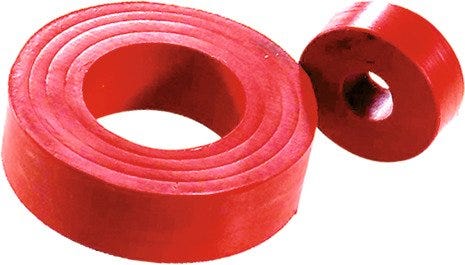

Incised sealing ring; PG 11; Inner diameter: 7.0mm10.0mm12.5mm; Fluorinated rubber; red

LAPPSKU: 52010340Article No.#: 52010340

SKINDICHT® EV PG 11 INCISED SEAL RING

Incised sealing ring; PG 11; Inner diameter: 7.0mm10.0mm12.5mm; Fluorinated rubber; red

SKINDICHT® EV PG 11 INCISED SEAL RING

80.911₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Benefits

One seal for several clamping ranges, Rings can be individually adapted to various cable diameters, For high temperatures, Resistant to oils, solvents, acids and chemicals

Applications

Incised sealing ring made of FKM for SKINDICHT® cable glands

Technical Attributes

General Information

Product type	Incised sealing ring
Packaging type	Bag
Brand	SKINDICHT®
Delivery Unit	50.000
Weight	0.002 kg

Electrical Characteristics

Product Design

Colour	red
Seal type	Incised sealing ring
Inner diameter	7.0, 10.0, 12.5
Number of cable entries	1
Total height	6
Sealing material, short form	FKM
Thread size	PG 11
Sealing material	Fluorinated rubber
Outer diameter	16.5

Product Characteristics

Flame-retardant
Oil-resistant
UV-resistant
Temperature (max.)	200
Temperature (min.)	-20
Suitable for EX-applications
Halogenfree

Certifications and Standards

Ecolab certified
CE marked

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Package insert - de-DE (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
