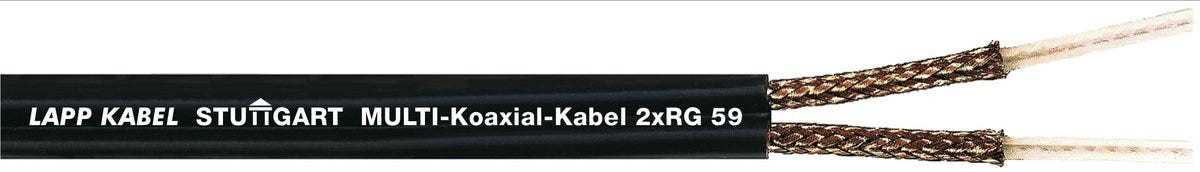

MULTI-KOAXIAL-KABEL 2XRG 59 B/U

Name: MULTI-KOAXIAL-KABEL 2XRG 59 B/U
Brand: LAPP
SKU: 2170056
Price: 112356 VND
Availability: OutOfStock

Coaxial cables; RG 59 B/U; Nominal characteristic impedance: 75; PVC; 0.57 mm; Fixed Installation; black

LAPPSKU: 2170056Article No.#: 2170056

MULTI-KOAXIAL-KABEL 2XRG 59 B/U

Coaxial cables; RG 59 B/U; Nominal characteristic impedance: 75; PVC; 0.57 mm; Fixed Installation; black

MULTI-KOAXIAL-KABEL 2XRG 59 B/U

112.356₫

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Applications

Do not install cables that are meant to be placed in ducts or for direct burial in areas exposed to fire hazards, External cables for telecommunication and data processing systems

Technical Attributes

General Information

Product type	Coaxial cables
Copper index	50.000 kg/km
Copper index (lb)	335.986 lb
Weight	116 kg/km

Electrical Characteristics

Nominal characteristic impedance tolerance	+/- 3Ω
Nominal surge impedance	75

Product Design

Outer conductor	Copper braiding
Outer sheath colour	black
Nominal outer diameter	6.15 mm
Type of coaxial cables	RG 59 B/U
With rodent protection
Dielectric, short form	PE
Optical degree of coverage of outer conductor	95
Conductor count/size	2
Basic material of outer sheath	Polyvinylchloride
Including protective earth
Inner conductor material	Copper-plated steel
Shielded
Number of wires	1
Nominal conductor diameter (mm)	0.57
Basic material of outer sheath, short form	PVC

Product Characteristics

Flame-retardant
Application area	Fixed installation
Oil-resistant
For continuous flexing
Minimum bending radius in mm, occasionally flexing	123.0 mm
Fast Connect (FC) cable
UV-resistant
Minimum bending radius, stationary	6 x outer diameter
Minimum bending radius, occasionally flexing	20 x outer diameter
Minimum bending radius in mm, fixed installation	36.9 mm
Halogenfree

Certifications and Standards

CE marked
VDE certified
EAC certification number	ЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.РА01.В.47116/21
EAC-certified

Documentation

Downloads

CE declaration of conformity - en-UK (PDF)

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

trcu declaration of conformity - ru-RU (PDF)

Further Links

EPLAN Data in EPLAN Data Portal

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
